YSS SUSPENSION Rear suspension shock absorber TOPLINE 1049415

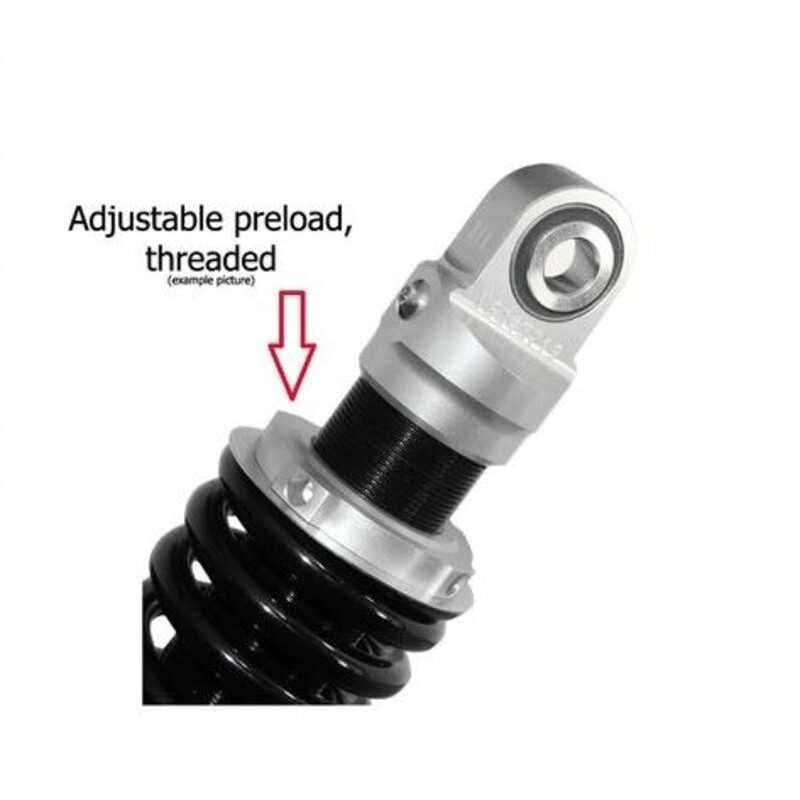

Preload adjustment by thread or screw.

Thanks to the threading of the cylindrical shocks, the user can turn the preload to adjust the spring, as well as tighten a bolt - which is supplied - to fix the ring.

Adjustable rebound to optimize damping control.

Fast or slow, depending on the needs of the pilot. It has been designed to include a knob volume control rod.

Oil bleeds freely through hole and knob. And the rebound is designed to detect the adjustment made with the selector. Adjustable length.

Allows to increase the length of the shock absorber. Adjustable length of +/- 5?mm.

DIÁMETRO DEL PISTÓN (MM): 45
DIÁMETRO DEL EJE (MM): 16
LENGTH (MM): 325-335


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
YAMAHA TRACER 900 ABS (RN29) 850 2015-2016
YAMAHA TRACER 900 ABS (RN43) 850 2017
YAMAHA TRACER 900 ABS (RN57) 850 2018-2020
YAMAHA TRACER 900 GT ABS (RN57) 850 2018-2020
