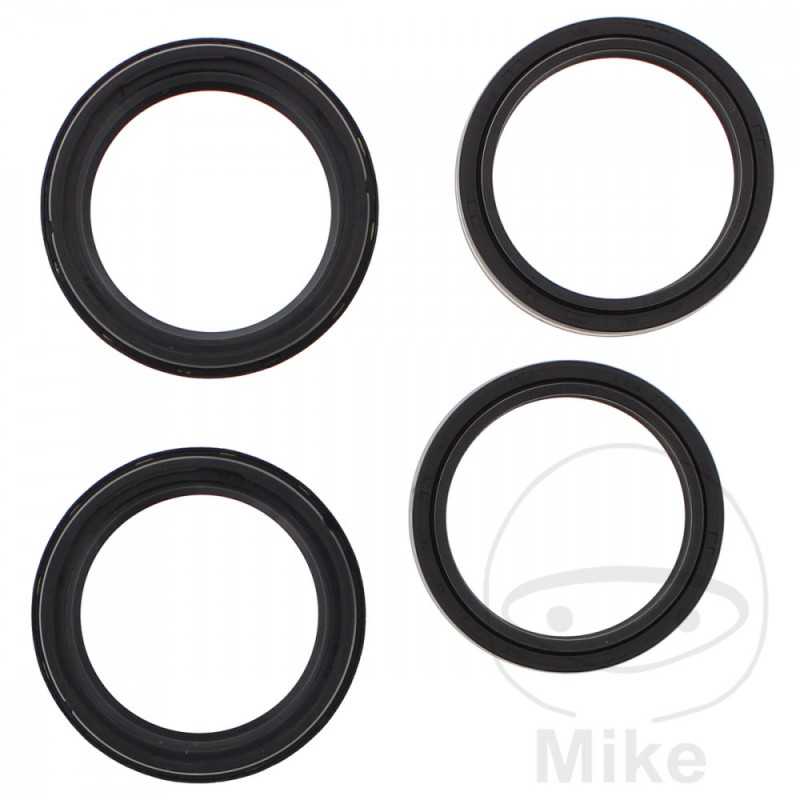

TOURMAX Fork seals and dust covers 46 X 58 9.5/11.5 MM 734.24.66

Tourmax Dust Cap Fork Seal Set

Made in Japan
INNER DIAMETER: 46MM
OUTER DIAMETER: 58MM
INSTALLATION HEIGHT: 9.5/11.5 MM
OVERALL HEIGHT: 11.5MM
DUST CAP: YES


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CR 125 R 41 CV, 30 KW 1CIL. JE01A 1 BASTIDORES: JH2 JE01A-1M500001-- 2001
HONDA CR 125 R 41 CV, 30 KW 1CIL. JE01A 2 BASTIDORES: JH2 JE01A-2M600001-JH2 JE01A-2M699999 2002
HONDA CR 125 R 41 CV, 30 KW 1CIL. JE01A 3 BASTIDORES: JH2 JE01A-3M700001-JH2 JE01A-3M799999 2003
HONDA CR 125 R 41 CV, 30 KW 1CIL. JE01A 4 BASTIDORES: JH2 JE01A-4M800001-JH2 JE01A-4M899999 2004
HONDA CR 125 R 41 CV, 30 KW 1CIL. JE01A V BASTIDORES: JE01A-VM100001-- 1997
HONDA CR 125 R 41 CV, 30 KW 1CIL. JE01A W BASTIDORES: JE01A-WM200001-- 1998
HONDA CR 125 R 41 CV, 30 KW 1CIL. JE01A X BASTIDORES: JE01A-XM300001-- 1999
HONDA CR 125 R 41 CV, 30 KW 1CIL. JE01A Y BASTIDORES: JH2 JE01A-YM400001-- 2000
HONDA CR 125 R 42 CV, 31 KW 1CIL. JE01A 5 BASTIDORES: JH2 JE01A-5M900001-JH2 JE01A-5M999999 2005
HONDA CR 125 R 42 CV, 31 KW 1CIL. JE01A 6 BASTIDORES: JH2 JE01A-6M000001-JH2 JE01A-6M099999 2006
HONDA CR 125 R 42,6 CV, 31,3 KW 1CIL. JE01A 7 BASTIDORES: JH2 JE01A-7M100001-- 2007
HONDA CR 250 R 56 CV, 41 KW 1CIL. ME03A T BASTIDORES: JH2 ME03A-TM000001-- 1996
HONDA CR 500 R 65 CV, 48 KW 1CIL. PE02A 1 BASTIDORES: JH2 PE02A-1M500001-- 2001
HONDA CR 500 R 65 CV, 48 KW 1CIL. PE02A T BASTIDORES: JH2 PE02A-TM000001-- 1996
HONDA CR 500 R 65 CV, 48 KW 1CIL. PE02A V BASTIDORES: JH2 PE02A-VM100001-- 1997
HONDA CR 500 R 65 CV, 48 KW 1CIL. PE02A W BASTIDORES: JH2 PE02A-WM200001-JH2 PE02A-WM200434 1998
HONDA CR 500 R 65 CV, 48 KW 1CIL. PE02A X BASTIDORES: JH2 PE02A-XM300001-JH2 PE02A-XM300460 1999
HONDA CR 500 R 65 CV, 48 KW 1CIL. PE02A Y BASTIDORES: JH2 PE02A-YM400001-- 2000
KAWASAKI KX 125 K 39,5 CV, 29 KW 1CIL. KX125K 3 BASTIDORES: KX125K henceforth13001-KX125K-999999 1996
KAWASAKI KX 125 K 39,5 CV, 29 KW 1CIL. KX125K 4 BASTIDORES: KX125K henceforth20001-KX125K-999999 1997
KAWASAKI KX 125 K 39,5 CV, 29 KW 1CIL. KXRKCWA 5 BASTIDORES: KXRKCWA henceforth26001-KXRKCWA-999999 1998
KAWASAKI KX 125 L 39,5 CV, 29 KW 1CIL. KX125LLA 1 BASTIDORES: KX125LLA henceforth00001-KX125LLA-999999 1999
KAWASAKI KX 125 L 39,5 CV, 29 KW 1CIL. KX125LLA 2 BASTIDORES: KX125LLA henceforth09001-KX125LLA henceforth20000 2000
KAWASAKI KX 125 L 39,5 CV, 29 KW 1CIL. KX125LLA 3 BASTIDORES: KX125LLA henceforth20001-KX125LLA henceforth30000 2001
KAWASAKI KX 250 K 2T 53,6 CV, 39,4 KW 1CIL. KX250K 3 BASTIDORES: KX250K henceforth14001-KX250K-999999 1996
KAWASAKI KX 250 K 2T 53,6 CV, 39,4 KW 1CIL. KX250K 4 BASTIDORES: KX250K henceforth20001-KX250K-999999 1997
KAWASAKI KX 250 K 2T 54,6 CV, 40,1 KW 1CIL. KX250K 5 BASTIDORES: KX250K henceforth27001-KX250K-999999 1998
KAWASAKI KX 250 L 2T 54,6 CV, 40,1 KW 1CIL. KX250LLA 1 BASTIDORES: KX250LLA henceforth00001-KX250LLA henceforth11000 1999
KAWASAKI KX 250 L 2T 54,6 CV, 40,1 KW 1CIL. KX250LLA 2 BASTIDORES: KX250LLA henceforth11001-KX250LLA henceforth25000 2000
KAWASAKI KX 250 L 2T 55,5 CV, 40,8 KW 1CIL. KX250LLA 3 BASTIDORES: KX250LLA henceforth25001-KX250LLA henceforth36000 2001
KAWASAKI KX 500 E 64,5 CV, 47,4 KW 1CIL. KX500E 10 BASTIDORES: KX500E henceforth20001-KX500E henceforth23000 1998
KAWASAKI KX 500 E 64,5 CV, 47,4 KW 1CIL. KX500E 11 BASTIDORES: KX500E henceforth23001-KX500E henceforth28000 1999
KAWASAKI KX 500 E 64,5 CV, 47,4 KW 1CIL. KX500E 12 BASTIDORES: KX500E henceforth28001-KX500E henceforth30000 2000
KAWASAKI KX 500 E 64,5 CV, 47,4 KW 1CIL. KX500E 13 BASTIDORES: KX500E henceforth30001-KX500E henceforth32000 2001
KAWASAKI KX 500 E 64,5 CV, 47,4 KW 1CIL. KX500E 14 BASTIDORES: KX500E henceforth32001-KX500E-999999 2002
KAWASAKI KX 500 E 64,5 CV, 47,4 KW 1CIL. KX500E 9 BASTIDORES: KX500E henceforth17001-KX500E henceforth20000 1997
KAWASAKI KX 500 E 64,5 CV, 47,4 KW 1CIL. KX500EEA 15 BASTIDORES: KX500EEA henceforth35001-KX500EEA-999999 2003
SUZUKI RM 250 54 CV, 40 KW 1CIL. RJ18C K1 BASTIDORES: RJ18C-12100001-- 2001
SUZUKI RM 250 54 CV, 40 KW 1CIL. RJ18C K2 BASTIDORES: RJ18C-22100001-- 2002
SUZUKI RM 250 54 CV, 40 KW 1CIL. RJ18C K3 BASTIDORES: RJ18C-32100001-- 2003
YAMAHA TT 600 R 43 CV, 31,5 KW 1CIL. DJ011 5CH1 BASTIDORES: DJ011 henceforth00117-- 1997-1998
YAMAHA TT 600 R 43 CV, 31,5 KW 1CIL. DJ011 5CH2 BASTIDORES: DJ011 henceforth05061-- 1999
YAMAHA TT 600 R 43 CV, 31,5 KW 1CIL. DJ011 5CH3 BASTIDORES: DJ011 henceforth10508-DJ011 henceforth11551 2000
YAMAHA TT 600 R 43 CV, 31,5 KW 1CIL. DJ011 5CH4 BASTIDORES: DJ011 henceforth15004-- 2001-2003
YAMAHA TT 600 RE 42 CV, 31 KW 1CIL. DJ012 5CH5 BASTIDORES: DJ012 henceforth00388-- 2004
YAMAHA WR 250 F 38,7/28,6 CV, 28,5/21 KW 1CIL. CG11W 5PH2 BASTIDORES: CG11W henceforth00101-- 2001
YAMAHA WR 250 F 38,7/28,6 CV, 28,5/21 KW 1CIL. CG11W 5PH6 BASTIDORES: CG11W henceforth04395-- 2002
YAMAHA WR 250 F 38,7/28,6 CV, 28,5/21 KW 1CIL. CG16W 5UM2 BASTIDORES: CG16W henceforth00029-- 2003
YAMAHA WR 250 F 38,7/28,6 CV, 28,5/21 KW 1CIL. CG16W 5UM6 BASTIDORES: CG16W henceforth06110-- 2004
YAMAHA WR 250 R 30,7 CV, 22,6 KW 1CIL. DG201 32D1 BASTIDORES: DG201 henceforth00301-- 2008
YAMAHA WR 250 R 30,7 CV, 22,6 KW 1CIL. DG201 32D5 BASTIDORES: DG201 henceforth03118-- 2009
YAMAHA WR 250 R 30,7 CV, 22,6 KW 1CIL. DG201 32DB BASTIDORES: DG201 henceforth03634-- 2010
YAMAHA WR 250 R 30,7 CV, 22,6 KW 1CIL. DG201 32DF BASTIDORES: DG201 henceforth03912-- 2011
YAMAHA WR 250 R 30,7 CV, 22,6 KW 1CIL. DG201 32DH BASTIDORES: DG201 henceforth04047-- 2012
YAMAHA WR 250 R 30,7 CV, 22,6 KW 1CIL. DG201 32DN BASTIDORES: DG201 henceforth04258-- 2013
YAMAHA WR 250 R 30,7 CV, 22,6 KW 1CIL. DG201 32DT BASTIDORES: DG201 henceforth04517-- 2014
YAMAHA WR 250 R 30,7 CV, 22,6 KW 1CIL. DG201 32DW BASTIDORES: DG201 henceforth04861-- 2015
YAMAHA WR 250 R 30,7 CV, 22,6 KW 1CIL. DG201 BN32 BASTIDORES: DG201 henceforth05363-- 2016
YAMAHA WR 250 X 30,7 CV, 22,6 KW 1CIL. DG202 32D2 BASTIDORES: DG202 henceforth00301-- 2008
YAMAHA WR 250 X 30,7 CV, 22,6 KW 1CIL. DG202 32D6 BASTIDORES: DG202 henceforth02428-- 2009
YAMAHA WR 250 X 30,7 CV, 22,6 KW 1CIL. DG202 32DC BASTIDORES: DG202 henceforth02695-- 2010-2011
YAMAHA WR 250 X 30,7 CV, 22,6 KW 1CIL. DG202 32DJ BASTIDORES: DG202 henceforth02751-- 2012-2013
YAMAHA WR 250 X 30,7 CV, 22,6 KW 1CIL. DG202 32DP BASTIDORES: DG202 henceforth02866-- 2014-2015
YAMAHA WR 400 F 37 CV, 27 KW 1CIL. CH02W 5BF2 BASTIDORES: CH02W henceforth00140-- 1998
YAMAHA WR 400 F 37 CV, 27 KW 1CIL. CH04W 5GS2 BASTIDORES: CH04W henceforth00101-- 1999
YAMAHA WR 400 F 37 CV, 27 KW 1CIL. CH04W 5GS6 BASTIDORES: CH04W henceforth08859-- 2000
YAMAHA WR 400 F 37 CV, 27 KW 1CIL. CH04W 5GS9 BASTIDORES: CH04W henceforth13275-- 2001
YAMAHA WR 400 F 48/36,7 CV, 35,3/27 KW 1CIL. CH04W 5GSA BASTIDORES: CH04W henceforth13901-- 2002
YAMAHA WR 426 F 50,4/37,4 CV, 37,1/27,5 KW 1CIL. CJ02W 5NG2 BASTIDORES: CJ02W henceforth02470-- 2001
YAMAHA WR 426 F 50,4/37,4 CV, 37,1/27,5 KW 1CIL. CJ02W 5NG6 BASTIDORES: CJ02W henceforth04700-- 2002
YAMAHA WR 450 F 52,5/40,8 CV, 38,6/30 KW 1CIL. CJ04W 5TJ2 BASTIDORES: CJ04W henceforth00037-- 2003
YAMAHA WR 450 F 52,5/40,8 CV, 38,6/30 KW 1CIL. CJ04W 5TJ6 BASTIDORES: CJ04W henceforth07153-- 2004
YAMAHA WRZ 250 39 CV, 29 KW 1CIL. - 26U BASTIDORES: --- 2009
YAMAHA YZ 125 39 CV, 29 KW 1CIL. 4SS 4SS1 BASTIDORES: 4SS henceforth00101-- 1996
YAMAHA YZ 125 39 CV, 29 KW 1CIL. 4XM 4XM1 BASTIDORES: 4XM henceforth01464-- 1997
YAMAHA YZ 125 39 CV, 29 KW 1CIL. 4XM 5DH2 BASTIDORES: 4XM henceforth11530-- 1998
YAMAHA YZ 125 39 CV, 29 KW 1CIL. CE03C 5ET2 BASTIDORES: CE03C henceforth00239-- 1999
YAMAHA YZ 125 39 CV, 29 KW 1CIL. CE05C 5HD2 BASTIDORES: CE05C henceforth00239-- 2000
YAMAHA YZ 125 39 CV, 29 KW 1CIL. CE08C 5MV2 BASTIDORES: CE08C henceforth01740-- 2001
YAMAHA YZ 125 39 CV, 29 KW 1CIL. CE09C 5NY2 BASTIDORES: CE09C henceforth00542-- 2002
YAMAHA YZ 125 39 CV, 29 KW 1CIL. CE10C 5UN2 BASTIDORES: CE10C henceforth00344-- 2003
YAMAHA YZ 250 2T 53 CV, 39 KW 1CIL. 4SR 4SR1 BASTIDORES: 4SR henceforth00101-- 1996
YAMAHA YZ 250 2T 53 CV, 39 KW 1CIL. 4XL 4XL1 BASTIDORES: 4XL henceforth01138-- 1997
YAMAHA YZ 250 2T 53 CV, 39 KW 1CIL. 4XL 5DJ2 BASTIDORES: 4XL henceforth10483-- 1998
YAMAHA YZ 250 2T 53 CV, 39 KW 1CIL. CG05C 5CU2 BASTIDORES: CG05C henceforth00242-- 1999
YAMAHA YZ 250 2T 53 CV, 39 KW 1CIL. CG08C 5HC2 BASTIDORES: CG08C henceforth00207-- 2000
YAMAHA YZ 250 2T 53 CV, 39 KW 1CIL. CG08C 5MW2 BASTIDORES: CG08C henceforth21348-- 2001
YAMAHA YZ 250 2T 53 CV, 39 KW 1CIL. CG12C 5NX2 BASTIDORES: CG12C henceforth00185-- 2002
YAMAHA YZ 250 2T 53 CV, 39 KW 1CIL. CG13C 5UP2 BASTIDORES: CG13C henceforth00134-- 2003
YAMAHA YZ 250 F 4T 41,5 CV, 30,5 KW 1CIL. CG10C 5NL2 BASTIDORES: CG10C henceforth04386-- 2001
YAMAHA YZ 250 F 4T 41,5 CV, 30,5 KW 1CIL. CG10C 5SG2 BASTIDORES: CG10C henceforth08691-- 2002
YAMAHA YZ 250 F 4T 42 CV, 31 KW 1CIL. CG14C 5UL2 BASTIDORES: CG14C henceforth00240-- 2003
YAMAHA YZ 400 F 55 CV, 40 KW 1CIL. CH01C 5BE2 BASTIDORES: CH01C henceforth00356-- 1998
YAMAHA YZ 400 F 55 CV, 40 KW 1CIL. CH03C 5GR2 BASTIDORES: CH03C henceforth00322-- 1999
YAMAHA YZ 426 F 58 CV, 43 KW 1CIL. CJ01C 5JG2 BASTIDORES: CJ01C henceforth00101-- 2000
YAMAHA YZ 426 F 58 CV, 43 KW 1CIL. CJ01C 5JG6 BASTIDORES: CJ01C henceforth11432-- 2001
YAMAHA YZ 426 F 58 CV, 43 KW 1CIL. CJ01C 5SF2 BASTIDORES: CJ01C henceforth23164-- 2002
YAMAHA YZ 450 F 60 CV, 44 KW 1CIL. CJ03C 5TA2 BASTIDORES: CJ03C henceforth00710-- 2003
