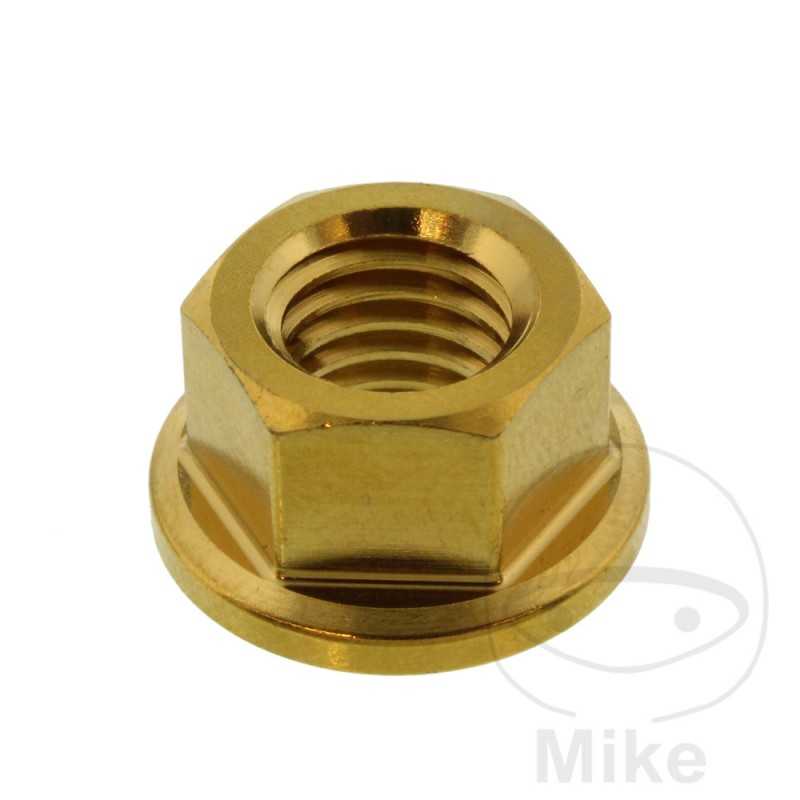

JMP Nut for transmission plate crown screw M10 X 1.50 MM INOX V4A 775.40.80

Sprocket Nut JMP Bolt



A4 stainless steel in gold.



The gold color is applied using a complicated and time consuming process called DLC (Diamond-like-Carbon).

Diamond coatings (carbon coatings) are applied to the screw in multiple layers, making it unique.



Manufactured in 316 stainless steel, which offers the following advantages:



- excellent strength

- Excellent corrosion resistance

- high resistance to acids
TYPE: NUTS WITH COLLAR
FOR THREAD SIZE: M10 X 1.5
FOR SCREWS-Ø: 10.0 MM
SELF-LOCKING: NO
WRENCH WIDTH: 14MM
MATERIAL: A4 STAINLESS STEEL
SURFACE: POLISHED
RESISTANCE CLASS: NO RESISTANCE CLASS
SPECIALTY: OPEN


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia Caponord 1200 ABS 125 CV, 92 kw 2cil. VK000/VK001/VKA00/VKA01 Bastidores: --- 2013-2017
Aprilia Caponord 1200 Rally ABS 125 CV, 92 kw 2cil. VKB000/VKB001 Bastidores: --- 2015-2017
Aprilia Caponord 1200 Travel Pack ABS 125 CV, 92 kw 2cil. VK000/VK001/VKA00/VKA01 Bastidores: --- 2013-2017
Aprilia Dorsoduro 1200 130 CV, 95 kw 2cil. TV000 Bastidores: --- 2011-2013
Aprilia Dorsoduro 1200 ABS ATC 130 CV, 95 kw 2cil. TVA00 Bastidores: --- 2011-2017
Aprilia Dorsoduro 750 SMV 34 CV, 25 kw 2cil. SM000/SMA00/SMC00 Bastidores: --- 2011-2013
Aprilia Dorsoduro 750 SMV 91 CV, 67 kw 2cil. SM000/SMA00/SMC00 Bastidores: --- 2008-2013
Aprilia Dorsoduro 750 SMV ABS 34 CV, 25 kw 2cil. SM000/SMA00/SMC00 Bastidores: --- 2011-2013
Aprilia Dorsoduro 750 SMV ABS 48 CV, 35 kw 2cil. SMC01 Bastidores: --- 2015-2017
Aprilia Dorsoduro 750 SMV ABS 91 CV, 67 kw 2cil. SM000/SMA00/SMC00 Bastidores: --- 2009-2013
Aprilia Dorsoduro 750 SMV ABS 91 CV, 67 kw 2cil. SMC01 Bastidores: --- 2014-2017
Aprilia Dorsoduro 750 SMV Factory 34 CV, 25 kw 2cil. SMB00/SMB01 Bastidores: --- 2011-2013
Aprilia Dorsoduro 750 SMV Factory 91 CV, 67 kw 2cil. SMB00/SMB01 Bastidores: --- 2010-2013
Aprilia Dorsoduro 750 SMV Factory ABS 34 CV, 25 kw 2cil. SMB00/SMB01 Bastidores: --- 2011-2013
Aprilia Dorsoduro 750 SMV Factory ABS 91 CV, 67 kw 2cil. SMB00/SMB01 Bastidores: --- 2010-2013
Aprilia Mana 850 34 CV, 25 kw 2cil. RC000 Bastidores: --- 2007-2010
Aprilia Mana 850 45 CV, 33 kw 2cil. RC000 Bastidores: --- 2011-2012
Aprilia Mana 850 76 CV, 56 kw 2cil. RC000 Bastidores: --- 2007-2012
Aprilia Mana 850 ABS 34 CV, 25 kw 2cil. RCA00 Bastidores: --- 2008-2010
Aprilia Mana 850 ABS 45 CV, 33 kw 2cil. RCA00 Bastidores: --- 2011-2013
Aprilia Mana 850 ABS 76 CV, 56 kw 2cil. RCA00 Bastidores: --- 2008-2013
Aprilia Mana 850 GT ABS 34 CV, 25 kw 2cil. RCC01/RCB00/RCE00 Bastidores: --- 2009-2010
Aprilia Mana 850 GT ABS 45 CV, 33 kw 2cil. RCC01/RCB00/RCE00 Bastidores: --- 2011-2016
Aprilia Mana 850 GT ABS 76 CV, 56 kw 2cil. RCC01/RCB00/RCE00 Bastidores: --- 2009-2016
Aprilia Pegaso 650 ie Strada 34 CV, 25 kw 1cil. VD000 Bastidores: --- 2005-2006
Aprilia Pegaso 650 ie Strada 34 CV, 25 kw 1cil. VDB00 Bastidores: --- 2007-2010
Aprilia Pegaso 650 ie Strada 48 CV, 35 kw 1cil. VD000 Bastidores: --- 2005-2006
Aprilia Pegaso 650 ie Strada 48 CV, 35 kw 1cil. VDB00 Bastidores: --- 2007-2010
Aprilia RSV 1000 Mille 118 CV, 87 kw 2cil. ME000 Bastidores: ZD4ME0000WS000037-ZD4ME0000WS000766 1998-1999
Aprilia RSV 1000 Mille 118 CV, 87 kw 2cil. ME000 Bastidores: ZD4ME0000XS000767-- 2000
Aprilia RSV 1000 Mille 125 CV, 92 kw 2cil. RP000 Bastidores: ZD4RP00001S000001-- 2001-2002
Aprilia RSV 1000 Mille 125 CV, 92 kw 2cil. RP012 Bastidores: ZD4RP01202S000001-- 2003
Aprilia RSV 1000 Mille 98 CV, 72 kw 2cil. MEA00 Bastidores: ZD4MEA000WS000001-ZD4MEA000XS000843 1998-1999
Aprilia RSV 1000 Mille 98 CV, 72 kw 2cil. MEA00 Bastidores: ZD4MEA000XS000845-- 2000
Aprilia RSV 1000 Mille 98 CV, 72 kw 2cil. RP001 Bastidores: ZD4RP00101S000001-- 2001-2002
Aprilia RSV 1000 R 139 CV, 102 kw 2cil. RR000 Bastidores: --- 2004-2005
Aprilia RSV 1000 R 143 CV, 105 kw 2cil. RR000 Bastidores: --- 2007-2010
Aprilia RSV 1000 R 143 CV, 105 kw 2cil. RRK00 Bastidores: --- 2006
Aprilia RSV 1000 R Factory 139 CV, 102 kw 2cil. RR000 Bastidores: --- 2004-2005
Aprilia RSV 1000 R Factory 143 CV, 105 kw 2cil. RRK00 Bastidores: --- 2006-2010
Aprilia RSV 1000 R Mille 118 CV, 87 kw 2cil. ME001 Bastidores: ZD4ME0010XS000001-- 2000
Aprilia RSV 1000 R Mille 125 CV, 92 kw 2cil. RP012 Bastidores: ZD4RP01202S000001-- 2003
Aprilia RSV 1000 R Mille 125 CV, 92 kw 2cil. RPA00 Bastidores: ZD4RPA000YS000006-- 2001-2002
Aprilia RSV 1000 R Mille 98 CV, 72 kw 2cil. MEA01 Bastidores: --- 2000
Aprilia RSV 1000 R Mille 98 CV, 72 kw 2cil. RPA01 Bastidores: ZD4RPA0101S000001-- 2001-2002
Aprilia RSV 1000 R Tuono 125 CV, 92 kw 2cil. RPB00 Bastidores: --- 2003
Aprilia RSV 1000 R Tuono 125 CV, 92 kw 2cil. RPB09 Bastidores: --- 2004-2005
Aprilia RSV 1000 R Tuono Factory 125 CV, 92 kw 2cil. RPB09 Bastidores: --- 2004-2005
Aprilia RSV4 1000 Factory 180 CV, 132 kw 4cil. RK000 Bastidores: --- 2009-2011
Aprilia RSV4 1000 Factory ABS APRC 184 CV, 135 kw 4cil. RKG Bastidores: --- 2013-2015
Aprilia RSV4 1000 Factory APRC 180 CV, 132 kw 4cil. RKB00 Bastidores: --- 2011
Aprilia RSV4 1000 Factory APRC 180 CV, 132 kw 4cil. RKB01 Bastidores: --- 2012-2013
Aprilia RSV4 1000 R 180 CV, 132 kw 4cil. RKA00/RKC01 Bastidores: --- 2010-2013
Aprilia RSV4 1000 R ABS APRC 184 CV, 135 kw 4cil. RKH/RKU04 Bastidores: --- 2013
Aprilia RSV4 1000 R ABS APRC 184 CV, 135 kw 4cil. RKUA4 Bastidores: --- 2014-2015
Aprilia RSV4 1000 R APRC 180 CV, 132 kw 4cil. RKE00 Bastidores: --- 2011
Aprilia RSV4 1000 R APRC 180 CV, 132 kw 4cil. RKE01 Bastidores: --- 2012-2013
Aprilia Shiver 750 GT 34 CV, 25 kw 2cil. RAB00 Bastidores: --- 2009-2013
Aprilia Shiver 750 GT 95 CV, 70 kw 2cil. RAB00 Bastidores: --- 2009-2013
Aprilia Shiver 750 GT ABS 34 CV, 25 kw 2cil. RAD00 Bastidores: --- 2009-2013
Aprilia Shiver 750 GT ABS 95 CV, 70 kw 2cil. RAD00 Bastidores: --- 2009-2013
Aprilia Shiver 750 SL 34 CV, 25 kw 2cil. - Bastidores: --- 2007-2009
Aprilia Shiver 750 SL 34 CV, 25 kw 2cil. RAE00 Bastidores: --- 2010-2013
Aprilia Shiver 750 SL 48 CV, 35 kw 2cil. RAE00 Bastidores: --- 2014-2016
Aprilia Shiver 750 SL 95 CV, 70 kw 2cil. - Bastidores: --- 2007-2009
Aprilia Shiver 750 SL 95 CV, 70 kw 2cil. RAE00 Bastidores: --- 2010-2016
Aprilia Shiver 750 SL ABS 34 CV, 25 kw 2cil. RAA00/RAC Bastidores: --- 2008-2009
Aprilia Shiver 750 SL ABS 34 CV, 25 kw 2cil. RAG00 Bastidores: --- 2010-2013
Aprilia Shiver 750 SL ABS 48 CV, 35 kw 2cil. RAG00 Bastidores: --- 2014-2017
Aprilia Shiver 750 SL ABS 95 CV, 70 kw 2cil. RAA00/RAC Bastidores: --- 2008-2009
Aprilia Shiver 750 SL ABS 95 CV, 70 kw 2cil. RAG00 Bastidores: --- 2010-2017
Aprilia SL 1000 Falco 118 CV, 87 kw 2cil. PA000/PAS00 Bastidores: --- 1999-2004
Aprilia SL 1000 Falco 95 CV, 70 kw 2cil. PA000/PAS00 Bastidores: --- 1999-2004
Aprilia Tuono 1000 R 133 CV, 98 kw 2cil. RR100 Bastidores: --- 2007-2011
Aprilia Tuono 1000 R 133 CV, 98 kw 2cil. RRL00 Bastidores: ZD4RRL0056S000001-- 2006
Aprilia Tuono 1000 R Factory 139 CV, 102 kw 2cil. RR100 Bastidores: --- 2007-2011
Aprilia Tuono 1000 V4 R 167 CV, 123 kw 4cil. TY000 Bastidores: --- 2011-2013
Aprilia Tuono 1000 V4 R ABS APRC 170 CV, 125 kw 4cil. TYB02/TYB03 Bastidores: --- 2013-2014
Aprilia Tuono 1000 V4 R APRC 167 CV, 123 kw 4cil. TY000 Bastidores: --- 2011-2013
Aprilia Tuono 1100 V4 Factory ABS 175 CV, 129 kw 4cil. TYCC1/TYH00 Bastidores: --- 2015-2016
Aprilia Tuono 1100 V4 RR ABS 175 CV, 129 kw 4cil. TYG00/TYCC0 Bastidores: --- 2015-2016
