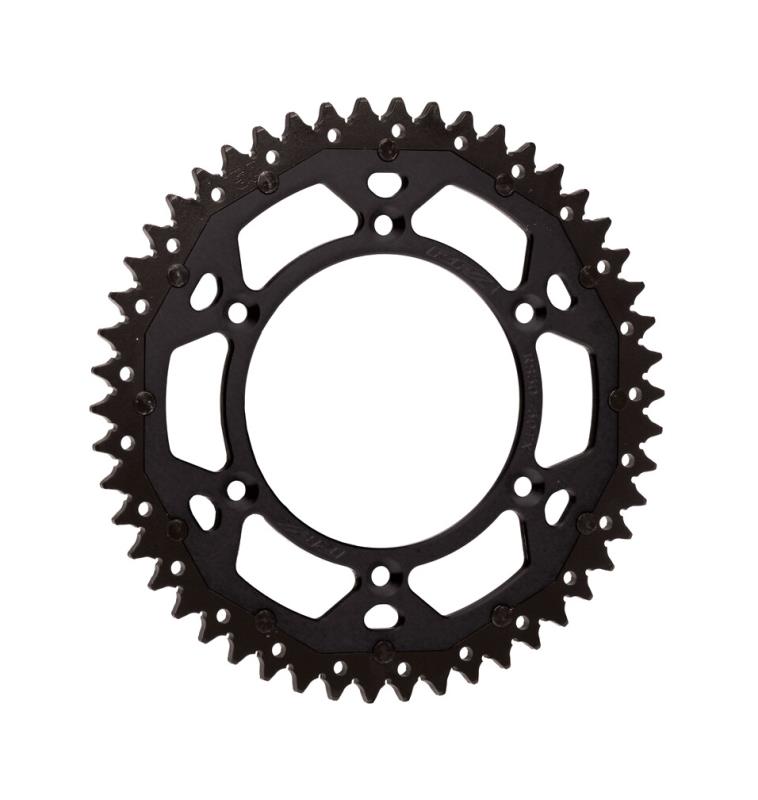

RFX Dual-compound rear sprocket for steel-aluminum transmission PRO SERIES ARMALITE - 520 1123233008

RFX Pro Series Armalite Crowns are designed and tested to the highest level by the best British and World Championship racing teams.
The double ring design provides maximum crown performance, low weight thanks to the 7075-T6 aluminum center and long tooth life thanks to the high carbon steel exterior.
Armalite crowns also incorporate a hex drive interface between the inner and outer ring, a revolutionary technology that maximizes drive between the two parts and reduces force on rivets to zero, unlike the competition.
Characteristic:
CNC 7075 Aerospace Aluminum Inner Ring
HCS outer ring
Hex-Drive location between inner and outer ring
CAD designed profile for lightness
New style of mud clearance grooves to reduce wear
Rigid design increases torsion resistance
Color anodized to give it that factory bike look
Assembly instructions:
Place the bike on a kickstand with the rear wheel off the ground
Remove the chain and wheel from the motorcycle
Hold the hex key and loosen the nuts with a spanner
Remove all the nuts and the old crown
Clean around the hub making sure it is clean and free of debris
Take the new crown and place it on the hub making sure it is snug and the screw holes are in place
Clean the crown bolts and nuts
Apply Blue Loctite to each screw and insert them into the holes
Thread the nuts onto the bolts by hand, making sure the retainers are intact and in good condition.
Hold the hex key and tighten the nuts in an even pattern
Tighten the nuts and bolts according to the owner's manual.
Refit the wheel making sure the chain is properly aligned and tightened to manufacturer's specifications
