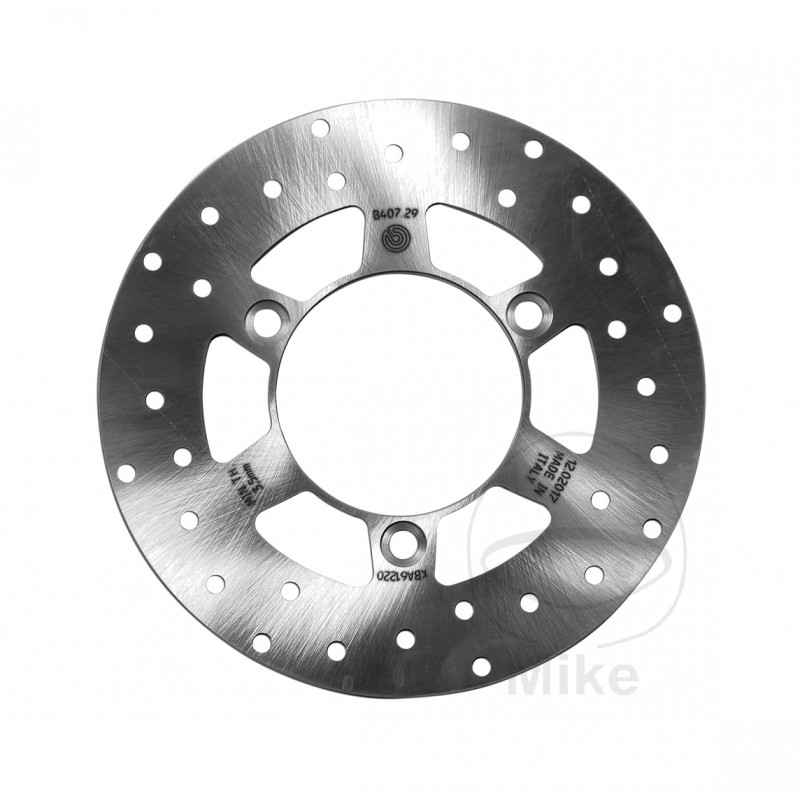

Brake disc 7600628

Brembo Oro series fixed discs are manufactured from a single piece of stainless steel casting.
The manufacturing process adheres to strict tolerances in terms of design and construction.
The machining cycles guarantee maximum suitability and concentricity.

Brembo's extensive experience has allowed them to determine the appropriate shapes, tolerances, and sizes for each type of motorcycle and application. In fact, the special design of Brembo discs, achieved through careful study of machining tolerances, improves the transmission of braking torque while offering greater resistance to mechanical and thermal stresses.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 89MM
CIRCLE SIZE: 110 MM
QUANTITY OF HOLES: 3
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this item is compatible with the following makes, models and years:
COMPATIBLE WITH Suzuki UX 125 Sixteen 2008-2014
COMPATIBLE WITH Suzuki UX 150 Sixteen 2008-2012
