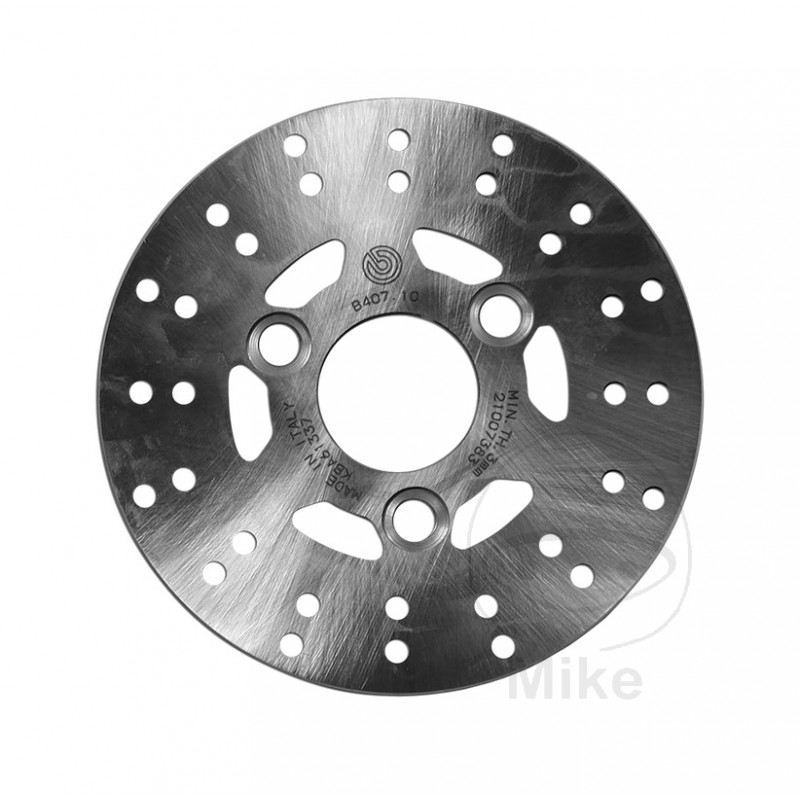

Brake disc 7600609

Brembo Oro series fixed discs are manufactured from a single piece of stainless steel casting.
The manufacturing process adheres to strict tolerances in terms of design and construction.
The machining cycles guarantee maximum suitability and concentricity.

Brembo's extensive experience has allowed them to determine the appropriate shapes, tolerances, and sizes for each type of motorcycle and application. In fact, the special design of Brembo discs, achieved through careful study of machining tolerances, improves the transmission of braking torque while offering greater resistance to mechanical and thermal stresses.
OUTER DIAMETER: 155MM
INSIDE DIAMETER: 40.5MM
CIRCLE SIZE: 66 MM
QUANTITY OF HOLES: 3
HOLE DIAMETER: 10.5 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this item is compatible with the following makes, models and years:
COMPATIBLE WITH Adly/Her Chee/Herkules Silver Fox 50 2006-2010
COMPATIBLE WITH Aprilia Amico 50 GL 1994-1999
COMPATIBLE WITH Aprilia Amico 50 LX 1995-1996
COMPATIBLE WITH Aprilia Amico 50 Sport 1992-1993
COMPATIBLE WITH Aprilia Sonic 50 AC 1998-2002
COMPATIBLE WITH Aprilia Sonic 50 GP LC 1998-1999
COMPATIBLE WITH Aprilia Sonic 50 GP LC 2011-2013
COMPATIBLE WITH Atala/Rizzato AT10 25 AC Byte 1997-2001
COMPATIBLE WITH Atala/Rizzato AT10 50 AC Byte 1997-2001
COMPATIBLE WITH Buffalo/Quelle AT10 25 Byte 2000-2001
COMPATIBLE WITH Buffalo/Quelle AT10 50 Byte 2000-2001
COMPATIBLE WITH Derbi Vamos 25 DT 1995-1996
COMPATIBLE WITH Derbi Vamos 25 FL DT 1996-1997
COMPATIBLE WITH Derbi Vamos 25 SE DT 1997-1998
COMPATIBLE WITH Derbi Vamos 50 DT 1995-1996
COMPATIBLE WITH Derbi Vamos 50 FL DT 1996-1997
COMPATIBLE WITH Derbi Vamos 50 SE DT 1997-1998
COMPATIBLE WITH Ering Silver Fox 50 2006-2007
COMPATIBLE WITH Fantic Big Wheel 50 1994
COMPATIBLE WITH Fantic Grinta 50 1995-1996
COMPATIBLE WITH Fantic Pony 50 1995
COMPATIBLE WITH Fantic Queenie 50 1995-1996
COMPATIBLE WITH Hyosung NewTee Up 25 2014-2015
COMPATIBLE WITH Hyosung NewTee Up 50 2014-2015
COMPATIBLE WITH MBK CW 50 Booster 1995-1997
COMPATIBLE WITH MBK CW 50 Booster L 12 pulgadas 2005-2006
COMPATIBLE WITH MBK CW 50 RSX Booster Track 1997-1999
COMPATIBLE WITH MBK YA 25 R Forte 1996-1998
COMPATIBLE WITH MBK YA 50 R Forte 1995-1997
COMPATIBLE WITH MBK YE 50 Evolis 1993-1994
COMPATIBLE WITH MBK YE 80 Evolis 1993-1999
COMPATIBLE WITH MBK YM 50 Fizz 1995-1997
COMPATIBLE WITH MZ/MUZ Moskito 50 1997-1998
COMPATIBLE WITH MZ/MUZ Moskito 50 FB 1998-2000
COMPATIBLE WITH MZ/MUZ Moskito 50 RX 2001-2003
COMPATIBLE WITH MZ/MUZ Moskito 50 SX 2001-2003
COMPATIBLE WITH Pegasus Sky 25 I 1999-2004
COMPATIBLE WITH Pegasus Sky 25 I 2006-2008
COMPATIBLE WITH Pegasus Sky 50 I 1999-2008
COMPATIBLE WITH Peugeot SV 50 M DT 1997-1998
COMPATIBLE WITH Peugeot V-Clic 50 2007-2014
COMPATIBLE WITH PGO Big Max 50 1995-2002
COMPATIBLE WITH PGO Big Max 50 Edition 2004-2005
COMPATIBLE WITH PGO Big Max 90 1997-1999
COMPATIBLE WITH PGO PMX 50 1998
COMPATIBLE WITH PGO Tornado 50 1997-1999
COMPATIBLE WITH Piaggio Zip 25 2T DT Base Pigmentato RST 2000-2001
COMPATIBLE WITH Piaggio Zip 25 2T DT Base RST 1999
COMPATIBLE WITH Piaggio Zip 50 2T DT Base Pigmentato RST 2000
COMPATIBLE WITH Piaggio Zip 50 2T DT Base RST 1999
COMPATIBLE WITH Piaggio Zip 50 2T DT Fast Rider 1995-1996
COMPATIBLE WITH Piaggio Zip 50 2T DT Fast Rider RST 1997
COMPATIBLE WITH TGB 101S 25 1998-2007
COMPATIBLE WITH TGB 101S 50 1998-2007
COMPATIBLE WITH Yamaha CW 50 BWS Naked 2011-2012
COMPATIBLE WITH Yamaha CW 50 BWS Naked 2016-2016
COMPATIBLE WITH Yamaha CW 50 BWS Original 2011-2012
COMPATIBLE WITH Yamaha CW 50 BWS Original 2016-2018
COMPATIBLE WITH Yamaha CW 50 R BWS 1995
COMPATIBLE WITH Yamaha Jog 50 Jog Z 1995
COMPATIBLE WITH Yamaha YA 25 R Axis 1997-1998
COMPATIBLE WITH Yamaha YA 50 R Axis 1996-1998
COMPATIBLE WITH Yamaha YE 50 Zest 1993-1999
COMPATIBLE WITH Yamaha YE 80 Zest 1994-1997
COMPATIBLE WITH Yamaha YM 50 Breeze 1995-1998
