JT SPROCKETS Transmission crown plate DIV 428/105/125 7270475

ESJOT sprockets have been specially developed for the high requirements of original equipment manufacturers and are among the best on the global market.
A special steel, a special coating and precise serration using the Diamond Cut 2.0 process guarantee exceptionally high quality and durability.
Optimally suitable for intensive wear conditions in all areas.

- Flatness and concentricity less than 0.1 mm - Manufactured from high-quality, high-strength steel - Special surface treatment - 100% Made in Germany - Diamond Cut 2.0 tooth pattern

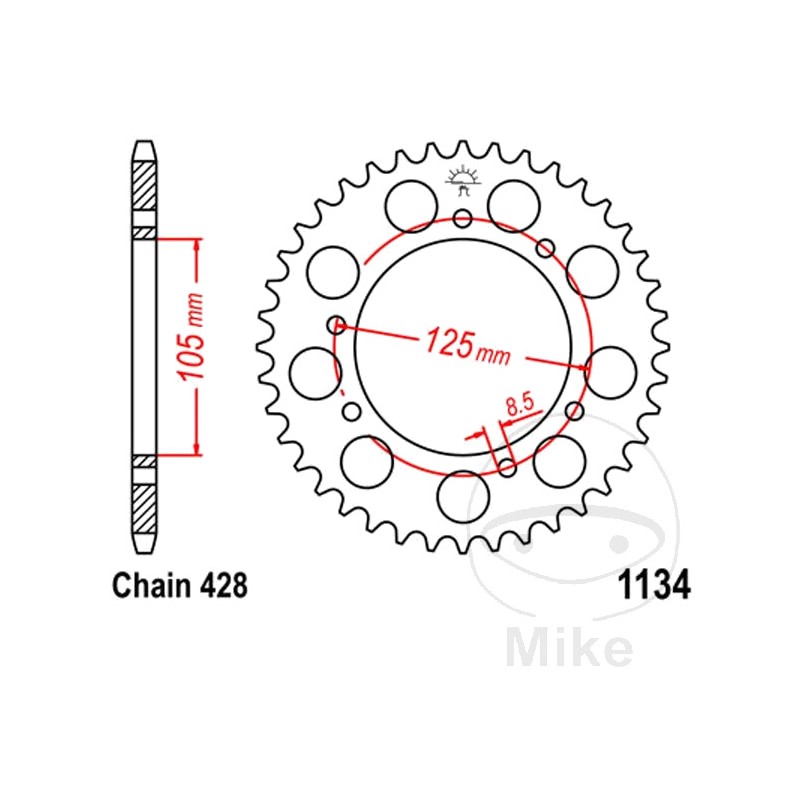

DIVISION: 428
INSIDE DIAMETER: 105MM
CIRCLE SIZE: 125 MM
HOLE: 8.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 57
CROWN TYPE: STEEL
FILLING: 0 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this item is compatible with the following makes, models and years:
COMPATIBLE WITH Derbi Mulhacen 125 Llanta con radios 2007-2010
COMPATIBLE WITH Derbi Senda 125 Cross City 2008-2016
COMPATIBLE WITH Derbi Senda 125 R 2004-2008
COMPATIBLE WITH Derbi Senda 125 R 4V DRD 2010-2015
COMPATIBLE WITH Derbi Senda 125 R Baja 2007-2014
COMPATIBLE WITH Derbi Senda 125 SM 2004-2007
COMPATIBLE WITH Derbi Senda 125 SM 4V DRD 2010-2013
COMPATIBLE WITH Derbi Senda 125 SM Baja 2007-2014
COMPATIBLE WITH Derbi Senda 125 Terra 2008-2014
COMPATIBLE WITH Derbi Senda 125 Terra Adventure 2008-2016
COMPATIBLE WITH Hyosung XRX 125 LC Enduro 2013-2014
COMPATIBLE WITH Malaguti X3M 125 Enduro 2008-2011
COMPATIBLE WITH Malaguti X3M 125 Motard 2008-2011
COMPATIBLE WITH Rieju Marathon 125 AC Enduro 2014-2017
COMPATIBLE WITH Rieju Marathon 125 AC Supermotard 2014-2015
COMPATIBLE WITH Rieju Marathon 125 LC Cross 2013-2013
COMPATIBLE WITH Rieju Marathon 125 LC Cross 2015-2015
COMPATIBLE WITH Rieju Marathon 125 LC Pro Enduro 2009-2010
COMPATIBLE WITH Rieju Marathon 125 LC Pro Enduro 2012-2012
COMPATIBLE WITH Rieju Marathon 125 LC Pro Enduro 2014-2014
COMPATIBLE WITH Rieju Marathon 125 LC Pro Supermotard llanta de fundición 2009-2014
COMPATIBLE WITH Rieju Marathon 125 LC Supermotard Llanta con radios 2013
COMPATIBLE WITH Rieju Marathon 125 LC Supermotard llanta de fundición 2015
COMPATIBLE WITH Rieju MRT 125 AC Cross 2012-2015
COMPATIBLE WITH Rieju MRT 125 AC Supermotard 2014-2015
COMPATIBLE WITH Rieju MRX 125 2002-2010
COMPATIBLE WITH Rieju RS-3 125 LC 2011-2017
COMPATIBLE WITH Rieju RS-3 125 LC NKD 2014-2017
COMPATIBLE WITH Rieju RS-3 125 LC Pro 2014-2015
COMPATIBLE WITH Rieju SMX 125 llanta de fundición 2006
COMPATIBLE WITH Rieju SMX 125 llanta de radios 2003-2005
COMPATIBLE WITH Rieju SMX 125 llanta de radios 2007-2010
COMPATIBLE WITH Rieju Tango 125 CBS 2017-2020
COMPATIBLE WITH Rieju Tango 125 2006-2012
COMPATIBLE WITH Rieju Tangoo 125 llanta de fundición 2013-2016
COMPATIBLE WITH Yamaha XT 125 R 2005-2012
COMPATIBLE WITH Yamaha XT 125 X 2005-2012
