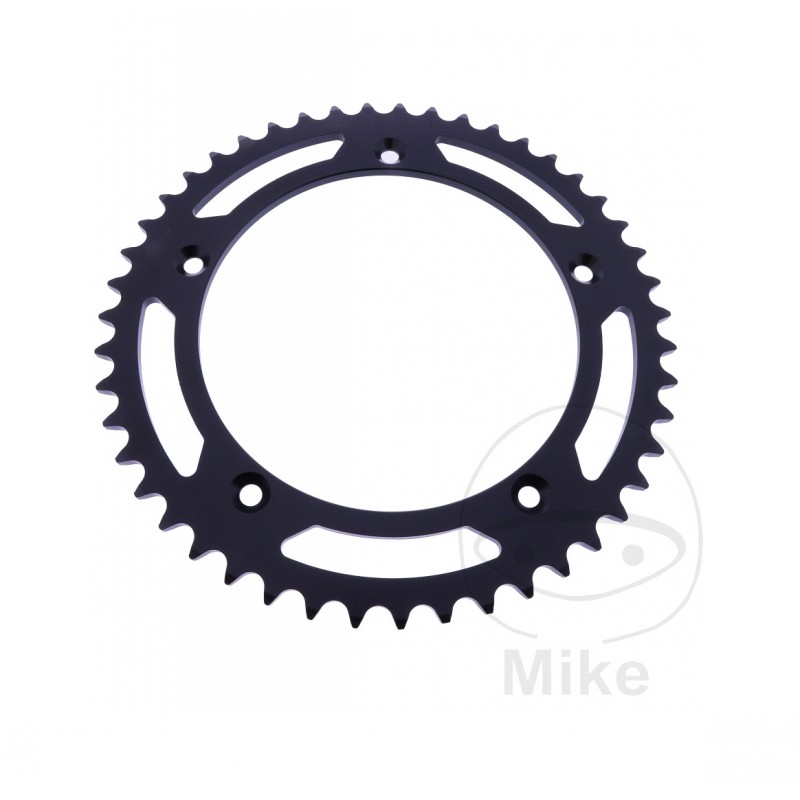

ESJOT Rear crown plate DIV 520 / 158 180 7271697

ESJOT sprockets have been specially developed for the high requirements of original equipment manufacturers and are among the best on the global market.
A special steel, a special coating and precise serration using the Diamond Cut 2.0 process guarantee exceptionally high quality and durability.
Optimally suitable for intensive wear conditions in all areas.

- Flatness and concentricity less than 0.1 mm - Made of high-quality, high-strength steel - Special surface treatment - 100% Made in Germany - Diamond Cut 2.0 tooth pattern
DIVISION: 520
INSIDE DIAMETER: 158MM
CIRCLE SIZE: 180 MM
HOLE: 8.5MM
HOLES QUANTITY: 5
SCREW TYPE: COUNTERSUNK HEAD
QTY TEETH: 47
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this item is compatible with the following makes, models and years:
COMPATIBLE WITH Voge AC 500 Trofeo ABS Euro5 2021-2025
COMPATIBLE WITH Voge ACX 525 Scrambler Trofeo ABS Euro5 2022-2025
COMPATIBLE WITH Voge DS 500 Valico ABS Euro5 2021-2024
COMPATIBLE WITH Voge DS 500 Valico Euro4 2020-2021
COMPATIBLE WITH Voge DS 525 X Valico ABS Euro5 2023-2024
COMPATIBLE WITH Voge DS 525 X Valico ABS Euro5+ 2025
COMPATIBLE WITH Voge DS 650 Valico ABS Euro5 2021-2025
COMPATIBLE WITH Voge DSX 500 Valico ABS Euro5 2021-2024
COMPATIBLE WITH Voge DSX 525 Valico ABS Euro5 2023-2024
COMPATIBLE WITH Voge DSX 525 Valico ABS Euro5+ 2025
COMPATIBLE WITH Voge DSX 650 Valico ABS Euro5 2022-2023
