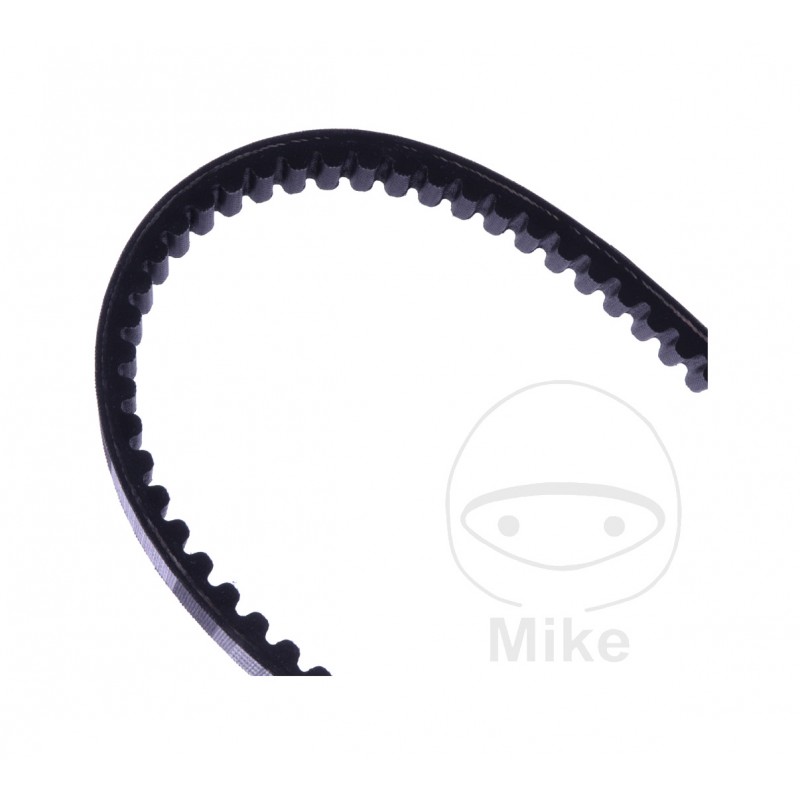

JT DRIVE BELT Standard 7550565

Drive belts: the perfect solution for every application

Drive belts differ not only in length and width, but also in height, angle, material, and construction. These characteristics are crucial for each application. Each belt is precisely matched to a specific vehicle and gear ratio. Therefore, rely on the belt designation provided by the manufacturer or distributor. Only then can you be sure that the belt fits perfectly and functions reliably.

Technical explanation: When selecting a variomatic drive belt, not only the width × length matters, but also
- the angle of the belt profile
- the thickness (height of the strap)
- the height and shape of the teeth
Even small differences can be crucial. For example, two belts might have the same length and width but differ in angle by 4 degrees. These belts are incompatible because they don't fit together perfectly. This leads to increased wear, power loss, and impaired performance.
The use of different materials and structures responds specifically to different requirements:
- greater heat resistance
- greater slip resistance
- greater stability under lateral pressure
- longer lifespan

Differences in measurement methods: Belt manufacturers often measure differently, so dimensions also vary:
- Inside length - measured on the inside of the strap
- Tensioning rope - a supporting element that ensures dimensional stability and prevents the belt from stretching
- Outer length - measured around the outer circumference of the strap
- Reference or center line - measured approximately at the center of the belt thickness

These differences often confuse customers, especially when they have to choose between belts with different specifications. Customers often measure their installed belts and are shocked to find that the specified dimensions don't match. For this reason, many manufacturers omit dimensional specifications altogether.
But what if no belt is specified for a vehicle, or the end user only has the dimensions?

Our quality standards: We have precisely measured and documented each belt. We understand that many customers can only measure the width and outer diameter when replacing a belt. To help you make the right choice, we provide these dimensions transparently.
This way, you can narrow your search and find the strap that most closely matches your old model, even if the original designation is no longer legible.

Note: The dimensions indicated correspond to the outer diameter and width.


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this item is compatible with the following makes, models and years:
COMPATIBLE WITH Piaggio Liberty 125 3V ie ABS 2016-2016
COMPATIBLE WITH Piaggio Liberty 125 3V ie ABS 2019-2019
COMPATIBLE WITH Piaggio Liberty 125 3V ie ABS IGET Euro4 2017-2018
COMPATIBLE WITH Piaggio Liberty 125 3V ie ABS IGET Euro4 2020-2020
COMPATIBLE WITH Piaggio Liberty 125 3V ie ABS IGET Euro5 2021-2024
COMPATIBLE WITH Piaggio Liberty 125 3V ie 2014-2015
COMPATIBLE WITH Piaggio Liberty 125 3V ie Baci Perugina ABS IGET Euro5 2022
COMPATIBLE WITH Piaggio Liberty 125 S 3V ie ABS IGET Euro4 2020
COMPATIBLE WITH Piaggio Liberty 125 S 3V ie ABS IGET Euro5 2021-2024
COMPATIBLE WITH Piaggio Liberty 125 S 3V ie Sport ABS 2016-2016
COMPATIBLE WITH Piaggio Liberty 125 S 3V ie Sport ABS 2019-2019
COMPATIBLE WITH Piaggio Liberty 125 S 3V ie Sport ABS IGET Euro4 2017-2018
COMPATIBLE WITH Vespa Primavera 125 3V ie ABS 2014-2016
COMPATIBLE WITH Vespa Primavera 125 3V ie 2014-2016
COMPATIBLE WITH Vespa Primavera 125 3V ie IGET 75 th ABS 2022-2023
COMPATIBLE WITH Vespa Primavera 125 3V ie IGET ABS 2016-2024
COMPATIBLE WITH Vespa Primavera 125 3V ie IGET Anniversario ABS 2018-2019
COMPATIBLE WITH Vespa Primavera 125 3V ie IGET Batik ABS 2024-2025
COMPATIBLE WITH Vespa Primavera 125 3V ie IGET Color Vibe ABS 2023-2024
COMPATIBLE WITH Vespa Primavera 125 3V ie IGET Disney Edition ABS 2023-2025
COMPATIBLE WITH Vespa Primavera 125 3V ie IGET Euro5+ ABS 2024-2025
COMPATIBLE WITH Vespa Primavera 125 3V ie IGET Officina 8 ABS 2025
COMPATIBLE WITH Vespa Primavera 125 3V ie IGET Pic Nic ABS 2022-2024
COMPATIBLE WITH Vespa Primavera 125 3V ie IGET Red ABS 2021-2024
COMPATIBLE WITH Vespa Primavera 125 3V ie IGET Red Euro5+ ABS 2024-2025
COMPATIBLE WITH Vespa Primavera 125 3V ie IGET Tech ABS 2024-2025
COMPATIBLE WITH Vespa Primavera 125 3V ie IGET Touring ABS 2016-2024
COMPATIBLE WITH Vespa Primavera 125 3V ie IGET Yacht Club ABS 2018-2020
COMPATIBLE WITH Vespa Primavera 125 3V ie Touring 2016
COMPATIBLE WITH Vespa Primavera 125 S 3V ie IGET ABS 2019-2024
COMPATIBLE WITH Vespa Primavera 125 S 3V ie IGET Euro5+ ABS 2024-2025
COMPATIBLE WITH Vespa Primavera 125 S 3V ie IGET Sean Wotherspoon ABS 2021
COMPATIBLE WITH Vespa Primavera 150 3V ie IGET Disney ABS 2023
COMPATIBLE WITH Vespa Sprint 125 3V ie ABS 2014-2016
COMPATIBLE WITH Vespa Sprint 125 3V ie 2014-2016
COMPATIBLE WITH Vespa Sprint 125 3V ie IGET ABS 2017-2024
COMPATIBLE WITH Vespa Sprint 125 3V ie IGET Justin Bieber ABS 2022-2024
COMPATIBLE WITH Vespa Sprint 125 3V ie IGET Notte ABS 2017-2020
COMPATIBLE WITH Vespa Sprint 125 3V ie IGET Racing Sixties ABS 2020-2023
COMPATIBLE WITH Vespa Sprint 125 S 3V ie ABS 2016
COMPATIBLE WITH Vespa Sprint 125 S 3V ie IGET ABS 2017-2024
COMPATIBLE WITH Vespa Sprint 125 S 3V ie IGET Euro5+ ABS 2024-2025
