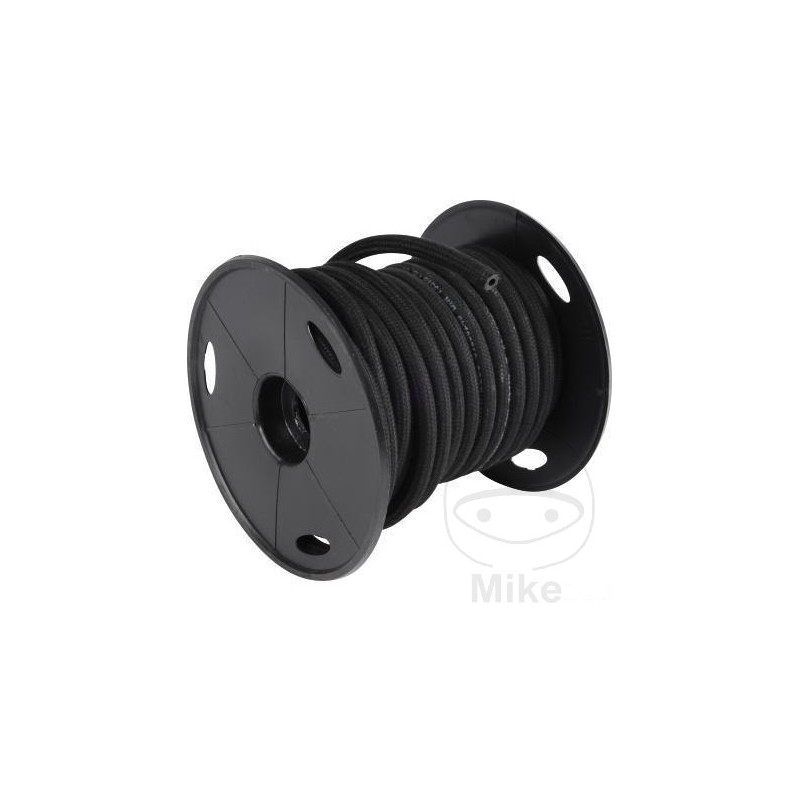

Fuel hose 4.5 X 9.5 MM DIN 73379-B 467.01.53

HERTH+BUSS ELPARTS Fuel hose

Fuel hoses with vulcanized wire braiding for the supply of:

Petrol (E5, E10, E15, E85)

Diesel and biodiesel (B10, B20).

Technical data:

No SVHC substances present.

Maximum short-term temperature [°C]: +110 °C

Temperature range up to [°C]: +90 °C

Temperature range [°C]: -35 °C

DIN/ISO: 73379-B

Burst pressure [bar]: 30 bar

Operating pressure [bar]: 10 bar

Radius of curvature [mm]: 50 mm

Wall thickness [mm]: 2.5mm

Textile material

Material: NBR (Nitrile Butadiene Rubber)

Outer diameter [mm]: 9.5mm

Inner diameter [mm]: 4.5mm

Diameter [mm]: 4.5mm

Packaging type: Coil
INNER DIAMETER: 4.5MM
OUTSIDE DIAMETER: 9.5MM
MATERIAL: COVERED YARN
FUEL COMPATIBILITY: BENZIN E10
RESISTANT TO OZONE AND LIGHT CRACKING: YES
OPERATING PRESSURE: 10 BAR
SUITABLE FOR MOUNTING INSIDE THE TANK: NO
