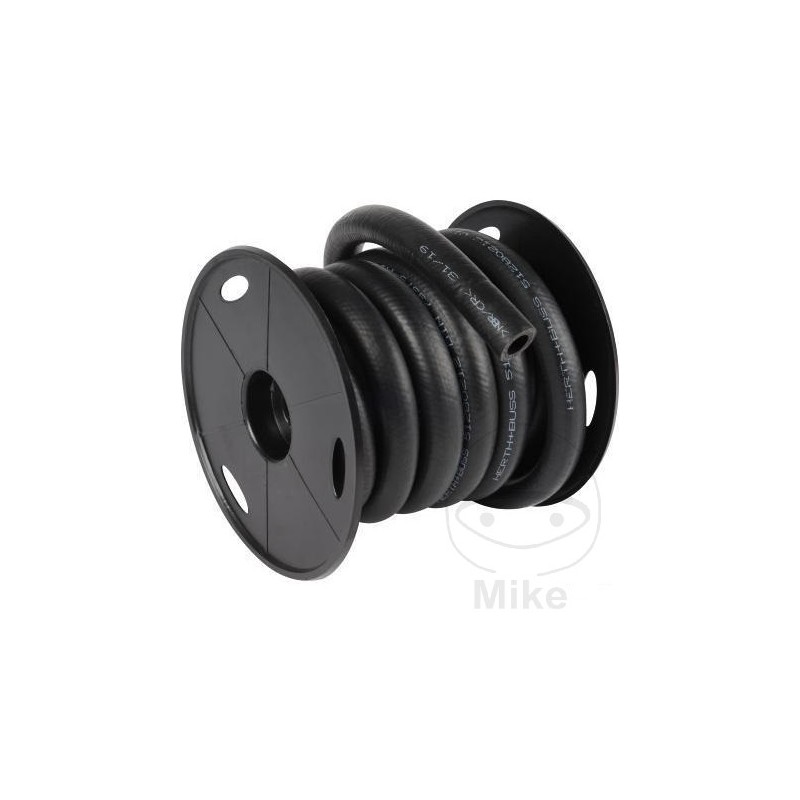

HERTH+BUSS rubber fuel hose 12.0X19.0MM DIN 73379-A1 467.01.52

HERTH+BUSS ELPARTS Fuel hose

Upper rubber fuel hose with reinforcing insert for the supply of:

Petrol (E5, E10, E15, E85)

Diesel and biodiesel (B10, B20)

Oil, acid, heat, ozone and weather resistant.

Technical data:

SVHC: No SVHC substances present!

Maximum short-term temperature [°C]: +110 °C

Temperature range up to [°C]: +90 °C

Temperature range [°C]: -35 °C

DIN/ISO: 73379-A1

Burst pressure [bar]: 50 bar

Operating pressure [bar]: 10 bar

Radius of curvature [mm]: 100 mm

Wall thickness [mm]: 3.5 mm

Material: Rubber with fabric insert

Material: CR (chloroprene rubber)

Material: NBR (Nitrile Butadiene Rubber)

Outer diameter [mm]: 19mm

Inner diameter [mm]: 12mm

Diameter [mm]: 12mm

Packaging unit: Coil
INSIDE DIAMETER: 12.0MM
OUTSIDE DIAMETER: 19.0MM
MATERIAL: NBR (ACRYLONITRILE BUTADIENE RUBBER)
FUEL COMPATIBILITY: BENZIN E10
RESISTANT TO OZONE AND LIGHT CRACKING: YES
OPERATING PRESSURE: 10.0 BAR
SUITABLE FOR MOUNTING INSIDE THE TANK: NO
