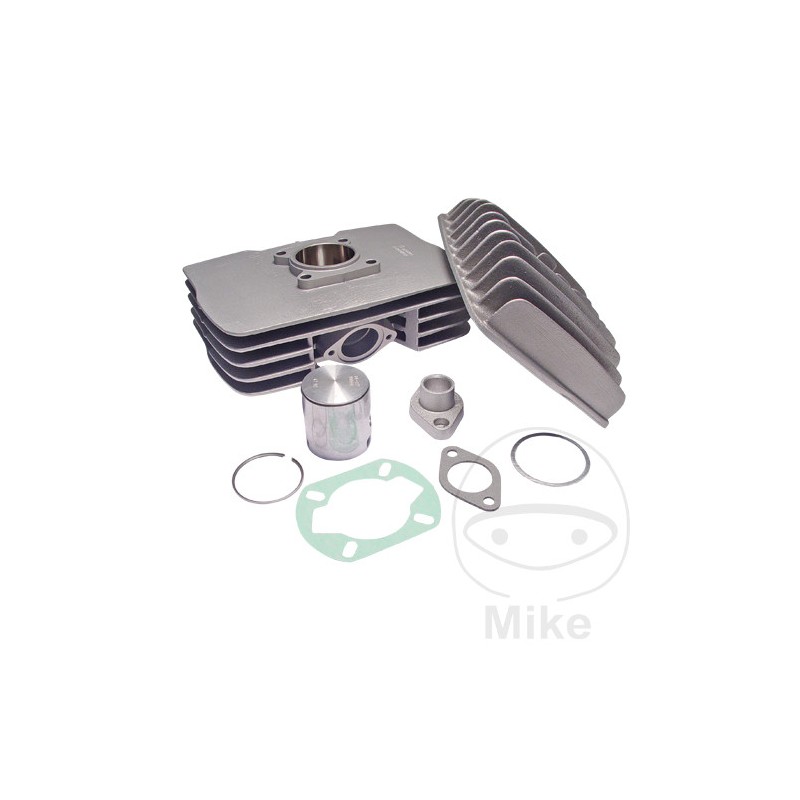

ATHENA Standard cylinder kit for motorcycle 80CCM 756.83.14

Athena cylinder set

For more than 10 years, Athena has been investing in the best and most modern technologies for the production of cylinders and their components, which are used not only by original equipment manufacturers, but also by the best racing teams in the world.

Last but not least, the production of aluminum cylinders is constantly improved through cooperation with the best Italian universities, as well as constant development requests from the best engine tuners.

Thanks to a flexible production department, Athena can react efficiently to different situations (original equipment manufacturer production batches, small quantities, building a prototype for racing teams).

Athena cylinders are made of high quality aluminum alloys. They are made using the latest technologies and coated with a nickel-silicon alloy. Once all cylinders have passed strict quality controls, they meet the highest standards in terms of reliability, durability and performance.

Features:

- A special 3D software is able to generate virtual simulations and mechanical loads.

- Aluminum cylinders are cast in steel molds and manufactured using CNC machines (in this way, thousandths of tolerance can be guaranteed in all manufacturing phases)

- Revised water channels to increase capacity

- The cylinder liners are made of a special mixture of silicon carbide and nickel to ensure the best piston running performance and cylinder durability.

- Tested at an internal temperature of approximately 20 degrees, for the best possible control of the holes and cylinders

- The surfaces of the cylinders are perfectly flat to eliminate any inaccuracies in the fit

Technical specifications:

Cylinder material: Aluminum

Cooling type: air cooled

DIAMETER: 48MM

STROKE: 44MM

Displacement: 79.58cc

Compression: 11:1

Piston pin diameter: 14 mm

Number of overflow channels: 4

Piston Crown Shape: Domed

Piston Ring Number: 1

Upper Piston Ring Thickness: 2mm

Piston Ring Type: Chrome

Outlet: 1 x oval

Stock: included in delivery


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Hercules Supra 50 4 Enduro 2,7 CV, 2 kw 1cil. 542 003 542 Bastidores: 542 100 101-- 1981-1984
Hercules Supra 50 4 Enduro 2,9 CV, 2.1 kw 1cil. 542 002 542 Bastidores: 542 00 001-- 1979-1980
Hercules Supra 50 4 GP 2,9 CV, 2,1 kw 1cil. 652 033 652 Bastidores: --- 1981-1983
Hercules Supra 50 4 GP 2,9 CV, 2,1 kw 1cil. 652 200 652 Bastidores: 652 200 001-- 1979-1980
