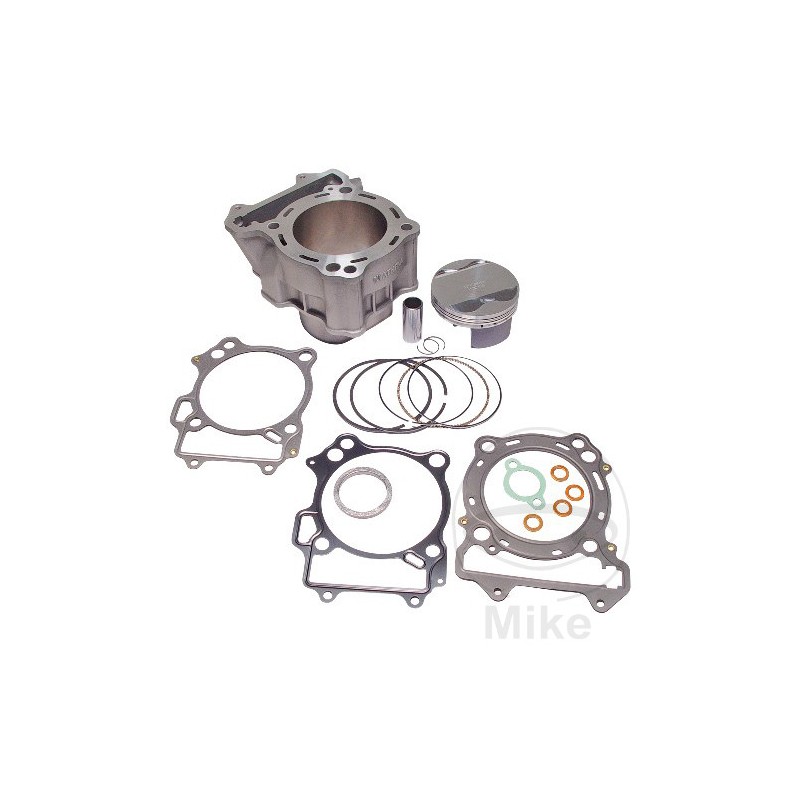

      Athena cylinder set

      For more than 10 years, Athena has been investing in the best and most advanced technologies for the production of cylinders and their components, which are used not only by original equipment manufacturers, but also by the best racing teams in the world.

      The production of aluminum cylinders is, last but not least, constantly improved through collaboration with the best Italian universities, as well as continuous development requests from the best engine tuners.

      Thanks to a flexible production department, Athena can react efficiently to different situations (original equipment manufacturer production batches, small quantities, building a prototype for racing teams).

      Athena cylinders are made of high quality aluminum alloys. They are made using the latest technologies and coated with a nickel-silicon alloy. After undergoing rigorous quality checks, all cylinders meet the highest standards of reliability, longevity, and performance.

      WARNING:

      Kit includes two cylinder base gaskets.

      - 0.2mm thick seal is for DR-Z 400, KLX 400

      - 0.7mm thick seal is for LT-Z 400, KFX 400

      Characteristic:

      - A special 3D software is able to generate virtual simulations and mechanical loads.

      - Aluminum cylinders are cast in steel molds and manufactured using CNC machines (thousandths of tolerances can therefore be guaranteed in all production phases)

      - Revised water channels to increase capacity

      - The cylinder liners are made of a special silicon carbide and nickel compound to ensure the best piston and cylinder life.

      - Tested at an internal temperature of approximately 20 degrees, for the best possible control of the holes and the cylinder.

      - Cylinder surfaces are perfectly flat to eliminate any inaccuracies of fit

      Technical information:

      Cylinder material: Aluminum

      Cooling type: water cooled

      Diameter: 90mm.

      Stroke: 62.6mm

      Displacement: 398.2cc

      Compaction: 12.2: 1

      Piston Pin Diameter: 20mm.

      Number of piston rings: 3

      Upper Piston Ring Thickness: 1mm.

      Second Piston Ring Thickness: 1.2mm

      Oil ring thickness: 2.5mm.

      stock: not included

      Peak Power at Crankshaft: 44.1 HP / 9,700 RPM


      APPLICATIONS OF THIS PRODUCT:
      According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
      Arctic Cat/Textron DVX 400 2WD 1cil. - Bastidores: --- 2004-2008
      Kawasaki KFX 400 A KSF 39/20 CV, 29/15 kw 1cil. AK47B 32 1 Bastidores: AK47B 32-100001-AK47B 32-999999 2003
      Kawasaki KFX 400 A KSF 39/20 CV, 29/15 kw 1cil. AK47B 42 2 Bastidores: AK47B 42-100001-AK47B 42-999999 2004
      Kawasaki KFX 400 A KSF 39/20 CV, 29/15 kw 1cil. AK47B 52 3 Bastidores: AK47B 52-100001-AK47B 52-999999 2005
      Kawasaki KFX 400 A KSF 39/20 CV, 29/15 kw 1cil. AK47B 62 6F Bastidores: AK47B 62-100001-AK47B 62-999999 2006
      Suzuki DR-Z 400 49 CV, 36 kw 1cil. BE1111 K3 Bastidores: BE1111 henceforth0101676-- 2003-2004
      Suzuki DR-Z 400 E 49 CV, 36 kw 1cil. BF1111 K3 Bastidores: BF1111 henceforth0103443-- 2003-2004
      Suzuki DR-Z 400 E 49 CV, 36 kw 1cil. BF1111 K5 Bastidores: BF1111 henceforth0105561-BF1111 henceforth0106777 2005
      Suzuki DR-Z 400 S 39 CV, 29 kw 1cil. WVBC1112 K3 Bastidores: BC1112 henceforth0105821-BC1112 henceforth0107185 2003
      Suzuki DR-Z 400 S 39 CV, 29 kw 1cil. WVBC1112 K4 Bastidores: BC1112 henceforth0107186-BC1112 henceforth0108192 2004
      Suzuki DR-Z 400 S 39 CV, 29 kw 1cil. WVBC1112 K5 Bastidores: BC1112 henceforth0108193-BC1112 henceforth0109110 2005
      Suzuki DR-Z 400 S 39 CV, 29 kw 1cil. WVBC1112 K6 Bastidores: BC1112 henceforth0109111-BC1112 henceforth0110006 2006
      Suzuki DR-Z 400 SM 40 CV, 29,4 kw 1cil. WVB81112 K5 Bastidores: B81112 henceforth0100001-B81112 henceforth0103148 2005
      Suzuki DR-Z 400 SM 40 CV, 29,4 kw 1cil. WVB81112 K6 Bastidores: B81112 henceforth0103149-B81112 henceforth0106275 2006
      Suzuki DR-Z 400 SM 40 CV, 29,4 kw 1cil. WVB81112 K7 Bastidores: B81112 henceforth0106276-B81112 henceforth0110837 2007
      Suzuki DR-Z 400 SM 40 CV, 29,4 kw 1cil. WVB81112 K8 Bastidores: B81112 henceforth0110838-B81112 henceforth0119999 2008
      Suzuki DR-Z 400 SMU 31 CV, 23 kw 1cil. WVB81110 K7 Bastidores: B81110 henceforth0100242-- 2007
      Suzuki DR-Z 400 SMU 34 CV, 25 kw 1cil. WVB81110 K5 Bastidores: B81110 henceforth0100001-B81110 henceforth0100087 2005
      Suzuki DR-Z 400 SMU 34 CV, 25 kw 1cil. WVB81110 K6 Bastidores: B81110 henceforth0100088-B81110 henceforth0100241 2006
      Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. 4K47A K8 Bastidores: 4K47A-82100001-- 2008
      Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K3 Bastidores: AK47A-32100001-- 2003
      Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K4 Bastidores: AK47A-42100001-- 2004
      Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K5 Bastidores: AK47A-52100001-- 2005
      Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K6 Bastidores: AK47A-62100001-- 2006
      Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K7 Bastidores: AK47A-72100001-- 2007
      Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK4AA K9 Bastidores: AK4AA-92100001-- 2009
      Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK4AA L0 Bastidores: AK4AA-A2100001-- 2010
