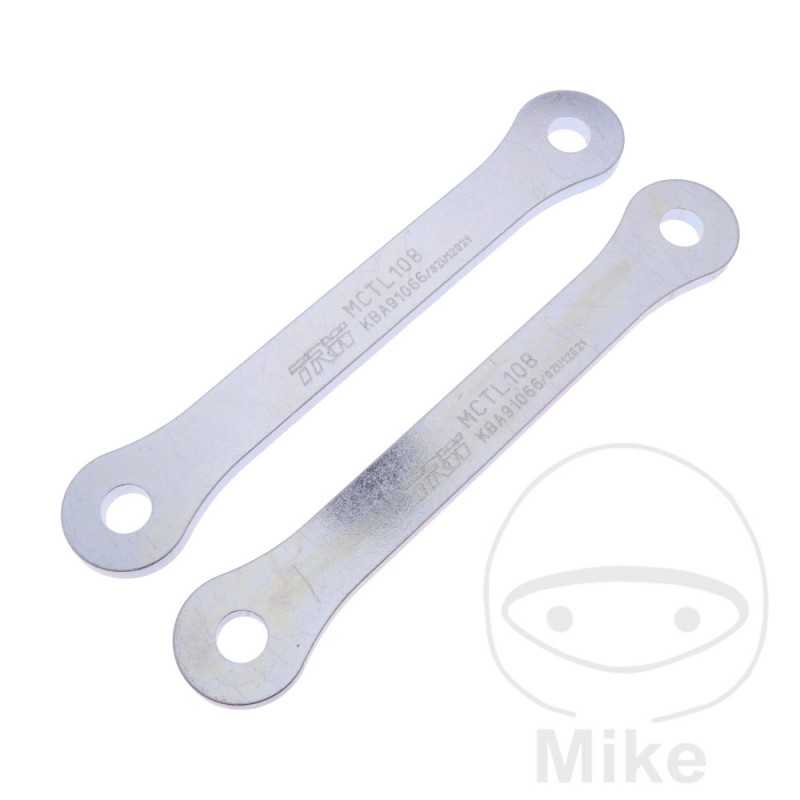

With the TRW-Lucas rear suspension, there is a cost-effective way to lower the seat height.

This is accomplished on most models by a modified strut link.

Installation in a specialized workshop is recommended, especially for models where the shock absorber must be pressed.

- Going down with ABE

- By lowering the seat height is reduced by 20-50 mm (depending on the model) in a simple way

- safe and comfortable support with little effort

- The lowering kits are milled in steel or aluminum, depending on the model.

- Most motorcycles are lowered by modified pushrods or triangle plates instead of the original.

- with the central strut the full working distance remains

- for all descents, the side stand must be shortened

- partly the main support has to be removed

After the rebuild, it is necessary that, depending on the vehicle load, the handling of the spring damper is adjusted accordingly,

otherwise it could cause damage to the vehicle. It can reach parts of the vehicle.


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI SV 650 72 CV, 53 KW 2CIL. WVBY1111 K3 BASTIDORES: BY1111 henceforth0100001-BY1111 henceforth0106361 2003
SUZUKI SV 650 72 CV, 53 KW 2CIL. WVBY1111 K4 BASTIDORES: BY1111 henceforth0106362-BY1111 henceforth0108929 2004
SUZUKI SV 650 72 CV, 53 KW 2CIL. WVBY1111 K5 BASTIDORES: BY1111 henceforth0108930-BY1111 henceforth0110433 2005
SUZUKI SV 650 72 CV, 53 KW 2CIL. WVBY1111 K6 BASTIDORES: BY1111 henceforth0110434-BY1111 henceforth0111673 2006
SUZUKI SV 650 72 CV, 53 KW 2CIL. WVBY1111 K7 BASTIDORES: BY1111 henceforth0111674-BY1111 henceforth0112445 2007
SUZUKI SV 650 72 CV, 53 KW 2CIL. WVBY1111 K8 BASTIDORES: BY1111 henceforth0112446-BY1111 henceforth0113287 2008
SUZUKI SV 650 72 CV, 53 KW 2CIL. WVBY1111 K9 BASTIDORES: BY1111 henceforth0113288-- 2009
SUZUKI SV 650 A ABS 72 CV, 53 KW 2CIL. WVBY1131 K7 BASTIDORES: BY1131 henceforth0100001-BY1131 henceforth0100592 2007
SUZUKI SV 650 A ABS 72 CV, 53 KW 2CIL. WVBY1131 K8 BASTIDORES: BY1131 henceforth0100593-BY1131 henceforth0100666 2008
SUZUKI SV 650 A ABS 72 CV, 53 KW 2CIL. WVBY1131 K9 BASTIDORES: BY1131 henceforth0100667-- 2009
SUZUKI SV 650 S 72 CV, 53 KW 2CIL. WVBY1321 K3 BASTIDORES: BY1321 henceforth0100001-BY1321 henceforth0106875 2003
SUZUKI SV 650 S 72 CV, 53 KW 2CIL. WVBY1321 K4 BASTIDORES: BY1321 henceforth0106876-BY1321 henceforth0110275 2004
SUZUKI SV 650 S 72 CV, 53 KW 2CIL. WVBY1321 K5 BASTIDORES: BY1321 henceforth0110276-BY1321 henceforth0112390 2005
SUZUKI SV 650 S 72 CV, 53 KW 2CIL. WVBY1321 K6 BASTIDORES: BY1321 henceforth0112391-BY1321 henceforth0114477 2006
SUZUKI SV 650 S 72 CV, 53 KW 2CIL. WVBY1321 K7 BASTIDORES: BY1321 henceforth0114478-BY1321 henceforth0114922 2007
SUZUKI SV 650 S 72 CV, 53 KW 2CIL. WVBY1321 K8 BASTIDORES: BY1321 henceforth0114923-BY1321 henceforth0115496 2008
SUZUKI SV 650 S 72 CV, 53 KW 2CIL. WVBY1321 K9 BASTIDORES: BY1321 henceforth0115497-BY1321 henceforth0115790 2009
SUZUKI SV 650 S 72 CV, 53 KW 2CIL. WVBY1321 L0 BASTIDORES: BY1321 henceforth0115791-- 2010-2016
SUZUKI SV 650 SA ABS 72 CV, 53 KW 2CIL. WVBY1341 K7 BASTIDORES: BY1341 henceforth0100001-BY1341 henceforth0101353 2007
SUZUKI SV 650 SA ABS 72 CV, 53 KW 2CIL. WVBY1341 K8 BASTIDORES: BY134-100101354-BY1341 henceforth0101715 2008
SUZUKI SV 650 SA ABS 72 CV, 53 KW 2CIL. WVBY1341 K9 BASTIDORES: BY1341 henceforth0101716-BY1341 henceforth0101789 2009
SUZUKI SV 650 SA ABS 72 CV, 53 KW 2CIL. WVBY1341 L0 BASTIDORES: BY1341 henceforth0101790-- 2010
SUZUKI SV 650 SU 34 CV, 25 KW 2CIL. WVBY2221 K3 BASTIDORES: BY2221 henceforth0100001-BY2221 henceforth0102898 2003
SUZUKI SV 650 SU 34 CV, 25 KW 2CIL. WVBY2221 K4 BASTIDORES: BY2221 henceforth0102899-BY2221 henceforth0104300 2004
SUZUKI SV 650 SU 34 CV, 25 KW 2CIL. WVBY2221 K5 BASTIDORES: BY2221 henceforth0104301-BY2221 henceforth0106186 2005
SUZUKI SV 650 SU 34 CV, 25 KW 2CIL. WVBY2221 K6 BASTIDORES: BY2221 henceforth0106187-BY2221 henceforth0107332 2006
SUZUKI SV 650 SU 34 CV, 25 KW 2CIL. WVBY2221 K7 BASTIDORES: BY2221 henceforth0107333-BY2221 henceforth0108240 2007
SUZUKI SV 650 SU 34 CV, 25 KW 2CIL. WVBY2221 K8 BASTIDORES: BY2221 henceforth0108241-BY2221 henceforth0109065 2008
SUZUKI SV 650 SU 34 CV, 25 KW 2CIL. WVBY2221 K9 BASTIDORES: BY2221 henceforth0109066-BY2221 henceforth0109494 2009
SUZUKI SV 650 SU 34 CV, 25 KW 2CIL. WVBY2221 L0 BASTIDORES: BY2221 henceforth0109495-- 2010
SUZUKI SV 650 SUA ABS 34 CV, 25 KW 2CIL. WVBY2241 K7 BASTIDORES: BY2241 henceforth0100001-BY2241 henceforth0100514 2007
SUZUKI SV 650 SUA ABS 34 CV, 25 KW 2CIL. WVBY2241 K8 BASTIDORES: BY2241 henceforth0100515-- 2008
SUZUKI SV 650 U 34 CV, 25 KW 2CIL. WVBY2111 K3 BASTIDORES: BY2111 henceforth0100001-BY2111 henceforth0100639 2003
SUZUKI SV 650 U 34 CV, 25 KW 2CIL. WVBY2111 K4 BASTIDORES: BY2111 henceforth0100640-BY2111 henceforth0101997 2004
SUZUKI SV 650 U 34 CV, 25 KW 2CIL. WVBY2111 K5 BASTIDORES: BY2111 henceforth0101996-BY2111 henceforth0103959 2005
SUZUKI SV 650 U 34 CV, 25 KW 2CIL. WVBY2111 K6 BASTIDORES: BY2111 henceforth0103960-BY2111 henceforth0105575 2006
SUZUKI SV 650 U 34 CV, 25 KW 2CIL. WVBY2111 K7 BASTIDORES: BY2111 henceforth0105576-BY2111 henceforth0106887 2007
SUZUKI SV 650 U 34 CV, 25 KW 2CIL. WVBY2111 K8 BASTIDORES: BY2111 henceforth0106888-BY2111 henceforth0107793 2008
SUZUKI SV 650 U 34 CV, 25 KW 2CIL. WVBY2111 K9 BASTIDORES: BY2111 henceforth0107794-- 2009
SUZUKI SV 650 UA ABS 34 CV, 25 KW 2CIL. WVBY2131 K7 BASTIDORES: BY2131 henceforth0100001-BY2131 henceforth0100147 2007
SUZUKI SV 650 UA ABS 34 CV, 25 KW 2CIL. WVBY2131 K8 BASTIDORES: BY2131 henceforth0100148-BY2131 henceforth0100159 2008
SUZUKI SV 650 UA ABS 34 CV, 25 KW 2CIL. WVBY2131 K9 BASTIDORES: BY2131 henceforth0100160-- 2009
YAMAHA SZR 660 34 CV, 25 KW 1CIL. 4SU 4SU1 BASTIDORES: 4SU henceforth00106-- 1995-1996
YAMAHA SZR 660 34 CV, 25 KW 1CIL. 4SU 4SU3 BASTIDORES: 4SU henceforth21692-4SU henceforth41560 1997-1998
YAMAHA SZR 660 48 CV, 35 KW 1CIL. 4SU 4SU1 BASTIDORES: 4SU henceforth00106-- 1995-1996
YAMAHA SZR 660 48 CV, 35 KW 1CIL. 4SU 4SU3 BASTIDORES: 4SU henceforth21692-4SU henceforth41560 1997-1998
