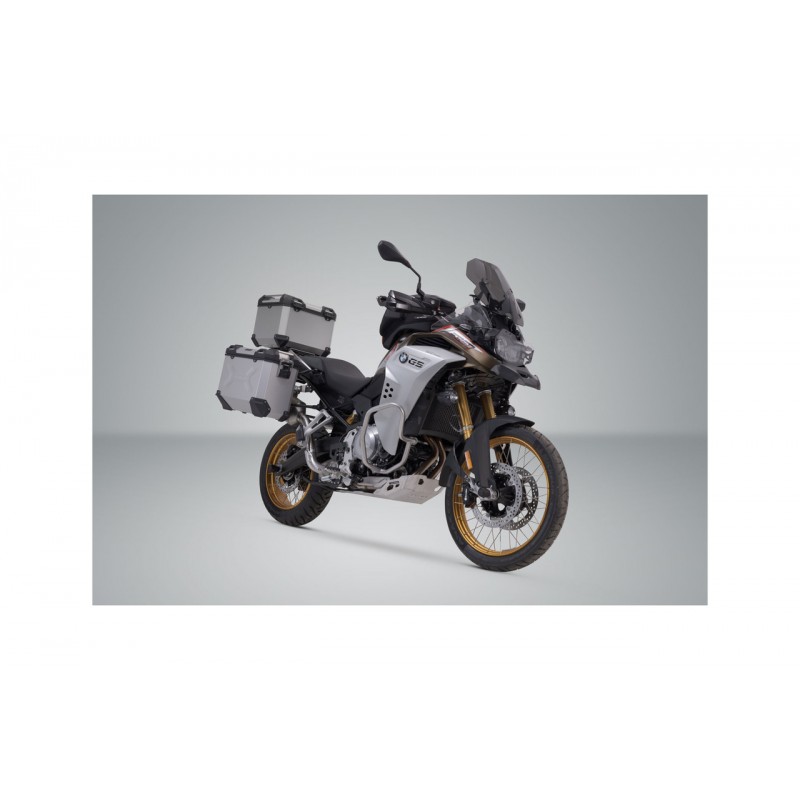

SW-MOTECH Luggage set, stainless steel support ADVENTURE 4052572247020

PRO side bag holder

• Extreme resistance thanks to its optimized shape and hard 2.5 mm steel
• Perfect fit, designed for a close fit to the vehicle
• Completely removable with the new quick releases, even more resistant
• Anti-theft system available as an option
• To fix it permanently, the quick release can be replaced by approved parts (M8)
• Numerous functional perforations compatible, among others, with the RotopaX system
• Easy mounting on the original fixing points
• Effective protection against corrosion by powder coating
• Secure attachment for TRAX, AERO and NANUK side cases as well as SysBag 15 and SysBag 30 with adapter plate
• Adapter kits also available for attaching Givi/Kappa, Krauser and Shad brand panniers

• DETAILS

• MATERIAL: STEEL
• Surface: Powder Coated
• Color: BLACK
• overall weight: AC. 5.3kg
• Extended width on motorcycle: 53.0cm

• Note

• The adapter kit, available separately, is required for aluminum cases from SW-MOTECH and other manufacturers, for AERO ABS side cases, as well as for aluminum cases from SW-MOTECH and other manufacturers. as for SysBags (SysBag 15, 30, WP L) with adapter plate.

Adapter kit for PRO side carriers

• Adapter kit for attaching TRAX or NANUK side cases to the SW-MOTECH PRO side carrier
• It is mounted in the available holes of the SW-MOTECH PRO side carrier
• For the right and left sides

• DETAILS

• Color: SILVER
• overall weight: AC. 0.3kg

TRAX ADV L aluminum case

• Model for the left side of the motorcycle
• Protection against oxidation and abrasion by anodizing
• Resistant and waterproof aluminum suitcase
• Beveled side edges for high ground clearance when cornering, extra protection thanks to fiberglass reinforced plastic corners
• Robotic welding and rivets keep moisture out
• Completely removable lid with quick closure, also when it is in use. full
• 4 large lashing points integrated into the lid design (for example for the tent bag or an additional bag)
• High stability thanks to printed design, welded edges and pre-installed support rail
• Stainless steel hinges and anodized aluminum carry handles
• Opening limiters offer additional stability when using additional luggage on the lid
• replaceable lid gasket
• The integrated membrane allows the lid to be opened easily even in the event of sudden changes in pressure and temperature.
• Quick mounting on all PRO and EVO side carriers (adapter available separately)
• Adapter kits for mounting on brackets from other manufacturers, such as Givi and Hepco & Becker, also available
• Padlock set with 6 simultaneously closing padlocks available as an option and not included in the scope of delivery

• DETAILS

• MATERIAL: ALUMINUM
• material thickness: 0.15cm
• Surface: ANODIZED
• Color: SILVER
• Dimensions: 49.0 x 28.0 x 37.0cm
• overall weight: AC. 5.4kg
• Total volume: 45.0l

• Note

• Also available as a TRAX ADV case system with two side cases, model-specific side carriers, adapters and lock set.

• Required for assembly

• Side carrier, adapter kit, TRAX lock set

TRAX ADV M aluminum case

• Model for the right side of the motorcycle
• Protection against oxidation and abrasion by anodizing
• Resistant and waterproof aluminum suitcase
• Beveled side edges for high ground clearance when cornering, extra protection thanks to fiberglass reinforced plastic corners
• Robotic welding and rivets keep moisture out
• Completely removable lid with quick closure, also when it is in use. full
• 4 large lashing points integrated into the lid design (for example for the tent bag or an additional bag)
• High stability thanks to printed design, welded edges and pre-installed support rail
• Stainless steel hinges and anodized aluminum carry handles
• Opening limiters offer additional stability when using additional luggage on the lid
• replaceable lid gasket
• The integrated membrane allows the lid to be opened easily even in the event of sudden changes in pressure and temperature.
• Quick mounting on all PRO and EVO side carriers (adapter available separately)
• Adapter kits for mounting on brackets from other manufacturers, such as Givi and Hepco & Becker, also available
• Padlock set with 6 simultaneously closing padlocks available as an option and not included in the scope of delivery

• DETAILS

• MATERIAL: ALUMINUM
• Surface: ANODIZED
• Color: SILVER
• Dimensions: 49.0 x 23.0 x 37.0cm
• overall weight: AC. 5.1kg
• Total volume: 37.0l

• Note

• Also available as a TRAX ADV case system with two side cases, model-specific side carriers, adapters and lock set.

• Required for assembly

• Side carrier, adapter kit, TRAX lock set

TRAX cylinder set with PRO anti-theft system

• 9 locks closing simultaneously
• With anti-theft system for PRO side carrier
• Compatible with side cases and top cases of the TRAX ADV and TRAX ION series
• One key for all locks

• DETAILS

• Color: BLACK
• overall weight: AC. 0.5kg

multitool keychain

• The multitool, a practical key ring
• Quick release opening for EVO and PRO side carrier
• Hex key (14 mm), ideal for many motorcycle mirrors
• Hex key in four additional sizes (8, 10, 12, 13 mm)
• Bottle opener
• key ring hole
• With laser-engraved SW-MOTECH logo

• DETAILS

• MATERIAL: STAINLESS STEEL
• Surface: brushed
• Color: SILVER
• overall weight: AC. 0.0kg

ADVENTURE-RACK Luggage Rack

• Particularly robust luggage rack for long journeys on or off the road
• The select manufacturing process and its optimal shape give the ADVENTURE-RACK extra stability
• Extreme resistance to vibrations, shocks and heavy loads: tested under unfavorable conditions in laboratories and in the field
• Numerous functional perforations: corresponding adapter kits for TRAX top cases and SysBags with adapter plate are available separately
• Adapter kits for fixing top cases from other manufacturers are also available (Givi Monokey and Monolock, Krauser, Shad I and II)
• Luggage that is easy to tie down with numerous large grip holes, with the possibility of threading 25 mm fasteners
• Generous support surface (width: 32.9 cm front, 22.5 cm rear, length: 30.3 cm)
• Simple mounting to original mounting points with model-specific extension elements
• Effective corrosion protection by black powder coating
• Made of a light and resistant 4 mm solid aluminum alloy

• DETAILS

• MATERIAL: ALUMINUM
• material thickness: 0.40cm
• Surface: Powder Coated
• Color: BLACK
• overall weight: AC. 1.8kg

• Note

• There is no disassembly of the original BMW luggage rack.
• The motorcycle retains the grab bars for the passenger.
• For original BMW stainless steel luggage rack long

ADVENTURE-RACK adapter kit

• Adapter kit for attaching a TRAX top case to the ADVENTURE-RACK
• Compatible with SW-MOTECH TRAX ADV, TRAX ION and TRAX EVO top cases
• Easy to mount - adapter kit bolts securely to rack

• DETAILS

• MATERIAL: Polyamide / Stainless steel
• Color: BLACK / SILVER
• overall weight: AC. 0.2kg

• Note

• The adapter kits for the SysBag 15/30 bags are included in the scope of delivery of the adapter plate mounted on the rear wall.

TRAX ADV top case

• Protection against oxidation and abrasion by anodizing
• Top quality 1.5mm thick durable aluminum top case
• Hinged lid with opening limiter, stainless steel tension shutter, sturdy carry handles and integrated grip points
• 100% impervious to water and dust thanks to robotic welding and riveting
• Anti-theft protection: with system to lock the lid and the suitcase on the support
• High stability with attractive and functional sheet metal stamping
• Extra strength thanks to fiberglass-reinforced polyamide ends
• Easy to clean surface
• Set with 2 simultaneous locking padlocks available as an option and included in the delivery of the TRAX ADV topcase system

• DETAILS

• MATERIAL: ALUMINUM
• material thickness: 0.15cm
• Surface: ANODIZED
• Color: SILVER
• Dimensions: 41.0 x 34.0 x 33.0cm
• overall weight: AC. 4.8kg
• Total volume: 38.0L

Additional bag TRAX WP M/L

• Additional waterproof bag, which can be attached to the side cases
• For side cases from SW-MOTECH and other brands (eg BMW)
• 15 l of additional storage space, padded
• Wrap around waterproof zipper closure for quick access to all contents
• Overlap lid secures with plastic clips
• Loop to divide the interior into compartments
• Made of robust material, easy to clean
• Simple design with reflective details
• stable carry handle
• 8 D-rings offer different options for flexible lashing (distance of inner D-rings: approx. 24 cm, distance of outer D-rings: approx. 32 cm)

• DETAILS

• MATERIAL: 500D polyester
• Color: BLACK
• Dimensions: 45.0 x 15.0 x 22.0cm
• overall weight: AC. 1.3kg
• Total volume: 15.0L

• Note

• The TRAX WP M/L additional bag fits perfectly on the TRAX ADV and TRAX ION side cases from SW-MOTECH.
