Adventure luggage set
This set is the solution to all your travel worries. The waterproof and dustproof TRAX ADV premium aluminum case as well as two side cases and a top case offer the best protection for your luggage. The model-specific construction of the removable EVO side carrier and the ALU-RACK rack guarantee a perfect fit and secure hold of the aluminum panniers. Our robust TRAX ADV aluminum cases impress with their stability, waterproofing, dust-tightness, elegant appearance, intelligent features and a wide selection of accessories. This Adventure luggage set has two additional TRAX M/L bags to offer more storage space. These are attached to the side cases, are waterproof and allow quick access to their contents.

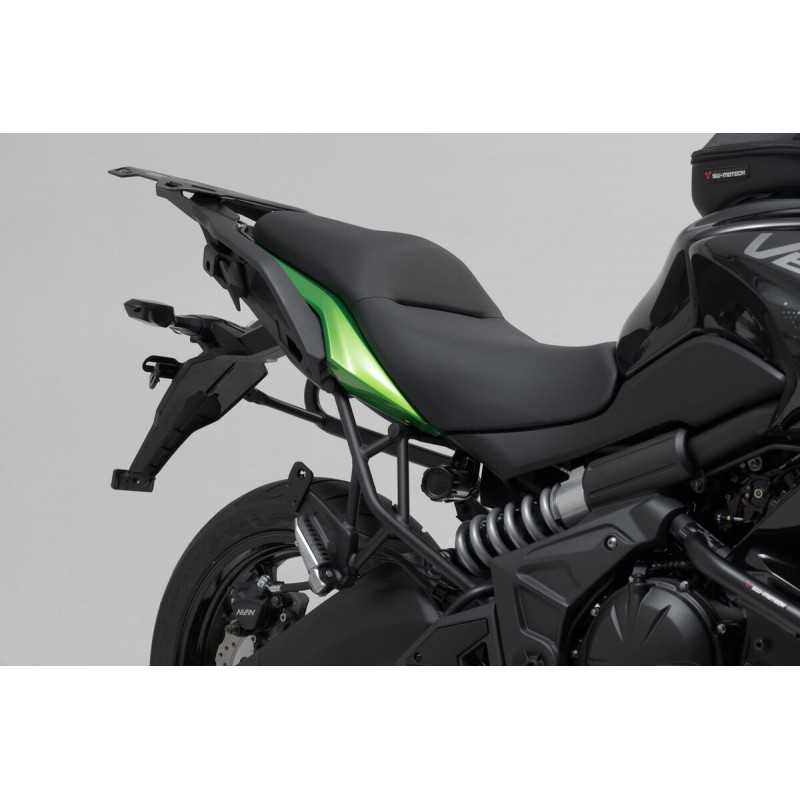

EVO side bag holder
- Removable carrier compatible with almost all common case systems
- Quick release system on discreet fixing points for assembly and disassembly in a matter of seconds
- Can be used with the SW-MOTECH case adapter, which can be purchased separately in combination with cases from TRAX, AERO, Givi/Kappa, Krauser, Hepco & Becker, Shad
- Round and oval tube, hermetically mounted on the motorcycle
- High functionality and stability
- MATERIAL: STEEL
- Surface: Powder Coated
- Color: BLACK
- overall weight: AC. 4.1kg
- Extended width on motorcycle: 50.0cm
- As anti-theft protection, we recommend QLS.00.046.10100/B
- The corresponding adapter kit is required to mount the case. (It appears in the list of accessories)
Adapter kit for EVO side carriers
- Adapter kit for attaching TRAX ADV/ION/EVO or NANUK side cases to SW-MOTECH EVO side carriers
- Mounts to the available holes of the SW-MOTECH EVO Side Stand
- For the right and left sides
- overall weight: AC. 0.3kg
TRAX ADV L aluminum case
- Model for the left side of the motorcycle
- Protects against oxidation and friction with black powder coating, easy-to-clean surface
- Resistant and waterproof aluminum suitcase
- Beveled side edges for high ground clearance when cornering, extra protection thanks to fiberglass reinforced plastic corners
- Robotic welding and rivets keep moisture out
- Fully removable lid with quick release, also when full
- 4 large lashing points integrated into the lid design (for example for the tent bag or an additional bag)
- High stability thanks to design print, welded edges and pre-installed support rail
- Stainless steel hinges and anodized aluminum carry handles
- Opening limiters offer additional stability when using additional luggage on the lid
- replaceable lid gasket
- The integrated membrane allows the lid to be opened easily even in the event of sudden changes in pressure and temperature
- Quick mounting on all PRO and EVO side carriers (adapter available separately)
- Adapter kits for mounting on brackets from other manufacturers, such as Givi and Hepco & Beckers, also available
- Padlock set with 6 simultaneously closing padlocks available as an option and not included in the scope of delivery
- MATERIAL: ALUMINIUM
- material thickness: 0.15cm
- Surface: Powder Coated
- Color: BLACK
- Dimensions: 49.0 x 28.0 x 37.0cm
- overall weight: AC. 5.4kg
- Total volume: 45.0l
- Also available as a TRAX ADV case system with two side cases, model-specific side carriers, adapters and lock set.
- Side carrier, adapter kit, TRAX lock set
TRAX ADV L aluminum case
- Model for the right side of the motorcycle
- Protects against oxidation and friction with black powder coating, easy-to-clean surface
- Resistant and waterproof aluminum suitcase
- Beveled side edges for high ground clearance when cornering, extra protection thanks to fiberglass reinforced plastic corners
- Robotic welding and rivets keep moisture out
- Fully removable lid with quick release, also when full
- 4 large lashing points integrated into the lid design (for example for the tent bag or an additional bag)
- High stability thanks to design print, welded edges and pre-installed support rail
- Stainless steel hinges and anodized aluminum carry handles
- Opening limiters offer additional stability when using additional luggage on the lid
- replaceable lid gasket
- The integrated membrane allows the lid to be opened easily even in the event of sudden changes in pressure and temperature
- Quick mounting on all PRO and EVO side carriers (adapter available separately)
- Adapter kits for mounting on brackets from other manufacturers, such as Givi and Hepco & Beckers, also available
- Padlock set with 6 simultaneously closing padlocks available as an option and not included in the scope of delivery
- MATERIAL: ALUMINIUM
- material thickness: 0.15cm
- Surface: Powder Coated
- Color: BLACK
- Dimensions: 49.0 x 28.0 x 37.0cm
- overall weight: AC. 5.4kg
- Total volume: 45.0l
- Also available as a TRAX ADV case system with two side cases, model-specific side carriers, adapters and lock set.
- Side carrier, adapter kit, TRAX lock set
TRAX locker set with EVO anti-theft system
- 9 locks closing simultaneously
- With anti-theft system for the EVO side carrier
- Compatible with side cases and top cases of the TRAX ADV and TRAX ION series
- One key for all locks
- overall weight: AC. 0.5kg
multitool keychain
- The multitool, a practical keychain
- Quick release opening for EVO and PRO lateral support
- Hex key (14 mm), ideal for many motorcycle mirrors
- Hex key in four additional sizes (8, 10, 12, 13 mm)
- Bottle opener
- key ring hole
- With laser-engraved SW-MOTECH logo
- MATERIAL: STAINLESS STEEL
- Surface: brushed
- Color: SILVER
- overall weight: AC. 0.0kg
ADVENTURE-RACK Luggage rack
- Particularly robust luggage rack for long journeys on or off the road
- The select manufacturing process and its optimal shape give the ADVENTURE-RACK extra stability
- Extreme resistance to vibrations, shocks and heavy loads: tested under unfavorable conditions in laboratories and in the field
- Numerous functional holes: matching adapter kits for TRAX top cases and SysBags with adapter plate are available separately
- Adapter kits for fixing top cases from other manufacturers are also available (Givi Monokey and Monolock, Krauser, Shad I and II)
- Easy-to-lash luggage with numerous wide grip holes, with the ability to thread 25mm clasps
- Generous footprint (width: 32.9 cm front, 22.5 cm rear, length: 30.3 cm)
- Easy mounting to the original fixing points with model-specific extension elements
- Effective corrosion protection by black powder coating
- Made of a light and resistant 4 mm solid aluminum alloy
- MATERIAL: ALUMINIUM
- material thickness: 0.40cm
- Surface: Powder Coated
- Color: BLACK
- overall weight: AC. 1.7kg
ADVENTURE-RACK adapter kit
- Adapter kit for attaching a TRAX top case to the ADVENTURE-RACK
- Compatible with SW-MOTECH TRAX ADV, TRAX ION and TRAX EVO top cases
- Easy to mount - adapter kit bolts securely to rack
- MATERIAL: Polyamide / Stainless steel
- Color: BLACK / SILVER
- overall weight: AC. 0.2kg
- The adapter kits for the SysBag 15/30 bags are included in the scope of delivery of the adapter plate mounted on the rear wall.
TRAX ADV top case
- Its black powder coating protects against oxidation and abrasion
- High-quality, 1.5 mm-thick, durable aluminum topcase
- Hinged lid with opening limiter, stainless steel tension shutter, heavy-duty carry handles and integrated grab points
- 100% impervious to water and dust thanks to robotic welding and riveting
- Anti-theft protection: with system to lock the lid and the case on the support
- High stability with attractive and functional sheet metal stamping
- Extra strength thanks to fiberglass-reinforced polyamide ends
- easy to clean surface
- Set with 2 simultaneously locking padlocks available as an option and included in the scope of delivery of the TRAX ADV top case system
- MATERIAL: ALUMINIUM
- material thickness: 0.15cm
- Surface: Powder Coated
- Color: BLACK
- Dimensions: 41.0 x 34.0 x 33.0cm
- overall weight: AC. 4.8kg
- Total volume: 38.0L
Additional bag TRAX WP M/L
- Additional waterproof bag, which can be attached to the side cases
- For side cases from SW-MOTECH and other brands (eg BMW)
- 15 l of additional storage space, padded
- Wrap around waterproof zipper closure for quick access to all contents
- Overlapping lid is secured with plastic clips
- Loop to divide the interior into compartments
- Made of robust material, easy to clean
- Simple design with reflective details
- stable carry handle
- 8 D-rings offer different options for flexible lashing (distance of inner D-rings: approx. 24 cm, distance of outer D-rings: approx. 32 cm)
- MATERIAL: 500D polyester
- Color: BLACK
- Dimensions: 45.0 x 15.0 x 22.0cm
- overall weight: AC. 1.3kg
- Total volume: 15.0L
- The TRAX WP M/L additional bag fits perfectly on the TRAX ADV and TRAX ION side cases from SW-MOTECH.
delivery content
- 1 x TRAX ADV top case, black, 38.00 l
- 1 x TRAX ADV L aluminum case, black, 45.00 l, left
- 1 x TRAX ADV L aluminum case, black, 45.00 l, right
- 2 x EVO side bag holder
- 2 x Adapter kit for EVO side carriers
- 2 x Anti-theft system for EVO side carrier
- 1 x ADVENTURE-RACK Luggage rack
- 1 x ADVENTURE-RACK adapter kit
- 3 x set of TRAX locks
- 2 x additional bag TRAX WP M/L
- 6 x Opening limiter
- 3 x Storage Bag
- 1 x Multitool Keychain
- Assembly instructions
- mounting hardware
DETAILS
- overall weight: AC. 31.3kg
- Total volume: 158.0 l
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
