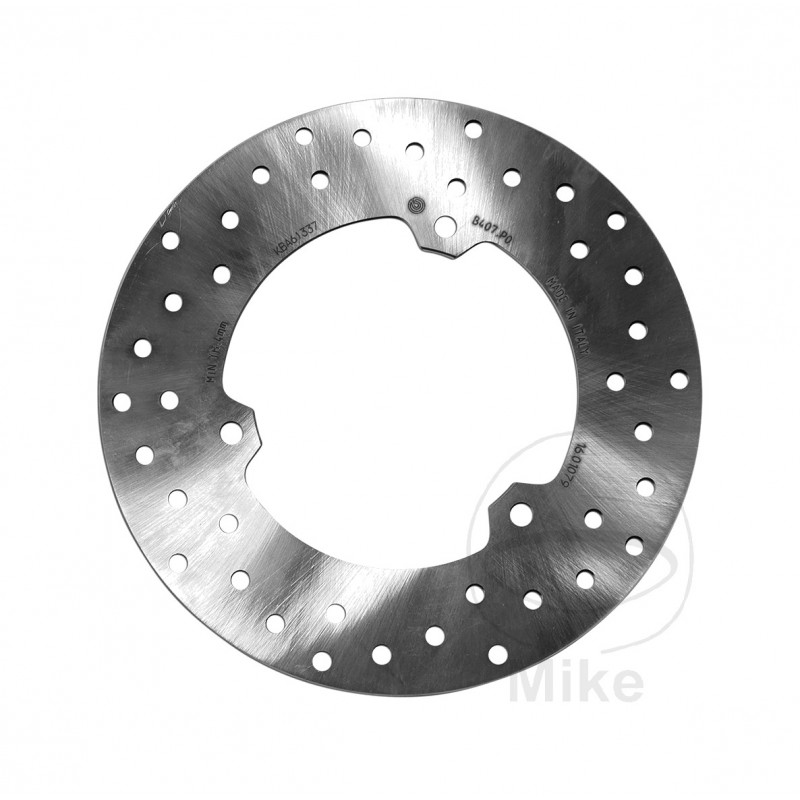

BREMBO Brake Disc 7600841

Brembo Oro series fixed discs are manufactured from a single piece of stainless steel casting.
The manufacturing process adheres to strict tolerances in terms of design and construction.
The machining cycles guarantee maximum suitability and concentricity.

Brembo's extensive experience has allowed them to determine the appropriate shapes, tolerances, and sizes for each type of motorcycle and application. In fact, the special design of Brembo discs, achieved through careful study of machining tolerances, improves the transmission of braking torque while offering greater resistance to mechanical and thermal stresses.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 106MM
CIRCLE SIZE: 126 MM
QUANTITY OF HOLES: 3
HOLE DIAMETER: 8.6 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this item is compatible with the following makes, models and years:
COMPATIBLE WITH Yamaha MT03 320 A ABS 2016-2020
COMPATIBLE WITH Yamaha MT03 320 A ABS MTN320-A 2021-2024
COMPATIBLE WITH Yamaha R3 320 A ABS 2022-2024
COMPATIBLE WITH Yamaha R3 320 A World GP 60th Anniversary ABS 2022-2023
COMPATIBLE WITH Yamaha YZF-R3 320 A ABS 2015-2021
