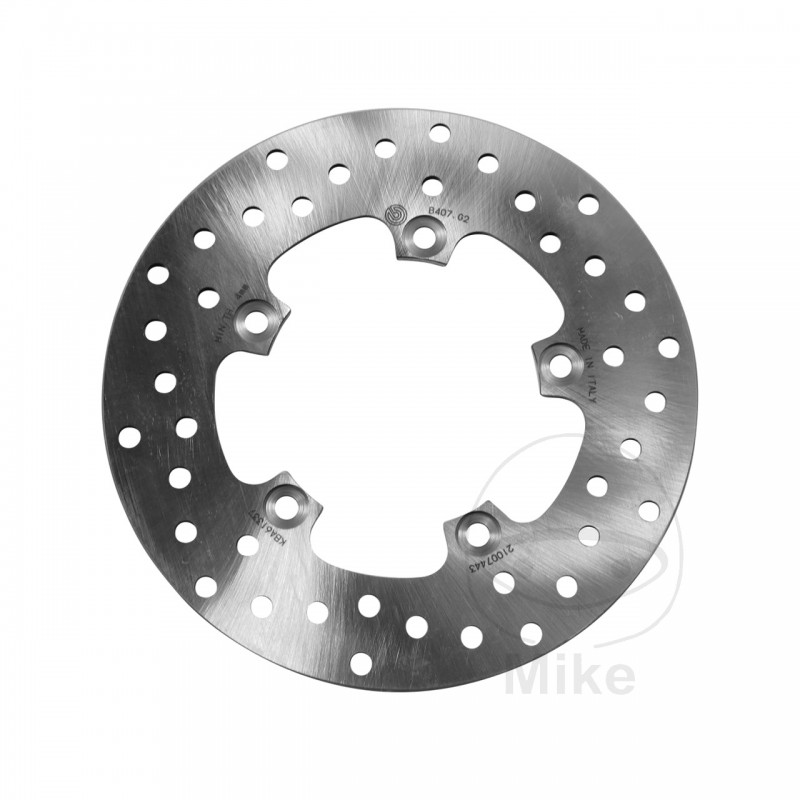

BREMBO Brake Disc 7600761

Brembo Oro series fixed discs are manufactured from a single piece of stainless steel casting.
The manufacturing process adheres to strict tolerances in terms of design and construction.
The machining cycles guarantee maximum suitability and concentricity.

Brembo's extensive experience has allowed them to determine the appropriate shapes, tolerances, and sizes for each type of motorcycle and application. In fact, the special design of Brembo discs, achieved through careful study of machining tolerances, improves the transmission of braking torque while offering greater resistance to mechanical and thermal stresses.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 102MM
CIRCLE SIZE: 120 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this item is compatible with the following makes, models and years:
COMPATIBLE WITH Aprilia AF1 50 1989
COMPATIBLE WITH Aprilia AF1 50 Futura 1990-1992
COMPATIBLE WITH Aprilia AF1 50 Project 108 1988
COMPATIBLE WITH Aprilia RS 50 Extrema/Replica 1993-1998
COMPATIBLE WITH MBK XQ 125 Thunder 2001-2003
COMPATIBLE WITH Yamaha XQ 125 Maxster 2001-2003
COMPATIBLE WITH Yamaha XQ 150 Maxster 2001-2002
