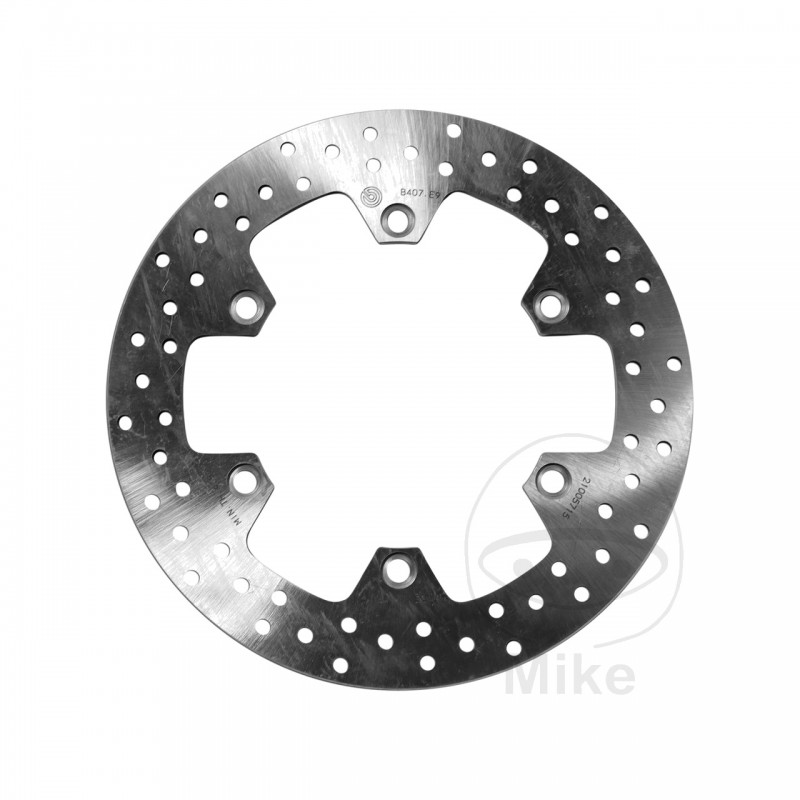

BREMBO Brake Disc 7600747

Brembo Oro series fixed discs are manufactured from a single piece of stainless steel casting.
The manufacturing process adheres to strict tolerances in terms of design and construction.
The machining cycles guarantee maximum suitability and concentricity.

Brembo's extensive experience has allowed them to determine the appropriate shapes, tolerances, and sizes for each type of motorcycle and application. In fact, the special design of Brembo discs, achieved through careful study of machining tolerances, improves the transmission of braking torque while offering greater resistance to mechanical and thermal stresses.
OUTER DIAMETER: 276MM
INSIDE DIAMETER: 144.5MM
CIRCLE SIZE: 166 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this item is compatible with the following makes, models and years:
COMPATIBLE WITH Daelim VJ 125 Fi Roadwin 2007-2016
COMPATIBLE WITH Daelim VJ 125 Roadwin 2004-2007
COMPATIBLE WITH Daelim VJF 125 R Fi Roadwin 2007-2018
COMPATIBLE WITH Daelim VJF 250 R Fi Roadwin 2010-2016
COMPATIBLE WITH Daelim VL 125 Daystar Classic llanta de radios 2002-2005
COMPATIBLE WITH Daelim VL 125 Daystar Classic llanta de radios 80 Km/h 2002-2003
COMPATIBLE WITH Daelim VL 125 Daystar llanta de fundición 2000-2007
COMPATIBLE WITH Daelim VL 125 Daystar llanta de fundición 80 km/h 2000-2003
COMPATIBLE WITH Daelim VL 125 Fi Daystar CBS 2017-2019
COMPATIBLE WITH Daelim VL 125 Fi Daystar CBS Speichenrad 2020-2021
COMPATIBLE WITH Daelim VL 125 Fi Daystar Llanta con radios 2013-2016
COMPATIBLE WITH Daelim VL 125 Fi Daystar llanta de fundición 2008-2012
COMPATIBLE WITH Daelim VL 250 Fi Daystar 2013-2019
COMPATIBLE WITH Daelim VT 125 80 km/h 1998-2000
COMPATIBLE WITH Daelim VT 125 1998-2000
COMPATIBLE WITH Daelim VT 125 Evolution 2000-2002
COMPATIBLE WITH Daelim VT 125 Evolution 80 km/h 2000-2002
COMPATIBLE WITH Honda CB 1000 F Super Four 1993-1996
COMPATIBLE WITH Honda CB 1100 F Bol d´Or 1983-1984
COMPATIBLE WITH Honda CB 1300 F Super Four 1998-2001
COMPATIBLE WITH Honda CB 1300 F Super Four Special Edition 2002
COMPATIBLE WITH Honda CBR 1000 F 1987-1992
COMPATIBLE WITH Honda CBR 125 R 2004-2005
COMPATIBLE WITH Honda CBR 125 RS Repsol 2005-2007
COMPATIBLE WITH Honda CBR 125 RW 80 km/h 2006-2010
COMPATIBLE WITH Honda CBR 125 RW 2005-2010
COMPATIBLE WITH Honda CBR 600 F 1987-1990
COMPATIBLE WITH Honda CBX 750 F 1984-1986
COMPATIBLE WITH Honda CB-X4 1300 DC 1997-2002
COMPATIBLE WITH Honda CX 500 TC Turbo 1982
COMPATIBLE WITH Honda CX 650 T Turbo 1983-1985
COMPATIBLE WITH Honda FJS 400 A SW-T ABS 2009-2016
COMPATIBLE WITH Honda FJS 400 D SW-T 2009
COMPATIBLE WITH Honda FJS 600 A Silver Wing ABS 2003-2010
COMPATIBLE WITH Honda FJS 600 A SW-T ABS 2011-2016
COMPATIBLE WITH Honda FX 650 Vigor 1999-2000
COMPATIBLE WITH Honda GB 500 Clubman 1989-1990
COMPATIBLE WITH Honda GL 1500 Goldwing 1988-1989
COMPATIBLE WITH Honda NT 650 V Deauville 1998-2001
COMPATIBLE WITH Honda NT 650 V Deauville CBS 2002-2005
COMPATIBLE WITH Honda PC 800 Pacific Coast 1989-1990
COMPATIBLE WITH Honda SLR 650 1997-1998
COMPATIBLE WITH Honda VF 1000 F Interceptor 1984-1985
COMPATIBLE WITH Honda VF 1000 F2 Bol d´Or 1985
COMPATIBLE WITH Honda VF 1000 R 1984-1986
COMPATIBLE WITH Honda VFR 400 R 1986
COMPATIBLE WITH Honda VFR 750 F 1986-1987
COMPATIBLE WITH Honda VT 1100 C2 Shadow ACE 1995-2000
COMPATIBLE WITH Honda VT 1100 C3 Shadow Aero 1998-2000
COMPATIBLE WITH Honda XBR 500 S llanta de radios 1987-1989
COMPATIBLE WITH Honda XL 600 V Transalp 1987-1987
COMPATIBLE WITH Honda XL 600 V Transalp 1989-1996
COMPATIBLE WITH Honda XL 600 V Transalp piñón engranaje fino 1988
COMPATIBLE WITH Honda XL 600 V Transalp piñón engranaje grueso 1988
COMPATIBLE WITH Honda XLV 750 R 1983-1985
COMPATIBLE WITH Triumph Tiger 900 1993-1998
