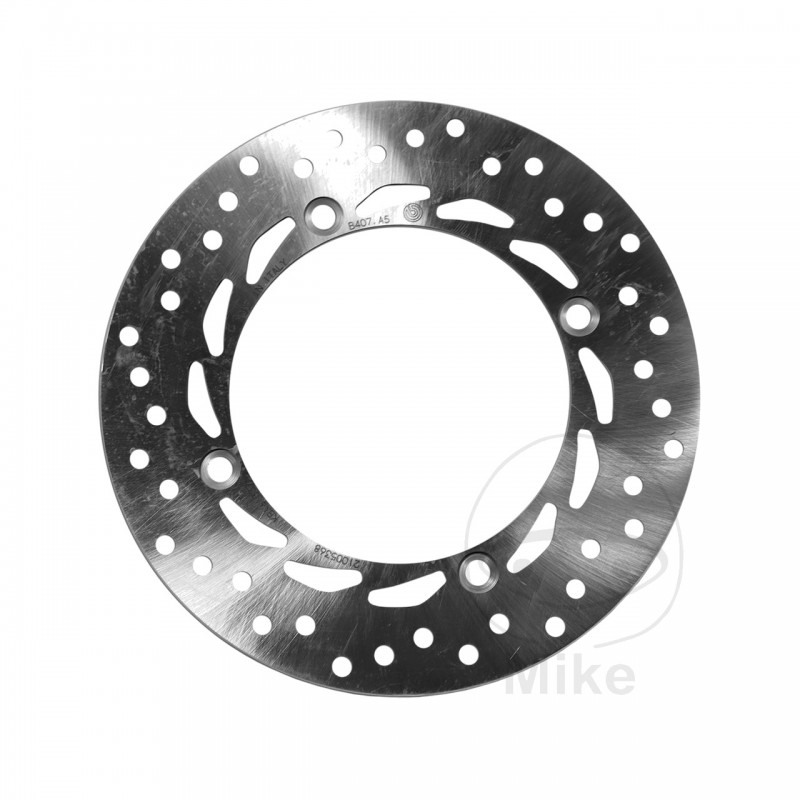

BREMBO Brake Disc 7600702

Brembo Oro series fixed discs are manufactured from a single piece of stainless steel casting.
The manufacturing process adheres to strict tolerances in terms of design and construction.
The machining cycles guarantee maximum suitability and concentricity.

Brembo's extensive experience has allowed them to determine the appropriate shapes, tolerances, and sizes for each type of motorcycle and application. In fact, the special design of Brembo discs, achieved through careful study of machining tolerances, improves the transmission of braking torque while offering greater resistance to mechanical and thermal stresses.
OUTER DIAMETER: 256MM
INSIDE DIAMETER: 144MM
CIRCLE SIZE: 166 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this item is compatible with the following makes, models and years:
COMPATIBLE WITH Honda CB 450 S 1986-1989
COMPATIBLE WITH Honda NX 650 Dominator 1990-2000
COMPATIBLE WITH Honda NX 650 Dominator piñón engranaje fino 1989
COMPATIBLE WITH Honda NX 650 Dominator piñón engranaje grueso 1988
COMPATIBLE WITH Honda XL 1000 V Varadero 1999-2002
COMPATIBLE WITH Honda XL 600 V Transalp 1997-2000
COMPATIBLE WITH Honda XL 650 V Transalp 2000-2007
COMPATIBLE WITH Honda XL 700 V Transalp 2008-2011
COMPATIBLE WITH Honda XL 700 VA Transalp ABS 2008-2013
COMPATIBLE WITH Honda XR 650 L 1993-1996
COMPATIBLE WITH Honda XRV 750 Africa Twin 1990-2003
