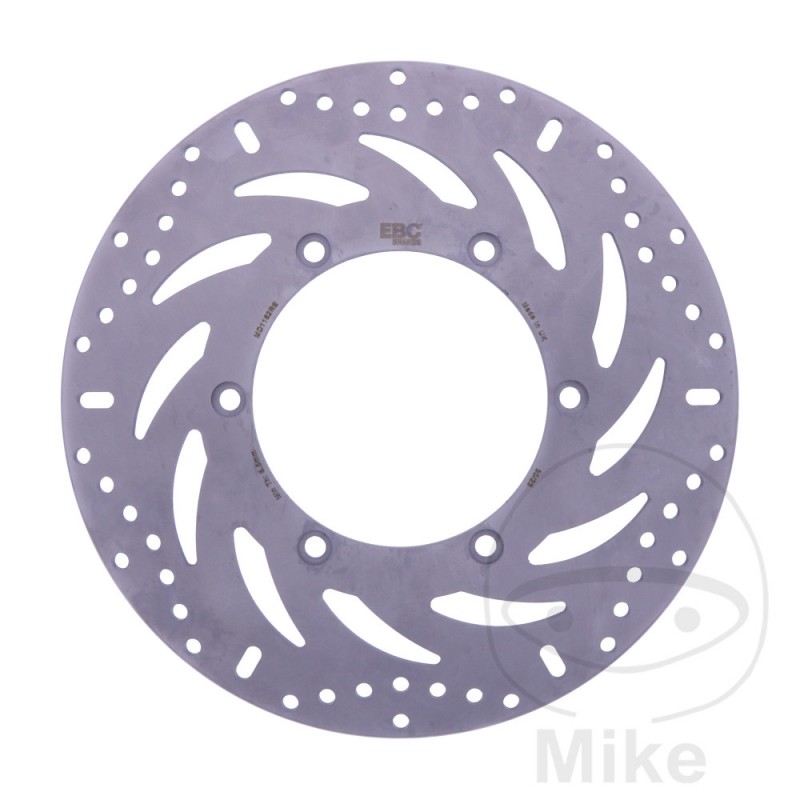

EBC right brake disc 7600467

EBC HPSR brake disc, rigid version. MADE IN UK.

The goal in development is to improve braking performance compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pad already during braking. Only in this area can a slight flash of rust form after a long period of use.

The brake discs are drilled in the shape of a bird's cage so that as few holes as possible can be used and at the same time optimize the cleaning of the brake disc from rainwater and brake dust. The fewer holes, the better the braking performance in the wet and the less wear.

- Brake ring milled from forged HPSR low carbon steel.

- Therefore, there is no distortion of the brake disc, even with the highest load.

- There is no vitrification of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect against corrosion.

- Minimum manufacturing tolerances.

- EBC recommends EBC Double-H Sinter brake pads for the best braking performance.

- Independent design.


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda VTX 1300 S 75 CV, 55 kw 2cil. SC52A 3 Bastidores: 1HF SC52A-3A000001-1HF SC52A-3A099999 2003
COMPATIBLE WITHHonda VTX 1300 S 75 CV, 55 kw 2cil. SC52A 4 Bastidores: 1HF SC52A-4A100001-1HF SC52A-4A199999 2004
COMPATIBLE WITHHonda VTX 1300 S 75 CV, 55 kw 2cil. SC52A 5 Bastidores: 1HF SC52A-5A200001-1HF SC52A-5A299999 2005
COMPATIBLE WITHHonda VTX 1300 S 75 CV, 55 kw 2cil. SC52A 6 Bastidores: 1HF SC52A-6A300001-1HF SC52A-6A399999 2006
COMPATIBLE WITHHonda VTX 1300 S 75 CV, 55 kw 2cil. SC52A 7 Bastidores: 1HF SC52A-7A400001-- 2007
