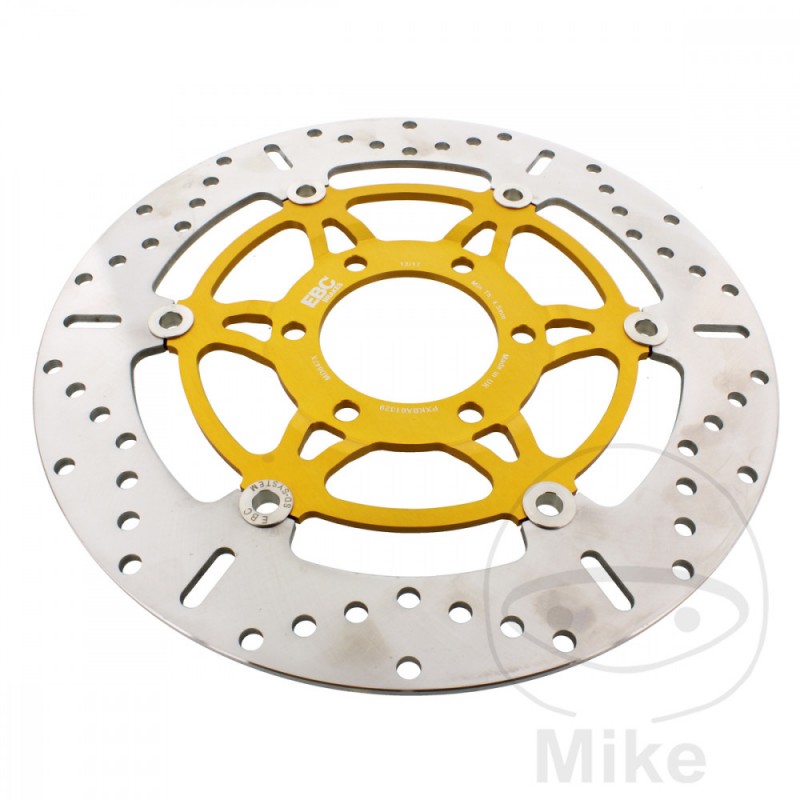

EBC Floating brake disc X 760.04.59
€200.34
€223.90
Save €23.56Tax included
EBC X / XC series - Fully floating brake discs for the front wheel
These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.
The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.
The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.
The new rotors feature EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.
Such deterioration occurs when the brake disc heats up under heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.
What is the SD system? It is the new square riveting system from EBC. This system completely prevents the distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 78.3MM
CIRCLE SIZE: 100.5 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
thickness: 5mm
FILLING: 10MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Triumph Daytona 955 i monobasculante 128 CV, 94 kw 3cil. T595 Bastidores: 502 - 71699-502 - 1999
Triumph Daytona 955 i monobasculante 128 CV, 94 kw 3cil. T595 Bastidores: 502 --502 - 2000-2001
Triumph Daytona 955 i monobasculante 128 CV, 94 kw 3cil. T595 Bastidores: 503 --503 - 71698 1999
Triumph Daytona 955 i monobasculante 98 CV, 72 kw 3cil. T595 Bastidores: 502 - 71699-502 - 1999
Triumph Daytona 955 i monobasculante 98 CV, 72 kw 3cil. T595 Bastidores: 502 --502 - 2000-2001
Triumph Daytona 955 i monobasculante 98 CV, 72 kw 3cil. T595 Bastidores: 503 --503 - 71698 1997-1999
Triumph Masterblaster 955 SS 105 CV, 77 kw 4cil. 596T Bastidores: 596 --596 - 1996-1997
Triumph Speed Triple 900 106 CV, 78 kw 3cil. T509 Bastidores: 501 --501 - 1997-1998
Triumph Speed Triple 900 98 CV, 72 kw 3cil. T509 Bastidores: 501 --501 - 1997-1998
Triumph Speed Triple 955 EFI 108 CV, 79 kw 3cil. T509 Bastidores: 509 --509 - 141871 2001
Triumph Speed Triple 955 EFI 108 CV, 79 kw 3cil. T509 Bastidores: 509 --509 - 1999-2000
Triumph Speed Triple 955 EFI 98 CV, 72 kw 3cil. T509 Bastidores: 509 --509 - 141871 2001
Triumph Speed Triple 955 EFI 98 CV, 72 kw 3cil. T509 Bastidores: 509 --509 - 1999-2000
Triumph Sprint 955 RS basculante dos brazos 103 CV, 76 kw 3cil. T695 Bastidores: 615 --615 - 139276 2000-2001
Triumph Sprint 955 RS basculante dos brazos 120/98 CV, 88/72 kw 3cil. T695AC Bastidores: 666 - 139277-666 - 161317 2002
Triumph Sprint 955 RS basculante dos brazos 98 CV, 72 kw 3cil. T695 Bastidores: 615 --615 - 139276 2000-2001
Triumph Sprint 955 RS Last Edition monobasculante 120/98 CV, 88/72 kw 3cil. T695AC Bastidores: 666 --666 - 2004
Triumph Sprint 955 RS monobasculante 120/98 CV, 88/72 kw 3cil. T695AC Bastidores: 666 - 161318-666 - 186150 2002
Triumph Sprint 955 RS monobasculante 120/98 CV, 88/72 kw 3cil. T695AC Bastidores: 666 - 186151-666 - 2003
Triumph Sprint 955 ST 103 CV, 76 kw 3cil. T695 Bastidores: 610 --610 - 139276 2001
Triumph Sprint 955 ST 103 CV, 76 kw 3cil. T695 Bastidores: 610 --610 - 1999-2000
Triumph Sprint 955 ST 120/98 CV, 88/72 kw 3cil. T695AB Bastidores: 665 - 139277-665 - 2002
Triumph Sprint 955 ST 120/98 CV, 88/72 kw 3cil. T695AB Bastidores: 665 - 186151-665 - 208166 2004
Triumph Sprint 955 ST 120/98 CV, 88/72 kw 3cil. T695AB Bastidores: 665 --665 - 186150 2003
Triumph Sprint 955 ST 98 CV, 72 kw 3cil. T695 Bastidores: 610 --610 - 139276 2001
Triumph Sprint 955 ST 98 CV, 72 kw 3cil. T695 Bastidores: 610 --610 - 1999-2000
These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.
The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.
The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.
The new rotors feature EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.
Such deterioration occurs when the brake disc heats up under heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.
What is the SD system? It is the new square riveting system from EBC. This system completely prevents the distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 78.3MM
CIRCLE SIZE: 100.5 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
thickness: 5mm
FILLING: 10MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Triumph Daytona 955 i monobasculante 128 CV, 94 kw 3cil. T595 Bastidores: 502 - 71699-502 - 1999
Triumph Daytona 955 i monobasculante 128 CV, 94 kw 3cil. T595 Bastidores: 502 --502 - 2000-2001
Triumph Daytona 955 i monobasculante 128 CV, 94 kw 3cil. T595 Bastidores: 503 --503 - 71698 1999
Triumph Daytona 955 i monobasculante 98 CV, 72 kw 3cil. T595 Bastidores: 502 - 71699-502 - 1999
Triumph Daytona 955 i monobasculante 98 CV, 72 kw 3cil. T595 Bastidores: 502 --502 - 2000-2001
Triumph Daytona 955 i monobasculante 98 CV, 72 kw 3cil. T595 Bastidores: 503 --503 - 71698 1997-1999
Triumph Masterblaster 955 SS 105 CV, 77 kw 4cil. 596T Bastidores: 596 --596 - 1996-1997
Triumph Speed Triple 900 106 CV, 78 kw 3cil. T509 Bastidores: 501 --501 - 1997-1998
Triumph Speed Triple 900 98 CV, 72 kw 3cil. T509 Bastidores: 501 --501 - 1997-1998
Triumph Speed Triple 955 EFI 108 CV, 79 kw 3cil. T509 Bastidores: 509 --509 - 141871 2001
Triumph Speed Triple 955 EFI 108 CV, 79 kw 3cil. T509 Bastidores: 509 --509 - 1999-2000
Triumph Speed Triple 955 EFI 98 CV, 72 kw 3cil. T509 Bastidores: 509 --509 - 141871 2001
Triumph Speed Triple 955 EFI 98 CV, 72 kw 3cil. T509 Bastidores: 509 --509 - 1999-2000
Triumph Sprint 955 RS basculante dos brazos 103 CV, 76 kw 3cil. T695 Bastidores: 615 --615 - 139276 2000-2001
Triumph Sprint 955 RS basculante dos brazos 120/98 CV, 88/72 kw 3cil. T695AC Bastidores: 666 - 139277-666 - 161317 2002
Triumph Sprint 955 RS basculante dos brazos 98 CV, 72 kw 3cil. T695 Bastidores: 615 --615 - 139276 2000-2001
Triumph Sprint 955 RS Last Edition monobasculante 120/98 CV, 88/72 kw 3cil. T695AC Bastidores: 666 --666 - 2004
Triumph Sprint 955 RS monobasculante 120/98 CV, 88/72 kw 3cil. T695AC Bastidores: 666 - 161318-666 - 186150 2002
Triumph Sprint 955 RS monobasculante 120/98 CV, 88/72 kw 3cil. T695AC Bastidores: 666 - 186151-666 - 2003
Triumph Sprint 955 ST 103 CV, 76 kw 3cil. T695 Bastidores: 610 --610 - 139276 2001
Triumph Sprint 955 ST 103 CV, 76 kw 3cil. T695 Bastidores: 610 --610 - 1999-2000
Triumph Sprint 955 ST 120/98 CV, 88/72 kw 3cil. T695AB Bastidores: 665 - 139277-665 - 2002
Triumph Sprint 955 ST 120/98 CV, 88/72 kw 3cil. T695AB Bastidores: 665 - 186151-665 - 208166 2004
Triumph Sprint 955 ST 120/98 CV, 88/72 kw 3cil. T695AB Bastidores: 665 --665 - 186150 2003
Triumph Sprint 955 ST 98 CV, 72 kw 3cil. T695 Bastidores: 610 --610 - 139276 2001
Triumph Sprint 955 ST 98 CV, 72 kw 3cil. T695 Bastidores: 610 --610 - 1999-2000
760.04.59
10 Items
Data sheet
- QUANTITY OF HOLES
- 6
- STUFFED
- 10 MM
- EXTERNAL DIAMETER
- 320MM
- CIRCLE MEASUREMENT
- 100.5MM
- HOLE DIAMETER
- 10.5MM
- INSIDE DIAMETER
- 100.5MM
- VERSION
- FLOATING
- THICKNESS
- 5 MM
