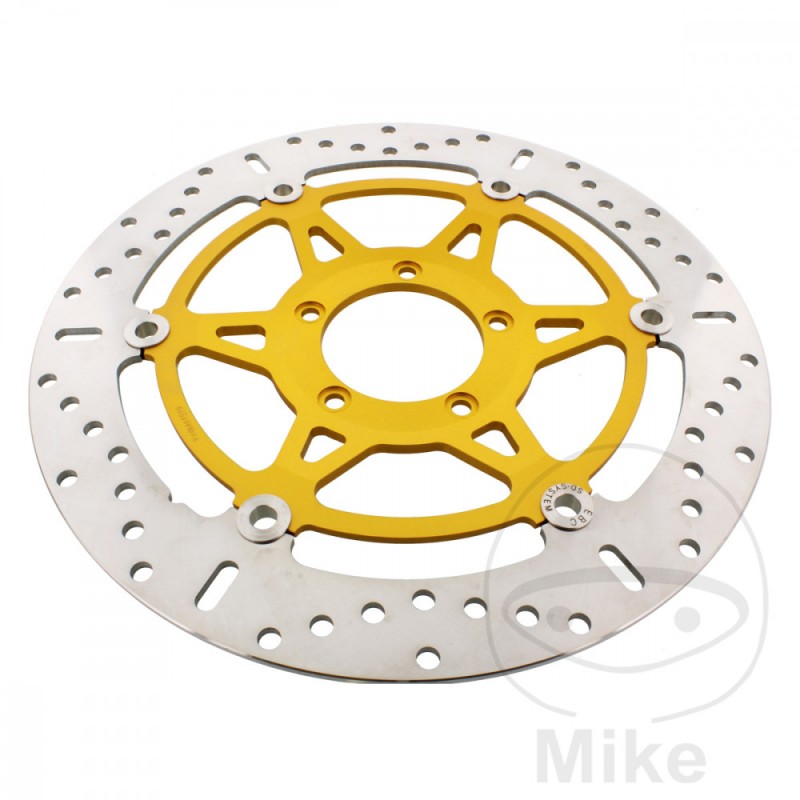

EBC Floating brake disc X 760.04.57

EBC X / XC series - Fully floating brake discs for the front wheel

These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.

The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.

The new rotors feature EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.

Such deterioration occurs when the brake disc heats up under heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.

What is the SD system? It is the new square riveting system from EBC. This system completely prevents the distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 72.2MM
CIRCLE SIZE: 90 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
THICKNESS: 4.5MM
PADDING: 14.75MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Ducati 749 749 Biposto 103 CV, 76 kw 2cil. H500AA Bastidores: --- 2003
Ducati 749 749 Biposto 103 CV, 76 kw 2cil. H500AA/AB Bastidores: --- 2004
Ducati 749 749 Biposto 108 CV, 80 kw 2cil. H500AA Bastidores: --- 2005-2007
Ducati 749 749 Dark 103 CV, 76 kw 2cil. H500AA/AB Bastidores: --- 2004
Ducati 749 749 Dark 108 CV, 80 kw 2cil. H500AA Bastidores: --- 2005-2007
Ducati 749 749 R Monoposto 116 CV, 85 kw 2cil. H501AD/AF Bastidores: --- 2004
Ducati 749 749 R Monoposto 121 CV, 89 kw 2cil. H501AF/AG Bastidores: --- 2005
Ducati 749 749 R Monoposto 121 CV, 89 kw 2cil. H501AG/AH Bastidores: --- 2006-2007
Ducati 749 749 S Biposto/Monoposto 103 CV, 76 kw 2cil. H500AA Bastidores: --- 2003
Ducati 749 749 S Biposto/Monoposto 110 CV, 81 kw 2cil. H500AD/AC/AE/AF Bastidores: --- 2004
Ducati 749 749 S Biposto/Monoposto 116 CV, 85 kw 2cil. H500AD/AC/AE Bastidores: --- 2005
Ducati 749 749 S Biposto/Monoposto 116 CV, 85 kw 2cil. H500AD/AC/AE/AF Bastidores: --- 2006-2007
Ducati 999 999 Biposto/Monoposto 124 CV, 91 kw 2cil. H400AA Bastidores: --- 2003
Ducati 999 999 Biposto/Monoposto 124 CV, 91 kw 2cil. H400AA/AB/AC Bastidores: --- 2004
Ducati 999 999 Biposto/Monoposto 140 CV, 103 kw 2cil. H400AE/AF/AG Bastidores: --- 2006
Ducati 999 999 Biposto/Monoposto 140 CV, 103 kw 2cil. H400AE/AF/AG/AH/H500AG Bastidores: --- 2005
Ducati 999 999 R Biposto/Monoposto 139 CV, 102 kw 2cil. H400AA/AM Bastidores: --- 2003
Ducati 999 999 R Biposto/Monoposto 139 CV, 102 kw 2cil. H401AA Bastidores: --- 2004
Ducati 999 999 R Biposto/Monoposto 150 CV, 110 kw 2cil. H401AA Bastidores: --- 2006
Ducati 999 999 R Biposto/Monoposto 150 CV, 110 kw 2cil. H401AA/H402AA Bastidores: --- 2005
Ducati 999 999 S Biposto/Monoposto 136 CV, 100 kw 2cil. H400AA Bastidores: --- 2003
Ducati 999 999 S Biposto/Monoposto 136 CV, 100 kw 2cil. H400AA/AE/AF/AG/AH Bastidores: --- 2004
Ducati 999 999 S Biposto/Monoposto 143 CV, 105 kw 2cil. H400AE/AF/AG/AH Bastidores: --- 2005-2006
