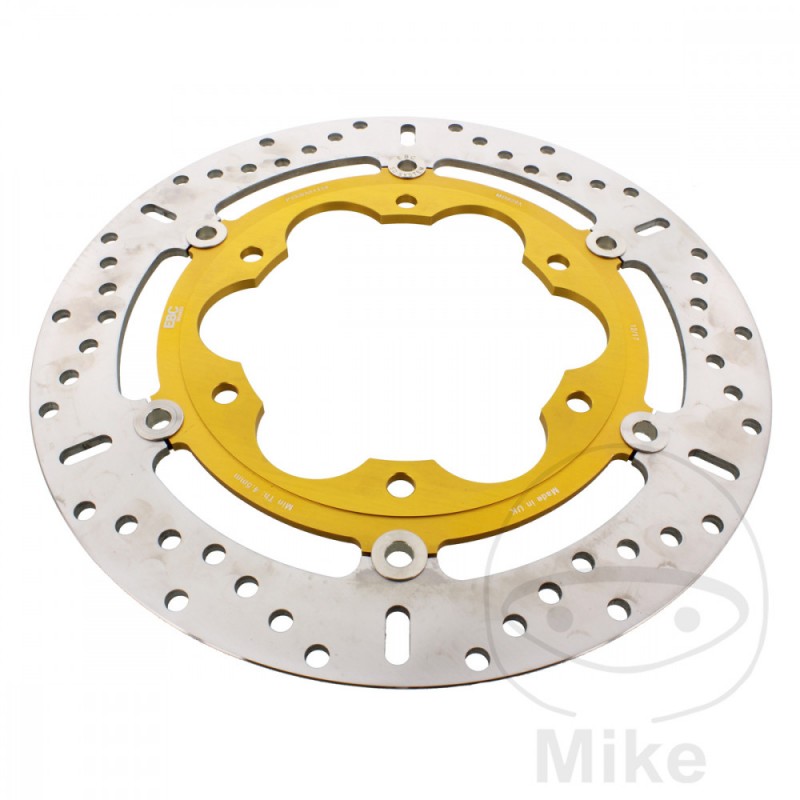

EBC Floating brake disc X 760.04.56

EBC X / XC series - Fully floating brake discs for the front wheel

These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.

The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.

The new rotors feature EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.

Such deterioration occurs when the brake disc heats up under heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.

What is the SD system? It is the new square riveting system from EBC. This system completely prevents the distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 144.3MM
CIRCLE SIZE: 166 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Triumph Thruxton 900 34 CV, 25 kw 2cil. 986ME Bastidores: 1 --1 - 2004-2007
Triumph Thruxton 900 69 CV, 51 kw 2cil. 986ME Bastidores: 1 --1 - 2004-2007
Triumph Thruxton 900 EFI 69/34 CV, 51/25 kw 2cil. 986ME2 Bastidores: SMTTJ9147G - 463262-SMTTJ9147G - 2011
Triumph Thruxton 900 EFI 69/34 CV, 51/25 kw 2cil. 986ME2 Bastidores: SMTTJ9147G --SMTTJ9147G - 2008-2010
Triumph Thruxton 900 EFI 69/34 CV, 51/25 kw 2cil. 986ME2 Bastidores: SMTTJ9147G --SMTTJ9147G - 2012-2012
Triumph Thruxton 900 EFI 69/34 CV, 51/25 kw 2cil. 986ME2 Bastidores: SMTTJ9147G --SMTTJ9147G - 463261 2011
Triumph Thruxton 900 EFI 69/48 CV, 51/35 kw 2cil. 986ME2 Bastidores: SMTTJ9147G - 694350-SMTTJ9147G - 2015
Triumph Thruxton 900 EFI 69/48 CV, 51/35 kw 2cil. 986ME2 Bastidores: SMTTJ9147G --SMTTJ9147G - 2013
Triumph Thruxton 900 EFI 69/48 CV, 51/35 kw 2cil. 986ME2 Bastidores: SMTTJ9147G --SMTTJ9147G - 694349 2014-2015
Triumph Thruxton 900 EFI Ace 69/48 CV, 51/35 kw 2cil. 986ME2 Bastidores: SMTTJ9147G - 694350-SMTTJ9147G - 2015
