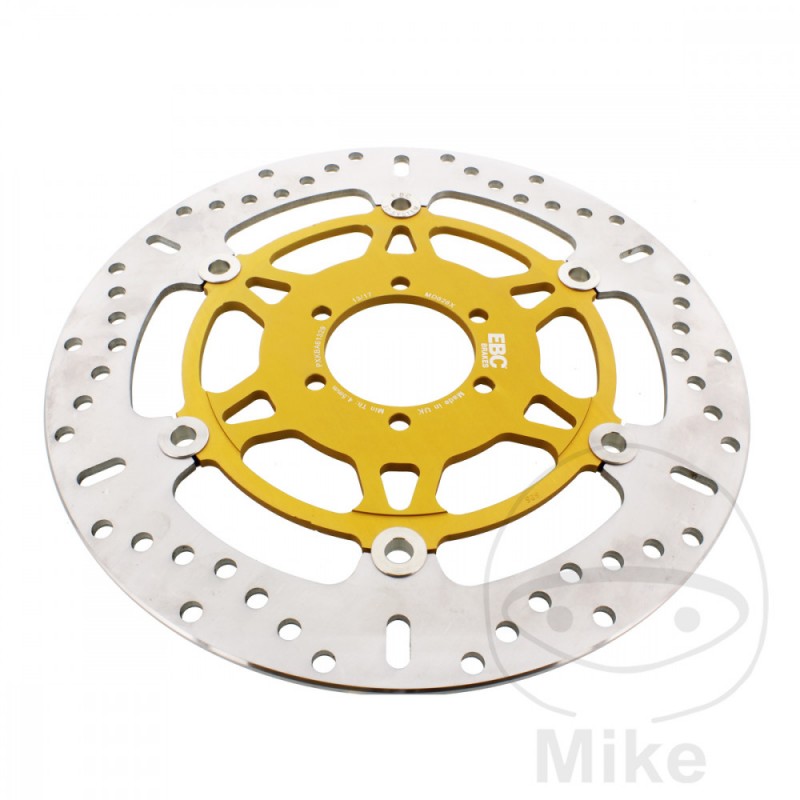

EBC Floating brake disc X 760.04.54

EBC X / XC series - Fully floating brake discs for the front wheel

These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.

The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.

The new rotors feature EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.

Such deterioration occurs when the brake disc heats up under heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.

What is the SD system? It is the new square riveting system from EBC. This system completely prevents the distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 300MM
INSIDE DIAMETER: 64.2MM
CIRCLE SIZE: 80 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.5 MM
thickness: 5mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Ducati Monster 620 ie DD 34 CV, 25 kw 2cil. M408AA/M409AA Bastidores: --- 2005-2006
Ducati Monster 620 ie DD 63 CV, 46 kw 2cil. M408AA/M409AA Bastidores: --- 2005-2006
Ducati Monster 620 ie DD Dark 34 CV, 25 kw 2cil. M408AA/M409AA Bastidores: --- 2005
Ducati Monster 620 ie DD Dark 63 CV, 46 kw 2cil. M408AA/M409AA Bastidores: --- 2005
Ducati Monster 620 ie MD Dark 34 CV, 25 kw 2cil. M403AC/AD Bastidores: --- 2005
Ducati Monster 620 ie MD Dark 34 CV, 25 kw 2cil. M408AA/M409AA Bastidores: --- 2006
Ducati Monster 620 ie MD Dark 63 CV, 46 kw 2cil. M403AC/AD Bastidores: --- 2005
Ducati Monster 620 ie MD Dark 63 CV, 46 kw 2cil. M408AA/M409AA Bastidores: --- 2006
Ducati Monster 695 72 CV, 53 kw 2cil. M419AA/M420AA Bastidores: --- 2007-2008
Ducati Monster 800 S2R 77 CV, 57 kw 2cil. M414AA/M415AA Bastidores: --- 2006
Ducati Monster 800 S2R 77 CV, 57 kw 2cil. M414AA/M415AA/M421AA Bastidores: --- 2005
Ducati Monster 800 S2R 77 CV, 57 kw 2cil. M414AA/M421AA/M422AA Bastidores: --- 2007
Ducati Monster 800 S2R Dark 77 CV, 57 kw 2cil. M414AA/M415AA Bastidores: --- 2005-2006
Ducati Multistrada 620 ie DD 34 CV, 25 kw 2cil. A103AA/A104AA Bastidores: --- 2005-2006
Ducati Multistrada 620 ie DD 63 CV, 46 kw 2cil. A103AA/A104AA Bastidores: --- 2005-2006
Royal Enfield Continental 535 GT EFI 29,1 CV, 21,4 kw 1cil. - Bastidores: --- 2014-2016
Royal Enfield Continental 535 GT EFI ABS 29,1 CV, 21,4 kw 1cil. - Bastidores: --- 2017-2019
