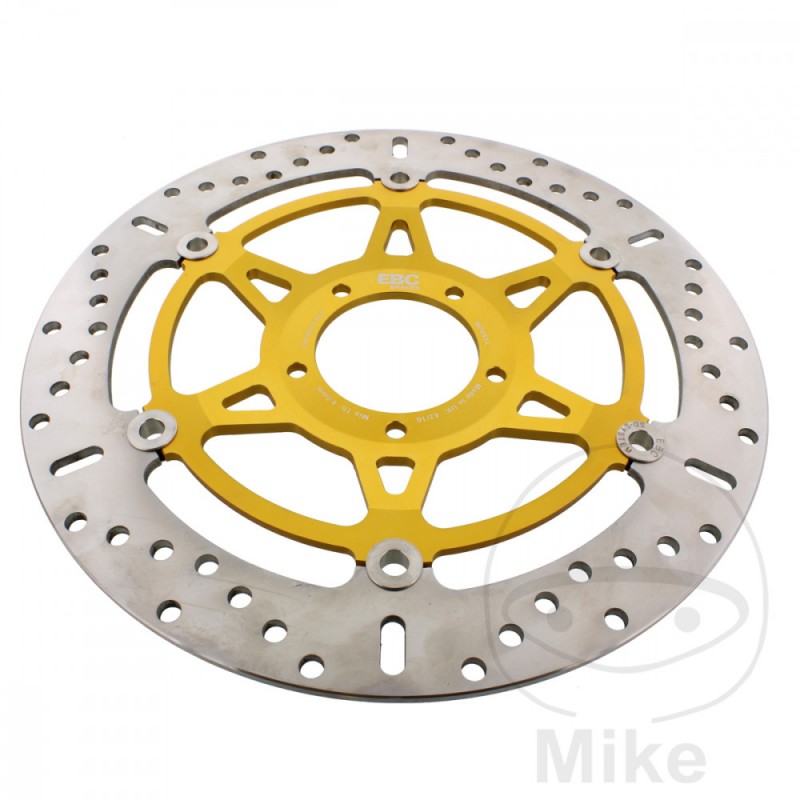

EBC Floating brake disc X 760.04.53

EBC X / XC series - Fully floating brake discs for the front wheel

These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.

The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.

The new rotors feature EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.

Such deterioration occurs when the brake disc heats up under heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.

What is the SD system? It is the new square riveting system from EBC. This system completely prevents the distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 72.2MM
CIRCLE SIZE: 90 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
thickness: 5mm
PADDING: 14.75MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Ducati 848 848 134 CV, 99 kw 2cil. H600AA/H601AA Bastidores: --- 2008-2010
Ducati 848 848 Evo 140 CV, 103 kw 2cil. H602AA/H603AA Bastidores: --- 2011-2013
Ducati 848 848 Evo Dark 140 CV, 103 kw 2cil. H602AA/H603AA Bastidores: --- 2011-2013
Ducati Monster 1000 S4R 130 CV, 96 kw 2cil. M417AA/418AA Bastidores: --- 2007-2008
Ducati Monster 1000 S4RS 130 CV, 96 kw 2cil. M417AA/M418AA Bastidores: --- 2006-2008
Ducati Monster 1100 S 95 CV, 70 kw 2cil. M502AA Bastidores: --- 2009-2011
Ducati Monster 1100 S ABS 95 CV, 70 kw 2cil. M505AA/M510AB Bastidores: --- 2010-2011
Ducati Multistrada 950 V2 ABS 113 CV, 83 kw 2cil. 2A00AA/T3 Bastidores: --- 2021
Ducati Multistrada 950 V2 ABS 113 CV, 83 kw 2cil. 2A02AA/M435AA Bastidores: --- 2022
Ducati Multistrada 950 V2 ABS 48 CV, 35 kw 2cil. 2A02AA/M435AA Bastidores: --- 2022
Ducati Multistrada 950 V2 S ABS 113 CV, 83 kw 2cil. 2A00AA Bastidores: --- 2021
Ducati Multistrada 950 V2 S ABS 113 CV, 83 kw 2cil. 2A02AA/2A02T0/T7/M435AA Bastidores: --- 2022
Ducati Multistrada 950 V2 S ABS 48 CV, 35 kw 2cil. 2A02AA/2A02T0/T7/M435AA Bastidores: --- 2022
Ducati Panigale 899 ABS 148 CV, 109 kw 2cil. H803AA/H804FA/H805JA Bastidores: --- 2014-2015
Ducati Panigale 955 V2 ABS 155 CV, 114 kw 2cil. 1H00AA/W0/W2/W3/W5/1H02BG/HAATW0/W2 Bastidores: --- 2020
Ducati Panigale 955 V2 ABS 155 CV, 114 kw 2cil. 1H00AA/W2/W9/1H02BG Bastidores: --- 2022
Ducati Panigale 955 V2 ABS 155 CV, 114 kw 2cil. 1H00AA/W3/W5/W9/1H02BG Bastidores: --- 2021
Ducati Panigale 955 V2 TB Bayliss Edition ABS 155 CV, 114 kw 2cil. 1H00AA/W0/W2/W7/1H02BG/1H03RU Bastidores: --- 2022
Ducati Panigale 959 ABS 150 CV, 110 kw 2cil. HA00AA/HA01JA/HB00FA Bastidores: --- 2016-2018
Ducati Panigale 959 ABS 150 CV, 110 kw 2cil. HA00AA/W0/WX/HA01JA/HB00FA Bastidores: --- 2019
Ducati Panigale 959 Corse ABS 150 CV, 110 kw 2cil. HA00AA/W0/W1/W4/W6/W8/WX/HA01JA/HB00FA Bastidores: --- 2019
Ducati Panigale 959 Corse ABS 150 CV, 110 kw 2cil. HA00AA/W4/HA01JA/HB00FA Bastidores: --- 2018
