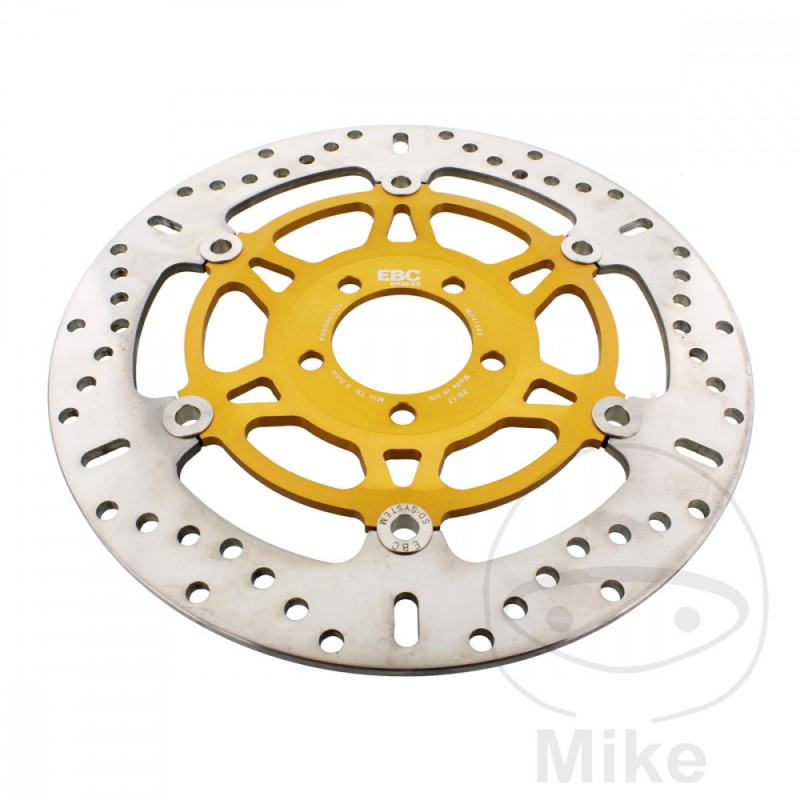

EBC Floating brake disc X 760.04.46
€200.34
€231.59
Save €31.25Tax included
EBC X / XC series - Fully floating brake discs for the front wheel
These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.
The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.
The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.
The new rotors feature EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.
Such deterioration occurs when the brake disc heats up under heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.
What is the SD system? It is the new square riveting system from EBC. This system completely prevents the distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 299MM
INSIDE DIAMETER: 61.2MM
CIRCLE SIZE: 81.2 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
THICKNESS: 6MM
PADDING: 13.5MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki Z 1000 A 127 CV, 93 kw 4cil. ZRT00AAA 1H Bastidores: ZRT00AAA henceforth00001-ZRT00AAA henceforth15000 2003
Kawasaki Z 1000 A 127 CV, 93 kw 4cil. ZRT00AAA 2H Bastidores: ZRT00AAA henceforth15001-ZRT00AAA henceforth28000 2004
Kawasaki Z 1000 A 127 CV, 93 kw 4cil. ZRT00AAA 3H Bastidores: ZRT00AAA henceforth28001-ZRT00AAA henceforth40000 2005
Kawasaki Z 1000 A 127 CV, 93 kw 4cil. ZRT00AAA 6F Bastidores: ZRT00AAA henceforth40001-ZRT00AAA-999999 2006
Kawasaki Z 1000 A 98 CV, 72 kw 4cil. ZRT00AAA 1H Bastidores: ZRT00AAA henceforth00001-ZRT00AAA henceforth15000 2003
Kawasaki Z 1000 A 98 CV, 72 kw 4cil. ZRT00AAA 2H Bastidores: ZRT00AAA henceforth15001-ZRT00AAA henceforth28000 2004
Kawasaki Z 1000 A 98 CV, 72 kw 4cil. ZRT00AAA 3H Bastidores: ZRT00AAA henceforth28001-ZRT00AAA henceforth40000 2005
Kawasaki Z 1000 A 98 CV, 72 kw 4cil. ZRT00AAA 6F Bastidores: ZRT00AAA henceforth40001-ZRT00AAA-999999 2006
Kawasaki ZX-12R 1200 B Ninja 178 CV, 131 kw 4cil. ZXT20ABA 3H Bastidores: ZXT20ABA henceforth45001-ZXT20ABA henceforth48000 2004
Kawasaki ZX-12R 1200 B Ninja 178 CV, 131 kw 4cil. ZXT20ABA 4H Bastidores: ZXT20ABA henceforth48001-ZXT20ABA henceforth50000 2005
Kawasaki ZX-12R 1200 B Ninja 178 CV, 131 kw 4cil. ZXT20ABA 6F Bastidores: ZXT20ABA henceforth50001-ZXT20ABA-999999 2006
Kawasaki ZX-12R 1200 B Ninja 98 CV, 72 kw 4cil. ZXT20ABA 3H Bastidores: ZXT20ABA henceforth45001-ZXT20ABA henceforth48000 2004
Kawasaki ZX-12R 1200 B Ninja 98 CV, 72 kw 4cil. ZXT20ABA 4H Bastidores: ZXT20ABA henceforth48001-ZXT20ABA henceforth50000 2005
Kawasaki ZX-12R 1200 B Ninja 98 CV, 72 kw 4cil. ZXT20ABA 6F Bastidores: ZXT20ABA henceforth50001-ZXT20ABA-999999 2006
These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.
The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.
The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.
The new rotors feature EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.
Such deterioration occurs when the brake disc heats up under heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.
What is the SD system? It is the new square riveting system from EBC. This system completely prevents the distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 299MM
INSIDE DIAMETER: 61.2MM
CIRCLE SIZE: 81.2 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
THICKNESS: 6MM
PADDING: 13.5MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki Z 1000 A 127 CV, 93 kw 4cil. ZRT00AAA 1H Bastidores: ZRT00AAA henceforth00001-ZRT00AAA henceforth15000 2003
Kawasaki Z 1000 A 127 CV, 93 kw 4cil. ZRT00AAA 2H Bastidores: ZRT00AAA henceforth15001-ZRT00AAA henceforth28000 2004
Kawasaki Z 1000 A 127 CV, 93 kw 4cil. ZRT00AAA 3H Bastidores: ZRT00AAA henceforth28001-ZRT00AAA henceforth40000 2005
Kawasaki Z 1000 A 127 CV, 93 kw 4cil. ZRT00AAA 6F Bastidores: ZRT00AAA henceforth40001-ZRT00AAA-999999 2006
Kawasaki Z 1000 A 98 CV, 72 kw 4cil. ZRT00AAA 1H Bastidores: ZRT00AAA henceforth00001-ZRT00AAA henceforth15000 2003
Kawasaki Z 1000 A 98 CV, 72 kw 4cil. ZRT00AAA 2H Bastidores: ZRT00AAA henceforth15001-ZRT00AAA henceforth28000 2004
Kawasaki Z 1000 A 98 CV, 72 kw 4cil. ZRT00AAA 3H Bastidores: ZRT00AAA henceforth28001-ZRT00AAA henceforth40000 2005
Kawasaki Z 1000 A 98 CV, 72 kw 4cil. ZRT00AAA 6F Bastidores: ZRT00AAA henceforth40001-ZRT00AAA-999999 2006
Kawasaki ZX-12R 1200 B Ninja 178 CV, 131 kw 4cil. ZXT20ABA 3H Bastidores: ZXT20ABA henceforth45001-ZXT20ABA henceforth48000 2004
Kawasaki ZX-12R 1200 B Ninja 178 CV, 131 kw 4cil. ZXT20ABA 4H Bastidores: ZXT20ABA henceforth48001-ZXT20ABA henceforth50000 2005
Kawasaki ZX-12R 1200 B Ninja 178 CV, 131 kw 4cil. ZXT20ABA 6F Bastidores: ZXT20ABA henceforth50001-ZXT20ABA-999999 2006
Kawasaki ZX-12R 1200 B Ninja 98 CV, 72 kw 4cil. ZXT20ABA 3H Bastidores: ZXT20ABA henceforth45001-ZXT20ABA henceforth48000 2004
Kawasaki ZX-12R 1200 B Ninja 98 CV, 72 kw 4cil. ZXT20ABA 4H Bastidores: ZXT20ABA henceforth48001-ZXT20ABA henceforth50000 2005
Kawasaki ZX-12R 1200 B Ninja 98 CV, 72 kw 4cil. ZXT20ABA 6F Bastidores: ZXT20ABA henceforth50001-ZXT20ABA-999999 2006
760.04.46
10 Items
Data sheet
- EXTERNAL DIAMETER
- 299 MM
- CIRCLE MEASUREMENT
- 81.2MM
- HOLE DIAMETER
- 10.5MM
- INSIDE DIAMETER
- 81.2MM
- VERSION
- FLOATING
- QUANTITY OF HOLES
- 5
- STUFFED
- 13.5MM
- THICKNESS
- 6MM
