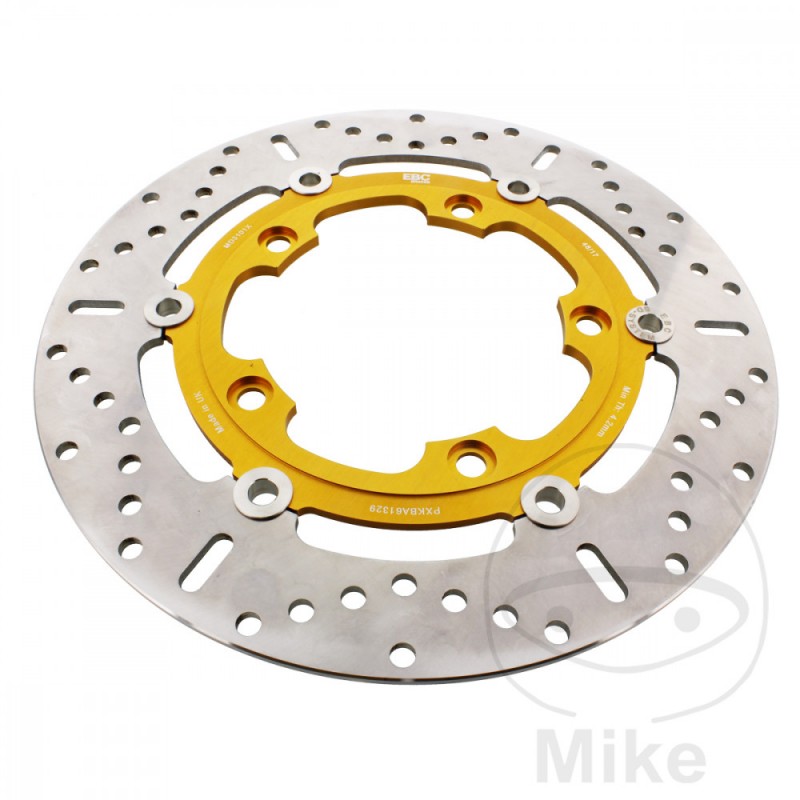

EBC Floating brake disc X 760.04.44
      • EBC Floating brake disc X 760.04.44
      • EBC Floating brake disc X 760.04.44

      EBC Floating brake disc X 760.04.44

      EBC
      Review (0)
      €200.34
      Tax included
      Quantity :
      Está disponible, lo enviaremos lo antes posible, lo recibirás en unos 18 días.
      EBC X / XC series - Fully floating brake discs for the front wheel

      These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.

      The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

      The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.

      The new rotors feature EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.

      Such deterioration occurs when the brake disc heats up under heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.

      What is the SD system? It is the new square riveting system from EBC. This system completely prevents the distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
      OUTER DIAMETER: 290MM
      INSIDE DIAMETER: 121.3MM
      CIRCLE SIZE: 142 MM
      HOLES QUANTITY: 5
      HOLE DIAMETER: 10.5 MM
      THICKNESS: 4.3MM
      VERSION: FLOATING


      APPLICATIONS OF THIS PRODUCT:
      According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
      Suzuki GSF 650 A Bandit ABS 78 CV, 57 kw 4cil. WVB51141 K5 Bastidores: B51411 henceforth0100001-B51141 henceforth0102288 2005
      Suzuki GSF 650 A Bandit ABS 78 CV, 57 kw 4cil. WVB51141 K6 Bastidores: B51141 henceforth0102289-- 2006
      Suzuki GSF 650 SA Bandit ABS 78 CV, 57 kw 4cil. WVB51131 K5 Bastidores: B51131 henceforth0100001-B51131 henceforth0104939 2005
      Suzuki GSF 650 SA Bandit ABS 78 CV, 57 kw 4cil. WVB51131 K6 Bastidores: B51131 henceforth0104940-- 2006
      Suzuki GSF 650 SUA Bandit ABS 34 CV, 25 kw 4cil. WVB52131 K5 Bastidores: B52131 henceforth0100001-B52131 henceforth0100040 2005
      Suzuki GSF 650 SUA Bandit ABS 34 CV, 25 kw 4cil. WVB52131 K6 Bastidores: B52131 henceforth0100041-- 2006
      Suzuki GSF 650 UA Bandit ABS 34 CV, 25 kw 4cil. WVB52141 K5 Bastidores: B52141 henceforth0100001-B52141 henceforth0100050 2005
      Suzuki GSF 650 UA Bandit ABS 34 CV, 25 kw 4cil. WVB52141 K6 Bastidores: B52141 henceforth0100051-- 2006
      EBC
      760.04.44
      10 Items

      Data sheet

      VERSION
      FLOATING
      QUANTITY OF HOLES
      5
      EXTERNAL DIAMETER
      290 MM
      CIRCLE MEASUREMENT
      142 MM
      HOLE DIAMETER
      10.5MM
      INSIDE DIAMETER
      142 MM
      THICKNESS
      4.3MM
