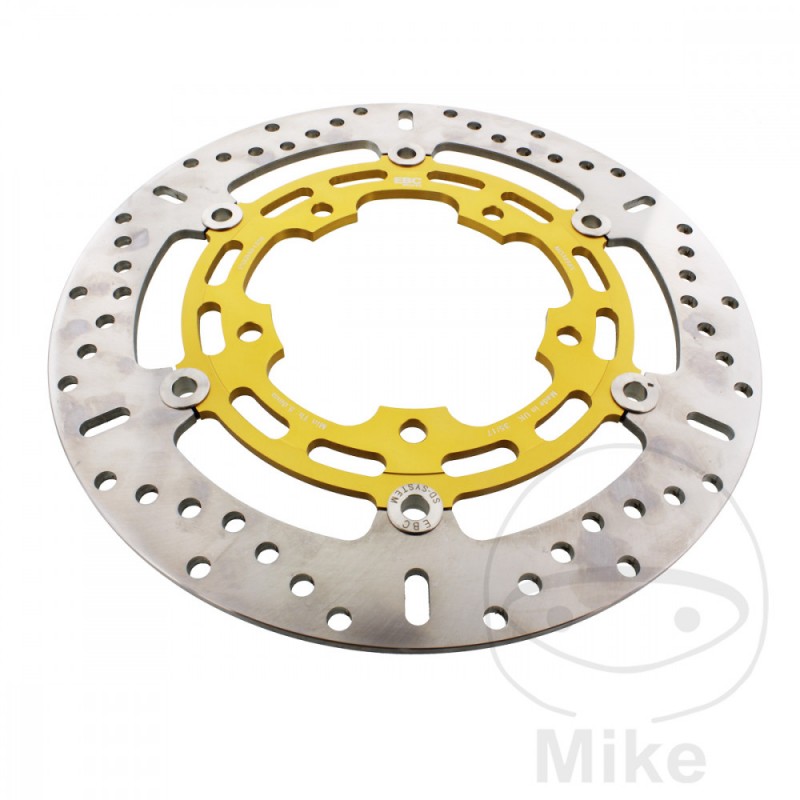

EBC Floating brake disc X 760.04.43

EBC X / XC series - Fully floating brake discs for the front wheel

These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.

The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.

The new rotors are equipped with EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses under the heat generated during braking allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.

Such deterioration occurs when the brake disc gets hot during hard braking and the outer ring touches the rivets (usually round) that separate the outer ring from the inner ring. The new EBC system avoids this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.

What is the SD system? It is the new square riveting system from EBC. This system completely prevents the distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 310MM
INSIDE DIAMETER: 121.3MM
CIRCLE SIZE: 142 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSX 1300 BK B-King 184 CV, 135 kw 4cil. WVCR1111 K8 Bastidores: CR1111 henceforth0100001-CR1111 henceforth0104628 2008
Suzuki GSX 1300 BK B-King 184 CV, 135 kw 4cil. WVCR1111 K9 Bastidores: CR1111 henceforth0104629-CR1111 henceforth0104674 2009
Suzuki GSX 1300 BK B-King 184 CV, 135 kw 4cil. WVCR1111 L0 Bastidores: CR1111 henceforth0104675-- 2010
Suzuki GSX 1300 BKA B-King ABS 184 CV, 135 kw 4cil. CR1121 K8 Bastidores: CR1121 henceforth0100001-CR1121 henceforth0101775 2008
Suzuki GSX 1300 BKA B-King ABS 184 CV, 135 kw 4cil. CR1121 K9 Bastidores: CR1121 henceforth0101746-CR1121 henceforth0101911 2009
Suzuki GSX 1300 BKA B-King ABS 184 CV, 135 kw 4cil. CR1121 L0 Bastidores: CR1121 henceforth0101912-- 2010-2012
Suzuki GSX 1300 BKAU2 B-King ABS 106 CV. 78 kw 4cil. CR2121 K8 Bastidores: CR2121 henceforth0100001-CR2121 henceforth0100315 2008
Suzuki GSX 1300 BKU2 B-King 106 CV. 78 kw 4cil. CR2111 K8 Bastidores: CR2111 henceforth0100001-CR2111 henceforth0101622 2008
Suzuki GSX 1300 BKUF B-King 106 CV. 78 kw 4cil. WVCR2111 K9 Bastidores: CR2111 henceforth0101623-- 2009
Suzuki GSX 1300 R Hayabusa 197 CV, 145 kw 4cil. WVCK1111 K8 Bastidores: CK1111 henceforth0100001-CK1111 henceforth0105310 2008
Suzuki GSX 1300 R Hayabusa 197 CV, 145 kw 4cil. WVCK1111 K9 Bastidores: CK1111 henceforth0105311-CK1111 henceforth0107274 2009
Suzuki GSX 1300 R Hayabusa 197 CV, 145 kw 4cil. WVCK1111 L0 Bastidores: CK1111 henceforth0107275-CK1111 henceforth0108349 2010
Suzuki GSX 1300 R Hayabusa 197 CV, 145 kw 4cil. WVCK1111 L1 Bastidores: CK1111 henceforth0108350-CK1111 henceforth0110090 2011
Suzuki GSX 1300 R Hayabusa 197 CV, 145 kw 4cil. WVCK1111 L2 Bastidores: CK1111 henceforth0110091-- 2012
Suzuki GSX 1300 RA Hayabusa ABS 197 CV, 145 kw 4cil. WVCK1116 L3 Bastidores: CK1116 henceforth0100001-CK1116 henceforth0101371 2013
Suzuki GSX 1300 RA Hayabusa ABS 197 CV, 145 kw 4cil. WVCK1116 L6 Bastidores: CK1116-G0100001-CK1116-G0109999 2016
Suzuki GSX 1300 RA Hayabusa ABS 197 CV, 145 kw 4cil. WVCK1116 L7 Bastidores: CK1116-H0100001-CK1116-H0109999 2017-2018
Suzuki GSX 1300 RAUF Hayabusa ABS 106 CV, 78 kw 4cil. WVCK2116 L3 Bastidores: CK2116 henceforth0100001-CK2116 henceforth0100169 2013
Suzuki GSX 1300 RAUF Hayabusa ABS 106 CV, 78 kw 4cil. WVCK2116 L6 Bastidores: CK2116-G0100001-CK2116-G0109999 2016
Suzuki GSX 1300 RAZ Hayabusa ABS 197 CV, 145 kw 4cil. WVCK1116 L4 Bastidores: CK1116 henceforth0101795-- 2014-2016
Suzuki GSX 1300 RAZUF Hayabusa ABS 106 CV, 78 kw 4cil. WVCK2116 L4 Bastidores: CK2116 henceforth0100170-- 2014-2016
Suzuki GSX 1300 RU2 Hayabusa 106 CV, 78 kw 4cil. WVCK2111 K8 Bastidores: CK2111 henceforth0100001-- 2008
Suzuki GSX 1300 RU2Z Hayabusa 106 CV, 78 kw 4cil. WVA13112 K7 Bastidores: A13112 henceforth0104579-- 2007
Suzuki GSX 1300 RUF Hayabusa 106 CV, 78 kw 4cil. WVCK2111 K9 Bastidores: CK2111 henceforth0101525-CK2111 henceforth0102226 2009
Suzuki GSX 1300 RUF Hayabusa 106 CV, 78 kw 4cil. WVCK2111 L0 Bastidores: CK2111 henceforth0102227-CK2111 henceforth0102784 2010
Suzuki GSX 1300 RUF Hayabusa 106 CV, 78 kw 4cil. WVCK2111 L1 Bastidores: CK2111 henceforth0102785-CK2111 henceforth0103106 2011
Suzuki GSX 1300 RUF Hayabusa 106 CV, 78 kw 4cil. WVCK2111 L2 Bastidores: CK2111 henceforth0103107-- 2012
Suzuki GSX 1300 RZ Hayabusa 175 CV, 129 kw 4cil. WVA11112 K7 Bastidores: A11112 henceforth0120612-- 2007
