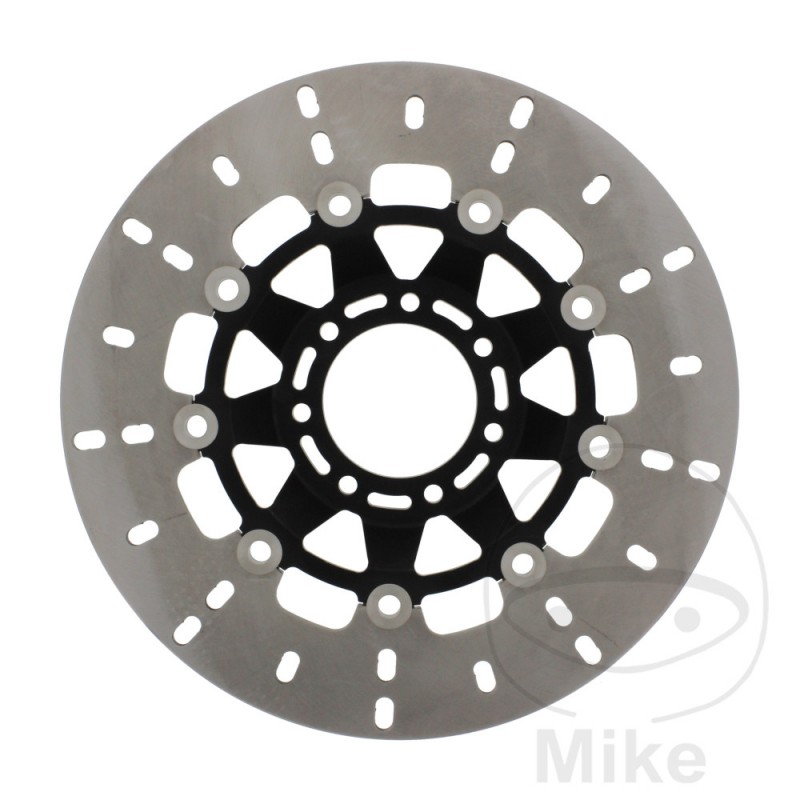

EBC Floating brake disc VINTAGE 760.04.27
€215.80
€258.86
Save €43.05Tax included
EBC Fully Floating Front Wheel Rotors in Vintage Style
Perfect for cafe runners
The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.
The weight of the new VMD series is reduced by an additional 5-10% due to the rivet system with a lightweight inner ring, which in turn means an improvement over conventional brake discs.
The new brake discs are floats that will allow heat generated during braking to allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.
Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system prevents this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.
Old brake discs do not have a KBA number and can only be registered with a single approval at the TÜV.
OUTSIDE DIAMETER: 299MM
INSIDE DIAMETER: 70.2MM
CIRCLE SIZE: 90 MM
HOLES QUANTITY: 7
HOLE DIAMETER: 8.5 MM
thickness: 5mm
PADDING: 32.5MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki Z 1300 A 120/100 CV, 88/74 kw 6cil. KZAA1BA 3 Bastidores: KZAA1BA henceforth11501-- 1981
Kawasaki Z 1300 A 120/100 CV, 88/74 kw 6cil. KZT30A 1 Bastidores: KZT30A henceforth00101-KZT30A henceforth06200 1979
Kawasaki Z 1300 A 120/100 CV, 88/74 kw 6cil. KZT30A 2 Bastidores: KZT30A henceforth06201-- 1980
Kawasaki Z 1300 A 120/100 CV, 88/74 kw 6cil. KZT30A 4 Bastidores: KZT30A henceforth14101-- 1982
Kawasaki Z 1300 A 120/100 CV, 88/74 kw 6cil. KZT30A 5 Bastidores: KZT30A henceforth15901-- 1983
Kawasaki Z/ZG 1300 A DFI 100 CV, 74 kw 6cil. ZGT30A 1 Bastidores: ZGT30A henceforth00001-ZGT30A henceforth02800 1984-1985
Kawasaki Z/ZG 1300 A DFI 100 CV, 74 kw 6cil. ZGT30A 2 Bastidores: ZGT30A henceforth02801-ZGT30A-999999 1986
Perfect for cafe runners
The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.
The weight of the new VMD series is reduced by an additional 5-10% due to the rivet system with a lightweight inner ring, which in turn means an improvement over conventional brake discs.
The new brake discs are floats that will allow heat generated during braking to allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.
Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system prevents this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.
Old brake discs do not have a KBA number and can only be registered with a single approval at the TÜV.
OUTSIDE DIAMETER: 299MM
INSIDE DIAMETER: 70.2MM
CIRCLE SIZE: 90 MM
HOLES QUANTITY: 7
HOLE DIAMETER: 8.5 MM
thickness: 5mm
PADDING: 32.5MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki Z 1300 A 120/100 CV, 88/74 kw 6cil. KZAA1BA 3 Bastidores: KZAA1BA henceforth11501-- 1981
Kawasaki Z 1300 A 120/100 CV, 88/74 kw 6cil. KZT30A 1 Bastidores: KZT30A henceforth00101-KZT30A henceforth06200 1979
Kawasaki Z 1300 A 120/100 CV, 88/74 kw 6cil. KZT30A 2 Bastidores: KZT30A henceforth06201-- 1980
Kawasaki Z 1300 A 120/100 CV, 88/74 kw 6cil. KZT30A 4 Bastidores: KZT30A henceforth14101-- 1982
Kawasaki Z 1300 A 120/100 CV, 88/74 kw 6cil. KZT30A 5 Bastidores: KZT30A henceforth15901-- 1983
Kawasaki Z/ZG 1300 A DFI 100 CV, 74 kw 6cil. ZGT30A 1 Bastidores: ZGT30A henceforth00001-ZGT30A henceforth02800 1984-1985
Kawasaki Z/ZG 1300 A DFI 100 CV, 74 kw 6cil. ZGT30A 2 Bastidores: ZGT30A henceforth02801-ZGT30A-999999 1986
760.04.27
10 Items
Data sheet
- CIRCLE MEASUREMENT
- 90MM
- HOLE DIAMETER
- 8.5 MM
- INSIDE DIAMETER
- 90MM
- VERSION
- FLOATING
- QUANTITY OF HOLES
- 7
- STUFFED
- 32.5MM
- EXTERNAL DIAMETER
- 299 MM
- THICKNESS
- 5 MM
