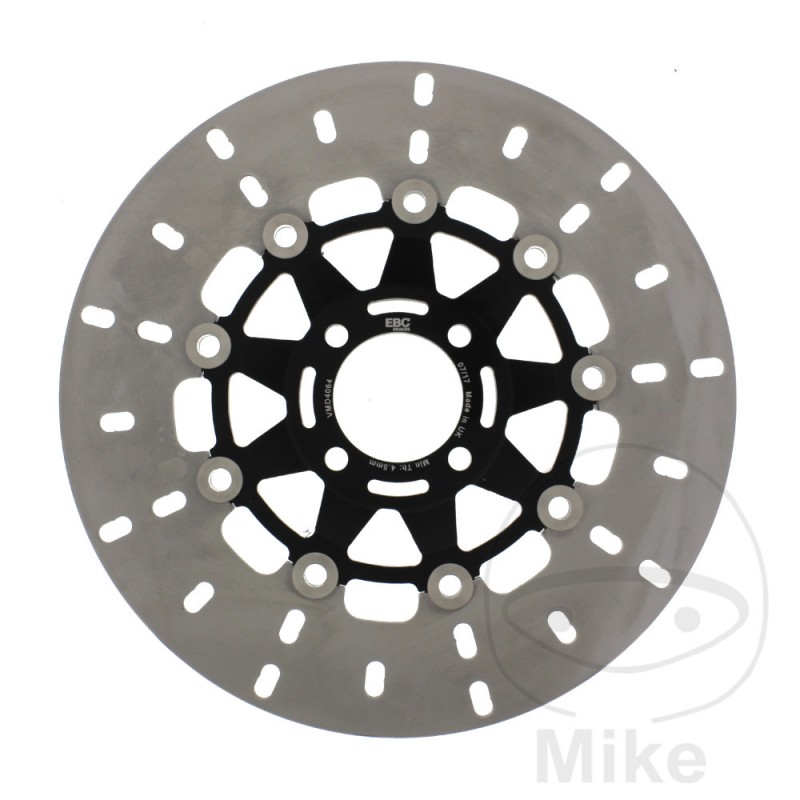

EBC Floating brake disc VINTAGE 760.04.24
€219.98
€223.98
Save €4.01Tax included
EBC fully floating brake discs for the front wheel in vintage style
Perfect for cafe runners
The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.
The weight of the new VMD series is reduced by 5-10% more thanks to the rivet system with a light inner ring, which in turn is an improvement over conventional brake discs.
The new brake discs have floats, so the heat generated during braking will allow the outer and inner ring to expand without affecting the riveted connection.
Such deterioration occurs when the brake disc heats up due to heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem that causes 100% of brake disc defects caused by disc deformations and vibrations.
Old brake discs do not have a KBA number and can only be registered with the TÜV by individual approval.
OUTER DIAMETER: 296MM
INSIDE DIAMETER: 58.2MM
CIRCLE SIZE: 78 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
thickness: 5mm
PADDING: 29MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki Z 1000 A 85 CV, 63 kw 4cil. KZT00A 1 Bastidores: KZT00A henceforth00001-KZT00A henceforth27500 1977
Kawasaki Z 1000 A 85 CV, 63 kw 4cil. KZT00A 2 Bastidores: KZT00A henceforth27501-- 1978-1979
Kawasaki Z 1000 H Injection 96 CV 71 kw 4cil. KZT00H 1 Bastidores: KZT00H henceforth00001-- 1980
Kawasaki Z 1000 MK2 94 CV, 69 kw 4cil. KZT00A Bastidores: KZT00A henceforth38416-KZT00A henceforth43000 1979
Kawasaki Z 1000 MK2 94 CV, 69 kw 4cil. KZT00A Bastidores: KZT00A henceforth43001-KZT00A henceforth43006 1980
Kawasaki Z 1000 MK2 94 CV, 69 kw 4cil. KZT00A Bastidores: KZT00A henceforth43027-- 1980
Perfect for cafe runners
The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.
The weight of the new VMD series is reduced by 5-10% more thanks to the rivet system with a light inner ring, which in turn is an improvement over conventional brake discs.
The new brake discs have floats, so the heat generated during braking will allow the outer and inner ring to expand without affecting the riveted connection.
Such deterioration occurs when the brake disc heats up due to heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem that causes 100% of brake disc defects caused by disc deformations and vibrations.
Old brake discs do not have a KBA number and can only be registered with the TÜV by individual approval.
OUTER DIAMETER: 296MM
INSIDE DIAMETER: 58.2MM
CIRCLE SIZE: 78 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
thickness: 5mm
PADDING: 29MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki Z 1000 A 85 CV, 63 kw 4cil. KZT00A 1 Bastidores: KZT00A henceforth00001-KZT00A henceforth27500 1977
Kawasaki Z 1000 A 85 CV, 63 kw 4cil. KZT00A 2 Bastidores: KZT00A henceforth27501-- 1978-1979
Kawasaki Z 1000 H Injection 96 CV 71 kw 4cil. KZT00H 1 Bastidores: KZT00H henceforth00001-- 1980
Kawasaki Z 1000 MK2 94 CV, 69 kw 4cil. KZT00A Bastidores: KZT00A henceforth38416-KZT00A henceforth43000 1979
Kawasaki Z 1000 MK2 94 CV, 69 kw 4cil. KZT00A Bastidores: KZT00A henceforth43001-KZT00A henceforth43006 1980
Kawasaki Z 1000 MK2 94 CV, 69 kw 4cil. KZT00A Bastidores: KZT00A henceforth43027-- 1980
760.04.24
10 Items
Data sheet
- EXTERNAL DIAMETER
- 296 MM
- CIRCLE MEASUREMENT
- 78MM
- HOLE DIAMETER
- 10.5MM
- INSIDE DIAMETER
- 78MM
- VERSION
- FLOATING
- QUANTITY OF HOLES
- 4
- STUFFED
- 29MM
- THICKNESS
- 5 MM
