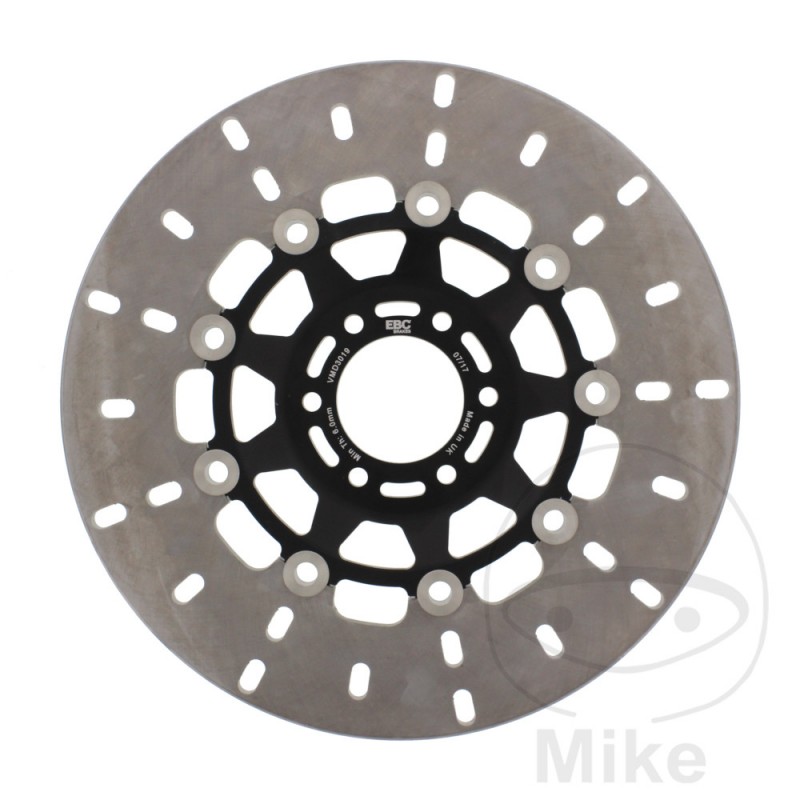

EBC Floating brake disc VINTAGE 760.04.21

EBC fully floating brake discs for the front wheel in vintage style

Perfect for cafe runners.

The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new VMD series is reduced by an additional 5-10% by the rivet system with a lightweight inner ring, which in turn means an improvement over conventional brake discs.

The new brake discs are fitted with floats, which means that the heat generated during braking will allow the outer and inner rings to expand without compromising the rivet connection.

Such deterioration occurs when the brake disc heats up due to heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system eliminates this problem, which causes 100% of brake disc defects caused by disc deformation and vibration.

Old brake discs do not have a KBA number and can only be registered with the TÜV after a single inspection.
OUTER DIAMETER: 296MM
INSIDE DIAMETER: 56.2MM
CIRCLE SIZE: 78 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.5 MM
THICKNESS: 6.5MM
PADDING: 22.3MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GT 750 52 CV, 38 kw 3cil. GT750 K Bastidores: GT750-31253-GT750-40246 1973
Suzuki GT 750 52 CV, 38 kw 3cil. GT750 L Bastidores: GT750-40247-GT750-52822 1974
Suzuki GT 750 63 CV, 46 kw 3cil. GT750 A Bastidores: GT750-61729-GT750-75738 1976
Suzuki GT 750 63 CV, 46 kw 3cil. GT750 B Bastidores: GT750-75739-- 1977-1979
Suzuki GT 750 63 CV, 46 kw 3cil. GT750 M Bastidores: GT750-52823-GT750-61728 1975
