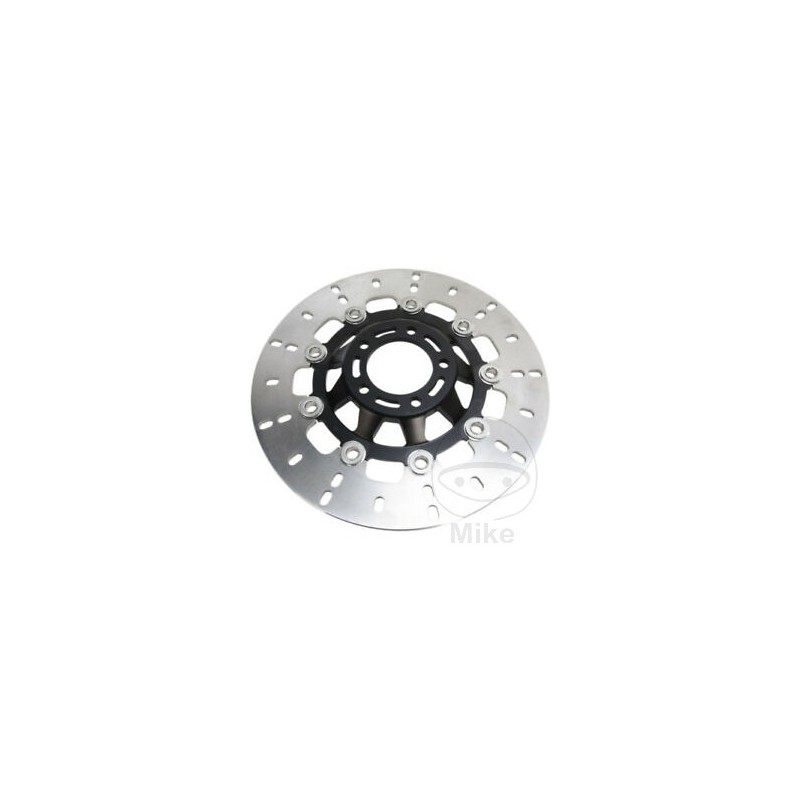

EBC Floating brake disc VINTAGE 760.04.18

EBC Fully Floating Front Wheel Rotors in Vintage Style

Perfect for cafe runners

The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new VMD series is reduced by an additional 5-10% due to the rivet system with a lightweight inner ring, which in turn means an improvement over conventional brake discs.

The new brake discs are floats that will allow heat generated during braking to allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.

Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system prevents this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.

Old brake discs do not have a KBA number and can only be registered with a single approval at the TÜV.
OUTSIDE DIAMETER: 299MM
INSIDE DIAMETER: 64.2MM
CIRCLE SIZE: 80 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.5 MM
THICKNESS: 7MM
PADDING: 18.5MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha XS 1100 95 CV, 70 kw 4cil. 2H9 3X0 Bastidores: 2H9-130101-2H9-140000 1980
Yamaha XS 1100 95 CV, 70 kw 4cil. 2H9 3X0 Bastidores: 2H9-140101-2H9-150000 1981-1983
Yamaha XS 1100 S 95 CV, 70 kw 4cil. 5K7 5K7 Bastidores: 5K7 henceforth10101-5K7 henceforth20000 1981-1982
Yamaha XV 750 SE Special 50 CV, 37 kw 2cil. 5G5 5K4 Bastidores: 5G5 henceforth00101-5G5 henceforth20000 1981
