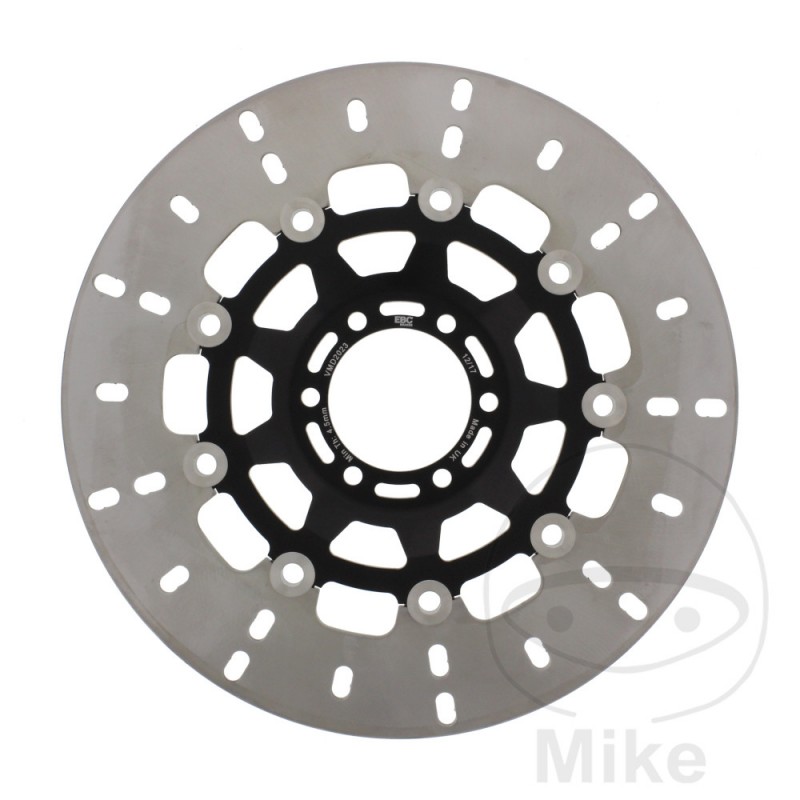

EBC Floating brake disc VINTAGE 760.04.17

EBC fully floating brake discs for the front wheel in vintage style

Perfect for cafe runners.

The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new VMD series is reduced by an additional 5-10% by the rivet system with a lightweight inner ring, which in turn means an improvement over conventional brake discs.

The new brake discs are fitted with floats, which means that the heat generated during braking will allow the outer and inner rings to expand without compromising the rivet connection.

Such deterioration occurs when the brake disc heats up due to heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system eliminates this problem, which causes 100% of brake disc defects caused by disc deformation and vibration.

Old brake discs do not have a KBA number and can only be registered with the TÜV after a single inspection.
OUTSIDE DIAMETER: 299MM
INSIDE DIAMETER: 64.2MM
CIRCLE SIZE: 80 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.5 MM
thickness: 5mm
PADDING: 17.8MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha SR 500 G llanta de fundición 27 CV, 20 kw 1cil. 2J4 3H0 Bastidores: 2J4-100101-2J4-200000 1979
Yamaha SR 500 G llanta de fundición 27 CV, 20 kw 1cil. 2J4 4E6 Bastidores: 2J4-210101-2J4-220000 1980
Yamaha SR 500 G llanta de fundición 27 CV, 20 kw 1cil. 2J4 4E6 Bastidores: 2J4-240101-2J4-250000 1981
Yamaha SR 500 G llanta de fundición 27 CV, 20 kw 1cil. 2J4 4E6 Bastidores: 2J4-250101-2J4-260000 1982-1983
Yamaha SR 500 SP llanta de radios 27 CV, 20 kw 1cil. 2J4 2J4 Bastidores: 2J4 henceforth00101-2J4-100000 1978
Yamaha SR 500 SP llanta de radios 27 CV, 20 kw 1cil. 2J4 2J4 Bastidores: 2J4-200101-2J4-210000 1979
Yamaha SR 500 SP llanta de radios 27 CV, 20 kw 1cil. 2J4 4F9 Bastidores: 2J4-230101-2J4-240000 1981
Yamaha SR 500 SP llanta de radios 27 CV, 20 kw 1cil. 2J4 4F9 Bastidores: 2J4-260101-2J4-270000 1982-1983
Yamaha XJ 750 87 CV, 64 kw 4cil. 41Y 41Y Bastidores: 41Y henceforth00101-41Y henceforth20000 1984-1985
Yamaha XJ 750 Seca 81 CV, 60 kw 4cil. 11M 11M Bastidores: 11M henceforth00101-11M henceforth50000 1982-1984
