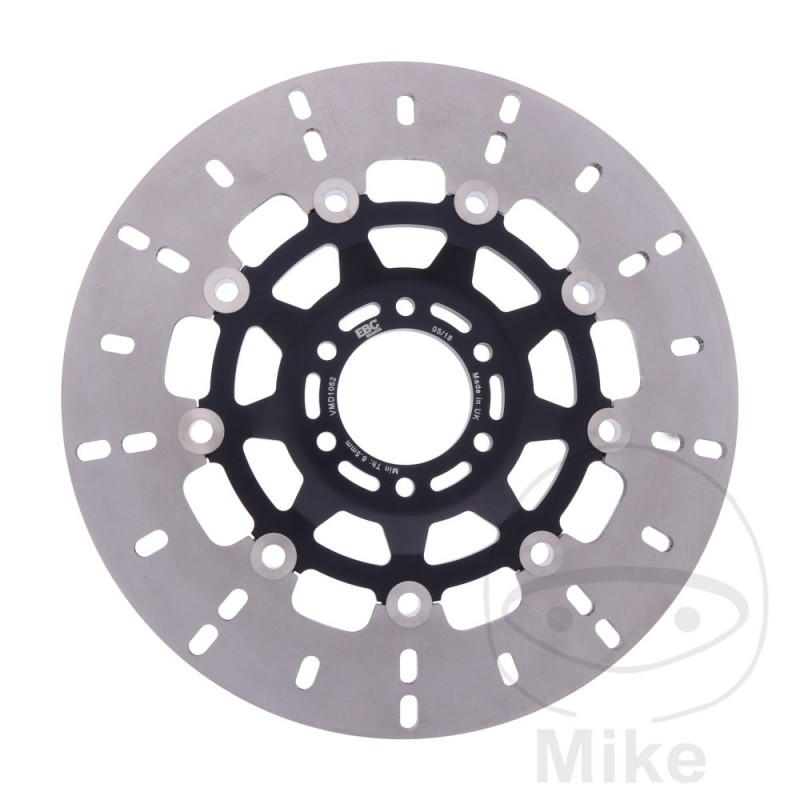

EBC Floating brake disc VINTAGE 760.04.16
€248.40
Tax included
EBC fully floating brake discs for the front wheel in vintage style
Perfect for cafe runners
The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.
The weight of the new VMD series is reduced by 5-10% more thanks to the rivet system with a light inner ring, which in turn is an improvement over conventional brake discs.
The new brake discs have floats, so the heat generated during braking will allow the outer and inner ring to expand without affecting the riveted connection.
Such deterioration occurs when the brake disc heats up due to heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem that causes 100% of brake disc defects caused by disc deformations and vibrations.
Old brake discs do not have a KBA number and can only be registered with the TÜV by individual approval.
OUTER DIAMETER: 296MM
INSIDE DIAMETER: 100.2MM
CIRCLE SIZE: 80 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.5 MM
THICKNESS: 7MM
PADDING: 21MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 750 K Four 67 CV, 49 kw 4cil. CB750K 7 Bastidores: CB750K-2719935-CB750K-2799999 1977-1978
Perfect for cafe runners
The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.
The weight of the new VMD series is reduced by 5-10% more thanks to the rivet system with a light inner ring, which in turn is an improvement over conventional brake discs.
The new brake discs have floats, so the heat generated during braking will allow the outer and inner ring to expand without affecting the riveted connection.
Such deterioration occurs when the brake disc heats up due to heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem that causes 100% of brake disc defects caused by disc deformations and vibrations.
Old brake discs do not have a KBA number and can only be registered with the TÜV by individual approval.
OUTER DIAMETER: 296MM
INSIDE DIAMETER: 100.2MM
CIRCLE SIZE: 80 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.5 MM
THICKNESS: 7MM
PADDING: 21MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 750 K Four 67 CV, 49 kw 4cil. CB750K 7 Bastidores: CB750K-2719935-CB750K-2799999 1977-1978
760.04.16
10 Items
Data sheet
- INSIDE DIAMETER
- 80 MM
- VERSION
- FLOATING
- QUANTITY OF HOLES
- 6
- STUFFED
- 21 MM
- EXTERNAL DIAMETER
- 296 MM
- CIRCLE MEASUREMENT
- 80 MM
- HOLE DIAMETER
- 8.5 MM
- THICKNESS
- 7 MM
