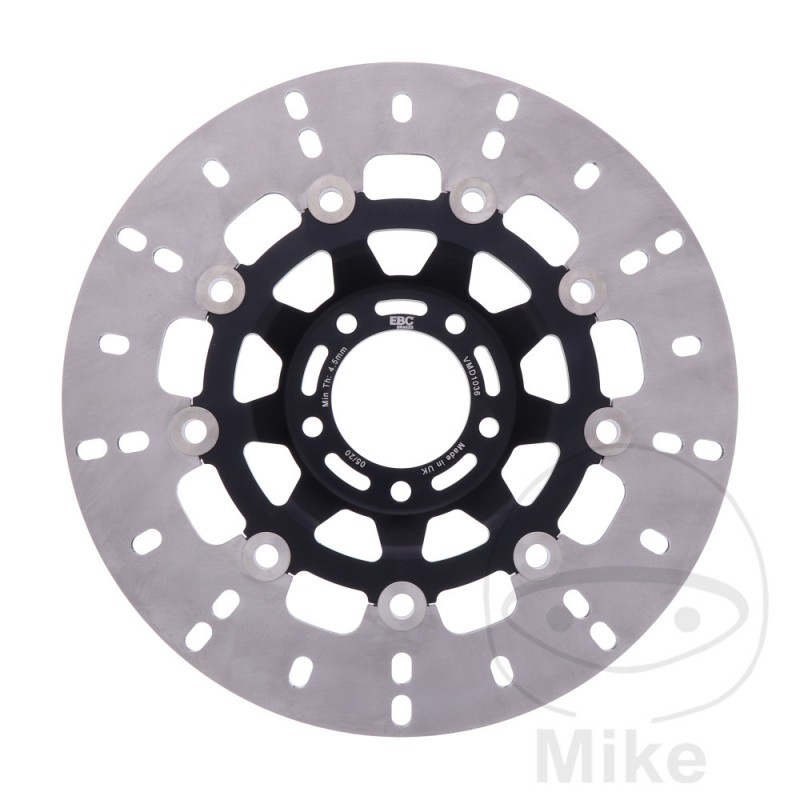

EBC Floating brake disc VINTAGE 760.04.15
€223.95
€234.61
Save €10.66Tax included
EBC Fully Floating Front Wheel Rotors in Vintage Style
Perfect for cafe runners
The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.
The weight of the new VMD series is reduced by an additional 5-10% due to the rivet system with a lightweight inner ring, which in turn means an improvement over conventional brake discs.
The new brake discs are floats that will allow heat generated during braking to allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.
Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system prevents this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.
Old brake discs do not have a KBA number and can only be registered with a single approval at the TÜV.
OUTER DIAMETER: 276MM
INSIDE DIAMETER: 58.4MM
CIRCLE SIZE: 78 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
thickness: 5mm
PADDING: 26MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 250 N Euro 17 CV, 13 kw 2cil. CB250N Bastidores: CB250N-3000008-CB250N-3004407 1978-1979
Honda CB 250 N Euro 17 CV, 13 kw 2cil. CB250N A Bastidores: CB250N-3100001-CB250N-3199999 1980
Honda CB 250 N Euro 17 CV, 13 kw 2cil. CB250N B Bastidores: CB250N-3200002-CB250N-3299999 1981
Honda CB 250 N Euro 27 CV, 20 kw 2cil. CB250N Bastidores: CB250N-2005191-CB250N-2005240 1978-1979
Honda CB 250 N Euro 27 CV, 20 kw 2cil. CB250N A Bastidores: CB250N-2108874-CB250N-2106923 1980
Honda CB 250 N Euro 27 CV, 20 kw 2cil. CB250N B Bastidores: CB250N-2200001-CB250N-2299999 1981
Honda CB 650 SC Custom 50 CV, 37 kw 4cil. RC08 C Bastidores: RC08-3000002-RC08-3099999 1982-1983
Honda CB 650 SC Custom 63 CV, 46 kw 4cil. RC08 C Bastidores: RC08-2000023-RC08-2099999 1982-1983
Honda CB 750 K 77 CV, 57 kw 4cil. RC01 A Bastidores: RC01-2115751-RC01-2118618 1980
Honda CB 750 K 77 CV, 57 kw 4cil. RC01 B Bastidores: RC01-2300006-RC01-2399999 1981-1982
Honda CB 750 K 77 CV, 57 kw 4cil. RC01 Z Bastidores: RC01-2000121-RC01-2032973 1978-1979
Honda CB 900 F Bol d´Or 95 CV, 70 kw 4cil. SC01 A Bastidores: SC01-2100002-SC01-2112185 1980
Honda CB 900 F Bol d´Or 95 CV, 70 kw 4cil. SC01 B Bastidores: SC01-2200038-SC01-2209987 1981
Honda CB 900 F Bol d´Or 95 CV, 70 kw 4cil. SC01 Z Bastidores: SC01-2000050-SC01-2015357 1979
Honda CB 900 F Bol d´Or 95 CV, 70 kw 4cil. SC09 C Bastidores: SC09-2000019-SC09-2099999 1982
Honda CB 900 F Bol d´Or 95 CV, 70 kw 4cil. SC09 D Bastidores: SC09-2100001-SC09-2199999 1983
Honda CB 900 F2 Bol d´Or 95 CV, 70 kw 4cil. SC01 B Bastidores: SC01-4000012-SC01-4010949 1981
Honda CB 900 F2 Bol d´Or 95 CV, 70 kw 4cil. SC09 C Bastidores: SC09-4000025-SC09-4099999 1982
Honda CB 900 F2 Bol d´Or 95 CV, 70 kw 4cil. SC09 D Bastidores: SC09-4100001-SC09-4199999 1983
Honda CBX 1000 105 CV, 77 kw 6cil. CB1 Z Bastidores: CB1-2000871-CB1-2024578 1979
Honda CX 500 E Euro Sports 27 CV, 20 kw 2cil. PC06 C Bastidores: PC06-3000004-PC06-3099999 1982-1986
Honda CX 500 E Euro Sports 50 CV, 37 kw 2cil. PC06 C Bastidores: PC06-2000610-PC06-2099999 1982-1986
Honda CX 650 E Euro 50 CV, 37 kw 2cil. RC12 D Bastidores: RC12-3000002-RC12-3099999 1983
Honda CX 650 E Euro 64 CV, 47 kw 2cil. RC12 D Bastidores: RC12-2000009-RC12-2099999 1983
Honda GL 1000 Z Goldwing 78 CV, 57 kw 4cil. GL2 Bastidores: GL2-4113174-GL2-4117645 1979
Honda GL 1100 D Goldwing carenado 83 CV, 61 kw 4cil. SC02 A Bastidores: SC02-4021107-SC02-4021630 1980
Honda GL 1100 D Goldwing carenado 83 CV, 61 kw 4cil. SC02 B Bastidores: SC02-4100001-SC02-4199999 1981
Honda GL 1100 D Goldwing carenado 83 CV, 61 kw 4cil. SC02 C Bastidores: SC02-4200001-SC02-4299999 1982-1983
Honda GL 1100 Goldwing 83 CV, 61 kw 4cil. SC02 A Bastidores: SC02-2000050-SC02-2021831 1980
Honda GL 1100 Goldwing 83 CV, 61 kw 4cil. SC02 B Bastidores: SC02-2100001-SC02-2199999 1981
Honda GL 1100 Goldwing 83 CV, 61 kw 4cil. SC02 C Bastidores: SC02-2200001-SC02-2299999 1982-1983
Perfect for cafe runners
The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.
The weight of the new VMD series is reduced by an additional 5-10% due to the rivet system with a lightweight inner ring, which in turn means an improvement over conventional brake discs.
The new brake discs are floats that will allow heat generated during braking to allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.
Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system prevents this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.
Old brake discs do not have a KBA number and can only be registered with a single approval at the TÜV.
OUTER DIAMETER: 276MM
INSIDE DIAMETER: 58.4MM
CIRCLE SIZE: 78 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
thickness: 5mm
PADDING: 26MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 250 N Euro 17 CV, 13 kw 2cil. CB250N Bastidores: CB250N-3000008-CB250N-3004407 1978-1979
Honda CB 250 N Euro 17 CV, 13 kw 2cil. CB250N A Bastidores: CB250N-3100001-CB250N-3199999 1980
Honda CB 250 N Euro 17 CV, 13 kw 2cil. CB250N B Bastidores: CB250N-3200002-CB250N-3299999 1981
Honda CB 250 N Euro 27 CV, 20 kw 2cil. CB250N Bastidores: CB250N-2005191-CB250N-2005240 1978-1979
Honda CB 250 N Euro 27 CV, 20 kw 2cil. CB250N A Bastidores: CB250N-2108874-CB250N-2106923 1980
Honda CB 250 N Euro 27 CV, 20 kw 2cil. CB250N B Bastidores: CB250N-2200001-CB250N-2299999 1981
Honda CB 650 SC Custom 50 CV, 37 kw 4cil. RC08 C Bastidores: RC08-3000002-RC08-3099999 1982-1983
Honda CB 650 SC Custom 63 CV, 46 kw 4cil. RC08 C Bastidores: RC08-2000023-RC08-2099999 1982-1983
Honda CB 750 K 77 CV, 57 kw 4cil. RC01 A Bastidores: RC01-2115751-RC01-2118618 1980
Honda CB 750 K 77 CV, 57 kw 4cil. RC01 B Bastidores: RC01-2300006-RC01-2399999 1981-1982
Honda CB 750 K 77 CV, 57 kw 4cil. RC01 Z Bastidores: RC01-2000121-RC01-2032973 1978-1979
Honda CB 900 F Bol d´Or 95 CV, 70 kw 4cil. SC01 A Bastidores: SC01-2100002-SC01-2112185 1980
Honda CB 900 F Bol d´Or 95 CV, 70 kw 4cil. SC01 B Bastidores: SC01-2200038-SC01-2209987 1981
Honda CB 900 F Bol d´Or 95 CV, 70 kw 4cil. SC01 Z Bastidores: SC01-2000050-SC01-2015357 1979
Honda CB 900 F Bol d´Or 95 CV, 70 kw 4cil. SC09 C Bastidores: SC09-2000019-SC09-2099999 1982
Honda CB 900 F Bol d´Or 95 CV, 70 kw 4cil. SC09 D Bastidores: SC09-2100001-SC09-2199999 1983
Honda CB 900 F2 Bol d´Or 95 CV, 70 kw 4cil. SC01 B Bastidores: SC01-4000012-SC01-4010949 1981
Honda CB 900 F2 Bol d´Or 95 CV, 70 kw 4cil. SC09 C Bastidores: SC09-4000025-SC09-4099999 1982
Honda CB 900 F2 Bol d´Or 95 CV, 70 kw 4cil. SC09 D Bastidores: SC09-4100001-SC09-4199999 1983
Honda CBX 1000 105 CV, 77 kw 6cil. CB1 Z Bastidores: CB1-2000871-CB1-2024578 1979
Honda CX 500 E Euro Sports 27 CV, 20 kw 2cil. PC06 C Bastidores: PC06-3000004-PC06-3099999 1982-1986
Honda CX 500 E Euro Sports 50 CV, 37 kw 2cil. PC06 C Bastidores: PC06-2000610-PC06-2099999 1982-1986
Honda CX 650 E Euro 50 CV, 37 kw 2cil. RC12 D Bastidores: RC12-3000002-RC12-3099999 1983
Honda CX 650 E Euro 64 CV, 47 kw 2cil. RC12 D Bastidores: RC12-2000009-RC12-2099999 1983
Honda GL 1000 Z Goldwing 78 CV, 57 kw 4cil. GL2 Bastidores: GL2-4113174-GL2-4117645 1979
Honda GL 1100 D Goldwing carenado 83 CV, 61 kw 4cil. SC02 A Bastidores: SC02-4021107-SC02-4021630 1980
Honda GL 1100 D Goldwing carenado 83 CV, 61 kw 4cil. SC02 B Bastidores: SC02-4100001-SC02-4199999 1981
Honda GL 1100 D Goldwing carenado 83 CV, 61 kw 4cil. SC02 C Bastidores: SC02-4200001-SC02-4299999 1982-1983
Honda GL 1100 Goldwing 83 CV, 61 kw 4cil. SC02 A Bastidores: SC02-2000050-SC02-2021831 1980
Honda GL 1100 Goldwing 83 CV, 61 kw 4cil. SC02 B Bastidores: SC02-2100001-SC02-2199999 1981
Honda GL 1100 Goldwing 83 CV, 61 kw 4cil. SC02 C Bastidores: SC02-2200001-SC02-2299999 1982-1983
760.04.15
10 Items
Data sheet
- EXTERNAL DIAMETER
- 276 MM
- CIRCLE MEASUREMENT
- 78MM
- HOLE DIAMETER
- 8.5 MM
- INSIDE DIAMETER
- 78MM
- VERSION
- FLOATING
- QUANTITY OF HOLES
- 5
- STUFFED
- 26 MM
- THICKNESS
- 5 MM
