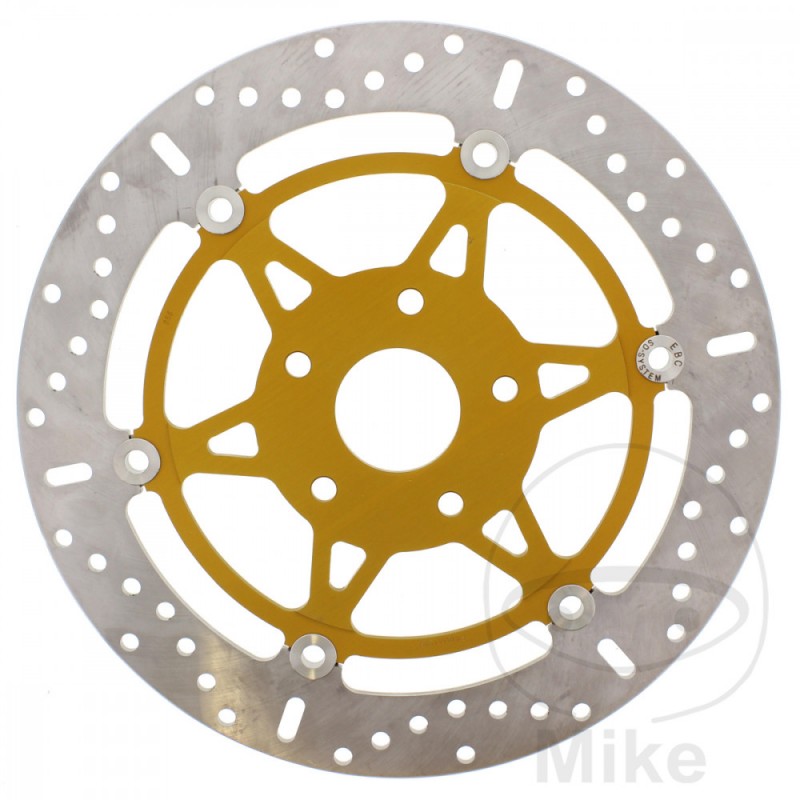

EBC Floating brake disc X ALTN: 7605002 760.03.92

EBC X/XC Series - Fully Floating Brake Discs for the Front Wheel

These brake discs replace many of the LS (left) / RS (right) brake discs and can be mounted on both sides.

The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking power is further increased.

The weight of the new X and XC series is reduced even further, between 5 and 10%, thanks to the 6-rivet system with a light inner ring, which is again an improvement over conventional brake discs.

The new brake discs are equipped with EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses allow unlimited expansion of the outer and inner ring under the heat generated during braking without affecting the riveted bond.

This degradation occurs when the brake disc heats up from hard braking and the outer ring comes into contact with the (usually round) rivets that separate the outer ring from the inner ring. EBC's new system avoids this problem, which is the cause of 100% of brake disc defects caused by disc distortion and vibration.

What is the SD system? It is the new square rivet system from EBC. This system completely prevents brake disc warpage, increases the service life of the brake disc and improves the consistency of the braking effect.
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 52.2MM
CIRCLE SIZE: 80 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
thickness: 5mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KTM Duke 690 ABS 44 CV, 32 kw 1cil. - Bastidores: --- 2016-2019
KTM Duke 690 ABS 68/44 CV, 50/32 kw 1cil. - Bastidores: --- 2013-2015
KTM Duke 690 ABS 73 CV, 54 kw 1cil. - Bastidores: --- 2016-2019
KTM Duke 690 R ABS 44 CV, 32 kw 1cil. - Bastidores: --- 2013-2017
KTM Duke 690 R ABS 70 CV, 51,5 kw 1cil. - Bastidores: --- 2013-2015
KTM Duke 690 R ABS 75 CV, 55 kw 1cil. - Bastidores: --- 2016-2017
