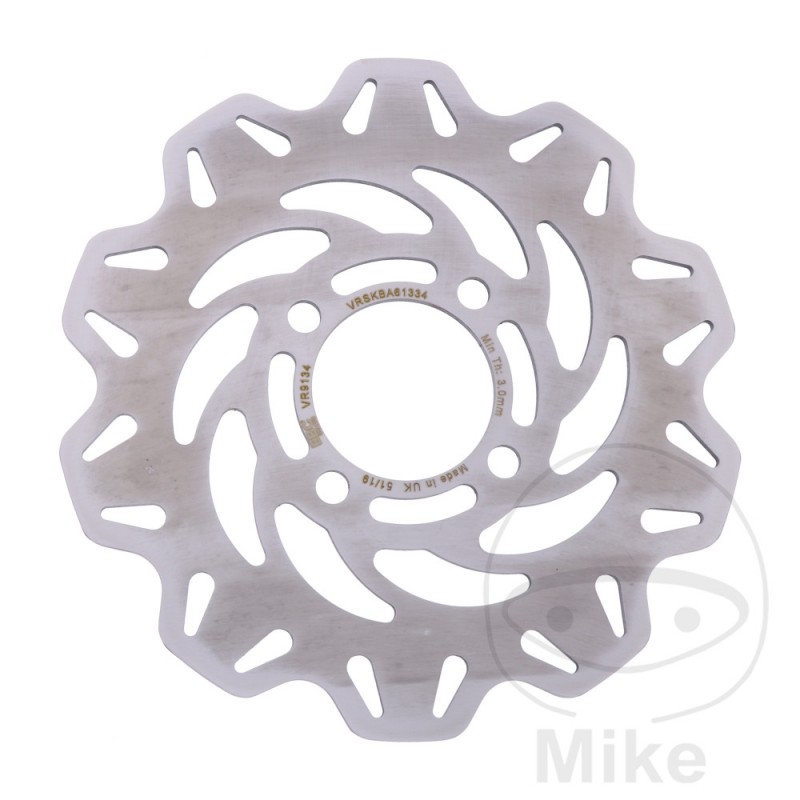

EBC BRAKE DISK VEE SCOOTER 760.01.88

EBC Vee Rotor Brake Disc

The steel used for the new EBC VR brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs.

They are completely made of stainless steel, heat treated and provide the rider with optimal hardness. In addition to weight savings, cooling of the brake disc is essential.

For optimal cleaning of the brake disc, the braking surface is perforated in a design that also saves weight.

The fewer holes there are, the better the braking behavior in the wet and the less wear on the brake disc.

The driver benefits from improved brake feel and response,

as well as the life of the brake disc due to the improved quality. The material is therefore resistant to wear and exposed to cracking.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 58.2MM
CIRCLE SIZE: 78 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
THICKNESS: 3.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda AFS 110 2SH i Wave 8,7 CV, 6,4 kw 1cil. JC51A C Bastidores: LTM JC51A henceforthC5000001-- 2012-2014
Honda AFS 110 CSF i Wave 8,7 CV, 6,4 kw 1cil. JC51B F Bastidores: LTM JC51B-F5100001-- 2015-2016
Honda NSC 110 MPD Vision CBS 8,4 CV, 6,2 kw 1cil. JF31B C Bastidores: LWB JF31B8-C1100016-LWB JF31B8-C1199999 2012-2013
Honda NSC 110 MPD Vision CBS 8,4 CV, 6,2 kw 1cil. JF53B E Bastidores: ZDC JF53B-EF000001-- 2014-2016
Honda NSC 110 MPD Vision CBS 8,8 CV, 6,5 kw 1cil. JF67A H Bastidores: ZDC JF67A-HF000001-ZDC JF67A-HF099999 2017-2018
Honda NSC 110 Vision CBS 8,7 CV, 6,4 kw 1cil. JK03A M Bastidores: RLH JK03A-MZ000001-RLH JK03A-MZ199999 2021-2022
Honda NSC 50 MPD Vision 16 pulgadas 3,4 CV, 2,5 kw 1cil. AF72B C Bastidores: LWB AF72B9-C1100015-LWB AF72B9-C1199999 2012-2013
Honda NSC 50 MPD Vision 16 pulgadas 3,4 CV, 2,5 kw 1cil. AF73B E Bastidores: ZDC AF73B-EF000001-ZDC AF73B-EF099999 2014-2019
Honda NSC 50 R 2WH 3,4 CV, 2,5 kw 1cil. AF72C D Bastidores: LWB AF72C1-D1200023-LWB AF72C1-D1299999 2013
Honda NSC 50 R T2 3,4 CV, 2,5 kw 1cil. AF73C E Bastidores: ZDC AF73C-EF000001-ZDC AF73C-EF099999 2014
Honda NSC 50 R T2 3,4 CV, 2,5 kw 1cil. AF73C F Bastidores: ZDC AF73C-FF500001-- 2015-2017
Honda NSC 50 WH Vision 14 pulgadas 3,4 CV, 2,5 kw 1cil. AF72A C Bastidores: LWB AF72A1-C1000031-LWB AF72A1-C1099999 2012-2013
Honda PCX 125 EX2 WW 125 CBS 11,7 CV, 8,6 kw 1cil. JF28A A Bastidores: MLH JF28A-A5000001-MLH JF28A-A5999999 2010-2011
Honda PCX 125 EX2 WW 125 CBS 11,7 CV, 8,6 kw 1cil. JF28A C Bastidores: MLH JF28A-A5200001-MLH JF28A-A5299999 2012-2014
Honda PCX 125 EX2 WW 125 CBS 11,7 CV, 8,6 kw 1cil. JF57A F Bastidores: ZDC JF57A-FF000001-ZDC JF57A-FF999999 2015-2016
Honda PCX 125 EX2 WW 125 CBS 11,7 CV, 8,6 kw 1cil. JF64A H Bastidores: ZDC JF64A-HF000001-- 2017-2018
Honda PCX 125 WW 125 CBS 11,7 CV, 8,6 kw 1cil. JF47A D Bastidores: ZDC JF47A-DF000001-ZDCJF47A-DF999999 2013
Honda PCX 150 EX2 WW 150 13,6 CV, 10 kw 1cil. KF19A F Bastidores: ZDC KF19A-FF000001-- 2015-2018
Honda PCX 150 WW 150 1cil. KF12A C Bastidores: MLH KF12A-C50000001-MLHKF12A-C5099999 2012
Honda PCX 150 WW 150 1cil. KF15A D Bastidores: ZDC KF15A-DF000001-ZDC KF15A-DF099999 2013
