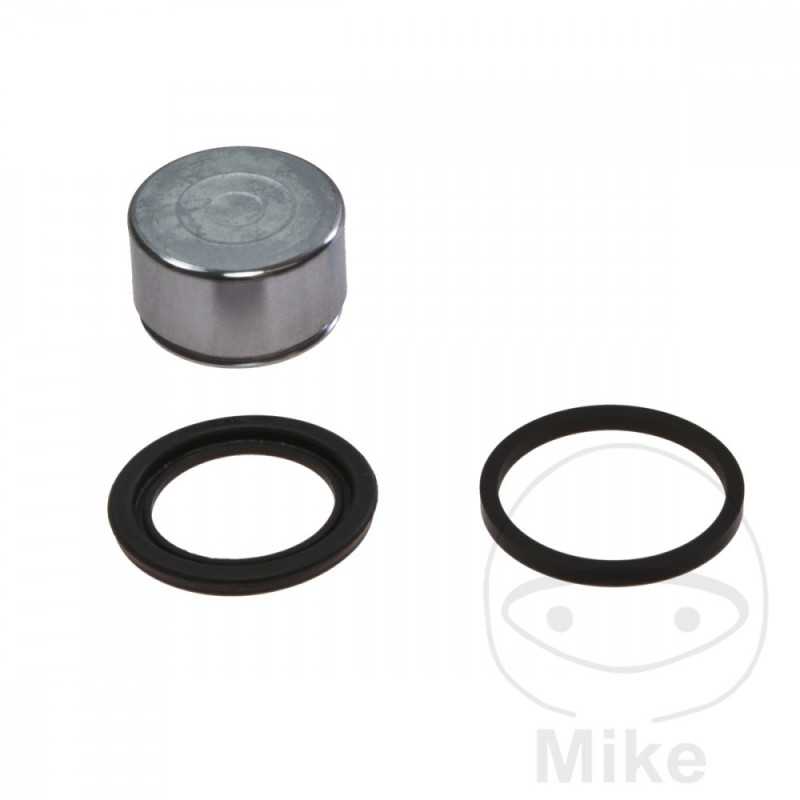

TOURMAX Brake caliper piston repair kit 717.02.77

Tourmax brake caliper piston repair kit

Made in Japan

Contains all the necessary parts to replace a caliper piston.
INSIDE DIAMETER: 30.00MM
OUTSIDE DIAMETER: 38.15MM
HEIGHT: 21.75MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI GS 500 E 46 CV, 34 KW 2CIL. GM51B K BASTIDORES: GM51B-100001-GM51B-102075 1989
SUZUKI GS 500 E 46 CV, 34 KW 2CIL. GM51B L BASTIDORES: GM51B-102076-GM51B-105600 1990
SUZUKI GS 500 E 46 CV, 34 KW 2CIL. GM51B M BASTIDORES: GM51B-105601-GM51B-110302 1991
SUZUKI GS 500 E 46 CV, 34 KW 2CIL. GM51B N BASTIDORES: GM51B-110303-GM51B-117230 1992
SUZUKI GS 500 EU 27 CV, 20 KW 2CIL. GM51B K BASTIDORES: GM51B-100001-GM51B-102075 1989
SUZUKI GS 500 EU 27 CV, 20 KW 2CIL. GM51B L BASTIDORES: GM51B-102076-GM51B-105600 1990
SUZUKI GS 500 EU 27 CV, 20 KW 2CIL. GM51B M BASTIDORES: GM51B-105601-GM51B-110302 1991
SUZUKI GS 500 EU 27 CV, 20 KW 2CIL. GM51B N BASTIDORES: GM51B-110303-GM51B-117230 1992
SUZUKI GS 500 EUZ 27 CV, 20 KW 2CIL. GM51B K BASTIDORES: GM51B-100001-GM51B-102075 1989
SUZUKI GS 500 EZ 46 CV, 34 KW 2CIL. GM51B K BASTIDORES: GM51B-100001-GM51B-102075 1989
SUZUKI GSF 400 BANDIT 58,5 CV, 43 KW 4CIL. GK75A M BASTIDORES: GK75A-105792-GK75A-114212 1991
SUZUKI GSF 400 BANDIT 58,5 CV, 43 KW 4CIL. GK75A N BASTIDORES: GK75A-114213-GK75A-124976 1992
SUZUKI GSF 400 BANDIT 58,5 CV, 43 KW 4CIL. GK75B M BASTIDORES: GK75B-100001-GK75B-101176 1991
SUZUKI GSF 400 BANDIT 58,5 CV, 43 KW 4CIL. GK75B N BASTIDORES: GK75B-101177-GK75B-102101 1992
SUZUKI GSX 550 E CARENADO MANILLAR 64 CV, 47 KW 4CIL. GN71D D BASTIDORES: GN71D-100001-GN71D-110805 1983-1984
SUZUKI GSX 550 E CARENADO MANILLAR 68 CV, 50 KW 4CIL. GN71D F BASTIDORES: GN71D-110806-GN71D-112892 1985
SUZUKI GSX 550 E CARENADO MANILLAR 68 CV, 50 KW 4CIL. GN71D G BASTIDORES: GN71D-112893-GN71D-115582 1986
SUZUKI GSX 550 EF FULL FARING 64 CV, 47 KW 4CIL. GN71D E BASTIDORES: GN71D-105088-GN71D-110805 1984
SUZUKI GSX 550 EF FULL FARING 68 CV, 50 KW 4CIL. GN71D F BASTIDORES: GN71D-110806-GN71D-112892 1985
SUZUKI GSX 550 EF FULL FARING 68 CV, 50 KW 4CIL. GN71D G BASTIDORES: GN71D-112893-GN71D-115582 1986
SUZUKI GSX 550 EF FULL FARING 68 CV, 50 KW 4CIL. GN71D H BASTIDORES: GN71D-115583-- 1987
SUZUKI GSX 550 ES SEMICARENADO 64 CV, 47 KW 4CIL. GN71D D BASTIDORES: GN71D-100001-GN71D-105087 1983
SUZUKI GSX 550 ES SEMICARENADO 64 CV, 47 KW 4CIL. GN71D E BASTIDORES: GN71D-105088-GN71D-110805 1984
SUZUKI GSX 550 ES SEMICARENADO 68 CV, 50 KW 4CIL. GN71D F BASTIDORES: GN71D-110806-GN51D-112892 1985
SUZUKI GSX 550 ES SEMICARENADO 68 CV, 50 KW 4CIL. GN71D G BASTIDORES: GN71D-112893-GN71D-115582 1986
SUZUKI GSX 550 ES SEMICARENADO 68 CV, 50 KW 4CIL. GN71D H BASTIDORES: GN71D-115583-- 1987
SUZUKI GSX 550 EU CARENADO MANILLAR 50 CV, 36 KW 4CIL. GN71D F BASTIDORES: GN71D-110806-GN71D-112892 1985
SUZUKI GSX 550 EU CARENADO MANILLAR 50 CV, 36 KW 4CIL. GN71D G BASTIDORES: GN71D-112893-GN71D-115582 1986
SUZUKI GSX 550 EU CARENADO MANILLAR 50 CV, 36 KW 4CIL. GN71D H BASTIDORES: GN71D-115583-- 1987
SUZUKI GSX 600 F 86 CV, 63 KW 4CIL. GN72B J BASTIDORES: GN72B-100001-GN72B-101933 1988
SUZUKI GSX 600 F 86 CV, 63 KW 4CIL. GN72B K BASTIDORES: GN72B-101934-GN72B-103195 1989
SUZUKI GSX 600 F 86 CV, 63 KW 4CIL. GN72B L BASTIDORES: GN72B-103196-GN72B-105125 1990
SUZUKI GSX 600 F 86 CV, 63 KW 4CIL. GN72B M BASTIDORES: GN72B-105126-GN72B-107851 1991
SUZUKI GSX 600 FU 50 CV, 37 KW 4CIL. GN72B J BASTIDORES: GN72B-100001-GN72B-101933 1988
SUZUKI GSX 600 FU 50 CV, 37 KW 4CIL. GN72B K BASTIDORES: GN72B-101934-GN72B-103195 1989
SUZUKI GSX 600 FU 50 CV, 37 KW 4CIL. GN72B L BASTIDORES: GN72B-103196-GN72B-105125 1990
SUZUKI GSX 600 FU 50 CV, 37 KW 4CIL. GN72B M BASTIDORES: GN72B-105126-GN72B-107851 1991
SUZUKI GSX 600 FU2 27 CV, 20 KW 4CIL. GN72B J BASTIDORES: GN72B-100001-GN72B-101933 1988
SUZUKI GSX 600 FU2 27 CV, 20 KW 4CIL. GN72B K BASTIDORES: GN72B-101934-GN72B-103195 1989
SUZUKI GSX 600 FU2 27 CV, 20 KW 4CIL. GN72B L BASTIDORES: GN72B-103196-GN72B-105125 1990
SUZUKI GSX 600 FU2 27 CV, 20 KW 4CIL. GN72B M BASTIDORES: GN72B-105126-GN72B-107851 1991
SUZUKI GSX 750 F 100 CV, 74 KW 4CIL. GR78A K BASTIDORES: GR78A-100001-GR78A-105764 1989
SUZUKI GSX 750 F 100 CV, 74 KW 4CIL. GR78A L BASTIDORES: GR78A-105765-GR78A-113117 1990
SUZUKI GSX 750 F 100 CV, 74 KW 4CIL. GR78A M BASTIDORES: GR78A-113118-GR78A-119544 1991
SUZUKI GSX 750 F 100 CV, 74 KW 4CIL. GR78A N BASTIDORES: GR78A-119545-GR78A-125060 1992
SUZUKI GSX-R 1100 100 CV, 74 KW 4CIL. GU74CD G BASTIDORES: GU74CD-100001-GU74CD-103178 1986
SUZUKI GSX-R 1100 100 CV, 74 KW 4CIL. GU74CD H BASTIDORES: GU74CD-103179-GU74CD-106097 1987
SUZUKI GSX-R 1100 100 CV, 74 KW 4CIL. GU74CD J BASTIDORES: GU74CD-106098-- 1988
SUZUKI GSX-R 750 100 CV, 74 KW 4CIL. GR75A F BASTIDORES: GR75A-100001-GR75A-107367 1985
SUZUKI GSX-R 750 100 CV, 74 KW 4CIL. GR75A G BASTIDORES: GR75A-107368-GR75A-112129 1986
SUZUKI GSX-R 750 100 CV, 74 KW 4CIL. GR75A H BASTIDORES: GR75A-112130-- 1987
SUZUKI GSX-R 750 R SPECIAL EDITION 100 CV, 74 KW 4CIL. GR75A G BASTIDORES: GR75A-110982-- 1986
SUZUKI GSX-R 750 X 100 CV, 74 KW 4CIL. GR75A G BASTIDORES: GR75A-107368-GR75A-112129 1986
SUZUKI GSX-R 750 X 100 CV, 74 KW 4CIL. GR75A H BASTIDORES: GR75A-112130-- 1987
SUZUKI RG 250 C GAMMA 49 CV, 36 KW 2CIL. GJ21B H BASTIDORES: GJ21B-119221-- 1986-1988
SUZUKI RG 250 FC GAMMA 27 CV, 20 KW 2CIL. GJ21B H BASTIDORES: GJ21B-119221-- 1986-1988
SUZUKI RG 250 W GAMMA 46 CV, 34 KW 2CIL. GJ21A D BASTIDORES: GJ21A-106347-GJ21A-134996 1983
SUZUKI RG 250 W GAMMA 46 CV, 34 KW 2CIL. GJ21A E BASTIDORES: GJ21A-134997-- 1984
SUZUKI RG 500 C GAMMA 95 CV, 70 KW 4CIL. HM31A H BASTIDORES: HM31A-105404-- 1987-1989
SUZUKI RG 500 GAMMA 95 CV, 70 KW 4CIL. HM31A G BASTIDORES: HM31A-100001-HM31A-105403 1986
