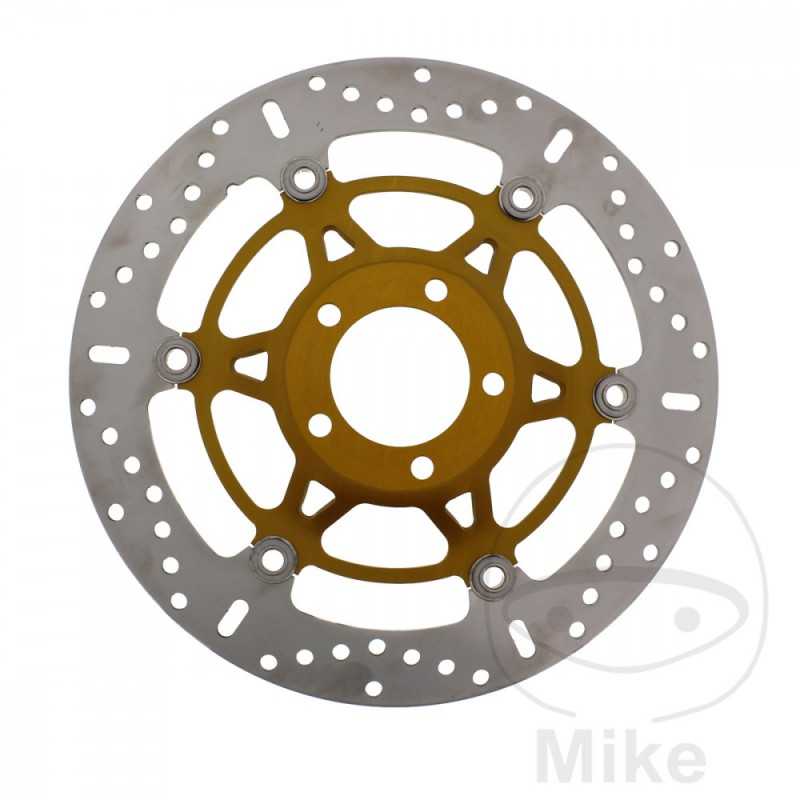

EBC Brake disc stainless steel X / XC 760.19.11

EBC X / XC series: fully floating brake discs for the front wheel

These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.

The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.

The new rotors are equipped with EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.

Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system prevents this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.

What is the SD system? It is the new square riveting system from EBC. This system completely prevents distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 310MM
INSIDE DIAMETER: 64.2MM
CIRCLE SIZE: 86 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
thickness: 5mm
PADDING: 22.3MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI GSX-R 1100 100 CV, 74 KW 4CIL. GV73C K BASTIDORES: GV73C-100001-GV73C-102566 1989
SUZUKI GSX-R 1100 100 CV, 74 KW 4CIL. GV73C L BASTIDORES: GV73C-102567-GV73C-104826 1990
SUZUKI GSX-R 1100 100 CV, 74 KW 4CIL. GV73C M BASTIDORES: GV73C-104827-GV73C-107721 1991
SUZUKI GSX-R 1100 100 CV, 74 KW 4CIL. GV73C N BASTIDORES: GV73C-107722-- 1992
SUZUKI GSX-R 1100 W 155/98 CV,114/72KW 4CIL. GU75C P BASTIDORES: GU75C-100001-GU75C-103514 1993
SUZUKI GSX-R 1100 W 155/98 CV,114/72KW 4CIL. GU75C R BASTIDORES: GU75C-103515-GU75C-104538 1994
SUZUKI GSX-R 1100 W 155/98 CV,114/72KW 4CIL. GU75C S BASTIDORES: GU75C-104539-GU75C-105331 1995
SUZUKI GSX-R 1100 W 155/98 CV,114/72KW 4CIL. GU75C T BASTIDORES: GU75C-105332-- 1996-1997
SUZUKI GSX-R 750 100/108 CV, 74/79 KW 4CIL. GR7AB M BASTIDORES: GR7AB-100001-- 1991
SUZUKI GSX-R 750 100/110 CV, 74/81 KW 4CIL. GR7AB L BASTIDORES: GR7AB-100007-- 1990
SUZUKI GSX-R 750 100/112 CV, 74/82 KW 4CIL. GR77B J BASTIDORES: GR77B-100001-GR77B-105048 1988
SUZUKI GSX-R 750 100/112 CV, 74/82 KW 4CIL. GR77B K BASTIDORES: GR77B-105049-- 1989
SUZUKI GSX-R 750 W 100/112 CV, 74/82 KW 4CIL. GR7BB N BASTIDORES: GR7BB-100001-GR7BB-103704 1992
SUZUKI GSX-R 750 W 100/112 CV, 74/82 KW 4CIL. GR7BB P BASTIDORES: GR7BB-103705-GR7BB-106835 1993
SUZUKI GSX-R 750 W 98/118 CV, 72/86,8 KW 4CIL. GR7BB R BASTIDORES: GR7BB-106836-GR7BB-109339 1994
SUZUKI GSX-R 750 W 98/118 CV, 72/86,8 KW 4CIL. GR7BB S BASTIDORES: GR7BB-109340-- 1995
