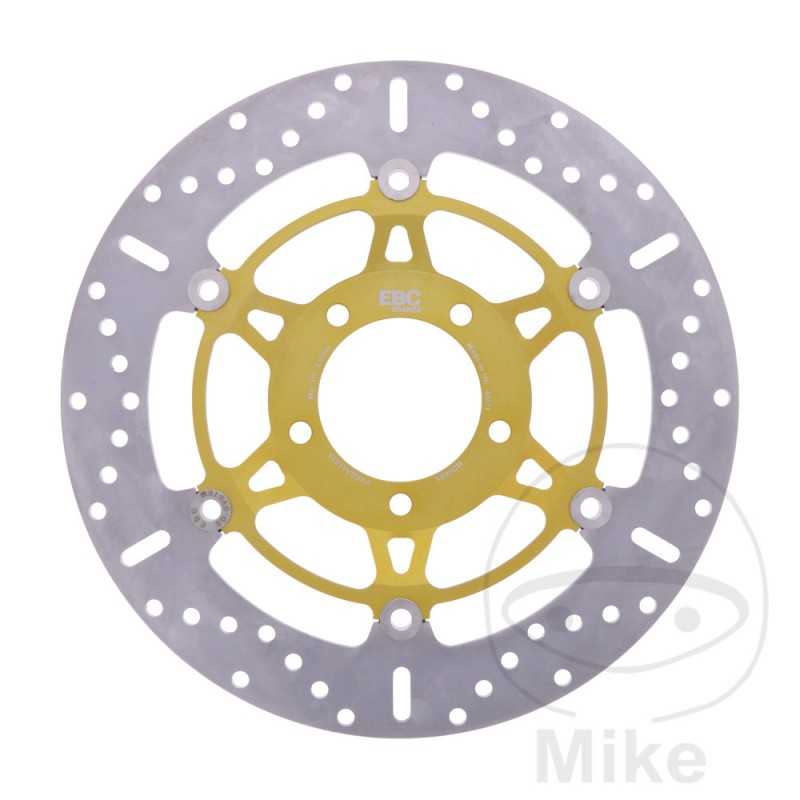

EBC Brake disc stainless steel X / XC 760.17.68
€222.95
Tax included
EBC X / XC series: fully floating brake discs for the front wheel
These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.
The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.
The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.
The new rotors are equipped with EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint. .
Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system prevents this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.
What is the SD system? It is the new square riveting system from EBC. This system completely prevents distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 78.2MM
CIRCLE SIZE: 100 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
THICKNESS: 4.5MM
PADDING: 14.5MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
TRIUMPH DAYTONA 955 I BASCULANTE DOS BRAZOS 147/98 CV, 108/72 KW 3CIL. 595N BASTIDORES: 535 --535 - 2002
TRIUMPH DAYTONA 955 I CENTENNIAL MONOBASCULANTE 147/98 CV, 108/72 KW 3CIL. 595N BASTIDORES: 536 --536 - 2002
TRIUMPH DAYTONA 955 I MONOBASCULANTE 147/98 CV, 108/72 KW 3CIL. 595N BASTIDORES: 536 - 132513-536 - 2003
TRIUMPH DAYTONA 955 I MONOBASCULANTE 147/98 CV, 108/72 KW 3CIL. 595N BASTIDORES: 536 - 186151-536 - 2005-2006
TRIUMPH DAYTONA 955 I MONOBASCULANTE 147/98 CV, 108/72 KW 3CIL. 595N BASTIDORES: 536 --536 - 186150 2004
TRIUMPH ROCKET 2300 III 140 CV, 103 KW 3CIL. C23XB BASTIDORES: 1 --1 - 2004-2005
TRIUMPH ROCKET 2300 III 140/98 CV, 103/72 KW 3CIL. C23XB BASTIDORES: 1 --1 - 2006-2007
TRIUMPH ROCKET 2300 III 140/98 CV, 103/72 KW 3CIL. C23XB BASTIDORES: SMTTLC1035 --SMTTLC1035 - 2008-2009
TRIUMPH ROCKET 2300 III 98 CV, 72 KW 3CIL. C23XB BASTIDORES: 1 --1 - 2004-2005
TRIUMPH ROCKET 2300 III CLASSIC 140/98 CV, 103/72 KW 3CIL. C23XB BASTIDORES: 1 --1 - 2006-2007
TRIUMPH ROCKET 2300 III CLASSIC 140/98 CV, 103/72 KW 3CIL. C23XB BASTIDORES: SMTTLC6035 --SMTTLC6035 - 2007-2009
TRIUMPH ROCKET 2300 III ROADSTER ABS 148/98 CV, 109/72 KW 3CIL. C20 BASTIDORES: SMTTLC1235 --SMTTLC1235 - 2013-2018
TRIUMPH ROCKET 2300 III ROADSTER ABS 148/98 CV, 109/72 KW 3CIL. C23XB BASTIDORES: SMTTLC1235 --SMTTLC1235 - 2010-2012
TRIUMPH ROCKET 2300 III X ROADSTER ABS 148/98 CV, 109/72 KW 3CIL. C20 BASTIDORES: SMTTLC1235 --SMTTLC1235 - 2015-2016
TRIUMPH SPEED TRIPLE 955 EFI 120/98 CV, 88/72 KW 3CIL. 595N BASTIDORES: 566 - 141872-566 - 2002
TRIUMPH SPEED TRIPLE 955 EFI 120/98 CV, 88/72 KW 3CIL. 595N BASTIDORES: 566 - 186151-566 - 210444 2004
TRIUMPH SPEED TRIPLE 955 EFI 120/98 CV, 88/72 KW 3CIL. 595N BASTIDORES: 566 --566 - 186150 2003
TRIUMPH SPRINT 1050 ST 125/98 CV, 92/72 KW 3CIL. 215NA BASTIDORES: 1 - 208167-1 - 2005
TRIUMPH SPRINT 1050 ST 125/98 CV, 92/72 KW 3CIL. 215NA BASTIDORES: 1 --1 - 2006
TRIUMPH SPRINT 1050 ST 126 CV, 93 KW 3CIL. 215NA BASTIDORES: 4 --4 - 2007
TRIUMPH SPRINT 1050 ST 126 CV, 93 KW 3CIL. 215NA BASTIDORES: SMTTF6905J - 388247-SMTTF6905J - 440388 2009
TRIUMPH SPRINT 1050 ST 126 CV, 93 KW 3CIL. 215NA BASTIDORES: SMTTF6905J - 440389-SMTTF6905J - 2010
TRIUMPH SPRINT 1050 ST 126 CV, 93 KW 3CIL. 215NA BASTIDORES: SMTTF6905J --SMTTF6905J - 2007-2008
TRIUMPH SPRINT 1050 ST 98 CV, 72 KW 3CIL. 215NA BASTIDORES: 4 --4 - 2007
TRIUMPH SPRINT 1050 ST 98 CV, 72 KW 3CIL. 215NA BASTIDORES: SMTTF6905J - 440389-SMTTF6905J - 2010
TRIUMPH SPRINT 1050 ST 98 CV, 72 KW 3CIL. 215NA BASTIDORES: SMTTF6905J --SMTTF6905J - 2007
TRIUMPH SPRINT 1050 ST 98 CV, 72 KW 3CIL. 215NA BASTIDORES: SMTTF6905J --SMTTF6905J - 388246 2008
TRIUMPH SPRINT 1050 ST 98 CV, 72 KW 3CIL. 215NA BASTIDORES: SMTTF6905J --SMTTF6905J - 440388 2009
TRIUMPH SPRINT 1050 ST ABS 126 CV, 93 KW 3CIL. 215NA BASTIDORES: SMTTF6915J - 440389-SMTTF6915J - 2010
TRIUMPH SPRINT 1050 ST ABS 126 CV, 93 KW 3CIL. 215NA BASTIDORES: SMTTF6915J --SMTTF6915J - 2006-2008
TRIUMPH SPRINT 1050 ST ABS 126 CV, 93 KW 3CIL. 215NA BASTIDORES: SMTTF6915J --SMTTF6915J - 440388 2009
TRIUMPH SPRINT 1050 ST ABS 98 CV, 72 KW 3CIL. 215NA BASTIDORES: SMTTF6915J - 440389-SMTTF6915J - 2010
TRIUMPH SPRINT 1050 ST ABS 98 CV, 72 KW 3CIL. 215NA BASTIDORES: SMTTF6915J --SMTTF6915J - 2006-2008
TRIUMPH SPRINT 1050 ST ABS 98 CV, 72 KW 3CIL. 215NA BASTIDORES: SMTTF6915J --SMTTF6915J - 440388 2009
ZERO SR/F ABS 110 CV, 82 KW 0CIL. - BASTIDORES: --- 2020-2021
ZERO SR/F PREMIUM ABS 110 CV, 82 KW 0CIL. - BASTIDORES: --- 2020
ZERO SR/S ABS 110 CV, 82 KW 0CIL. - BASTIDORES: --- 2021
These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.
The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.
The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.
The new rotors are equipped with EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint. .
Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system prevents this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.
What is the SD system? It is the new square riveting system from EBC. This system completely prevents distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 78.2MM
CIRCLE SIZE: 100 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
THICKNESS: 4.5MM
PADDING: 14.5MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
TRIUMPH DAYTONA 955 I BASCULANTE DOS BRAZOS 147/98 CV, 108/72 KW 3CIL. 595N BASTIDORES: 535 --535 - 2002
TRIUMPH DAYTONA 955 I CENTENNIAL MONOBASCULANTE 147/98 CV, 108/72 KW 3CIL. 595N BASTIDORES: 536 --536 - 2002
TRIUMPH DAYTONA 955 I MONOBASCULANTE 147/98 CV, 108/72 KW 3CIL. 595N BASTIDORES: 536 - 132513-536 - 2003
TRIUMPH DAYTONA 955 I MONOBASCULANTE 147/98 CV, 108/72 KW 3CIL. 595N BASTIDORES: 536 - 186151-536 - 2005-2006
TRIUMPH DAYTONA 955 I MONOBASCULANTE 147/98 CV, 108/72 KW 3CIL. 595N BASTIDORES: 536 --536 - 186150 2004
TRIUMPH ROCKET 2300 III 140 CV, 103 KW 3CIL. C23XB BASTIDORES: 1 --1 - 2004-2005
TRIUMPH ROCKET 2300 III 140/98 CV, 103/72 KW 3CIL. C23XB BASTIDORES: 1 --1 - 2006-2007
TRIUMPH ROCKET 2300 III 140/98 CV, 103/72 KW 3CIL. C23XB BASTIDORES: SMTTLC1035 --SMTTLC1035 - 2008-2009
TRIUMPH ROCKET 2300 III 98 CV, 72 KW 3CIL. C23XB BASTIDORES: 1 --1 - 2004-2005
TRIUMPH ROCKET 2300 III CLASSIC 140/98 CV, 103/72 KW 3CIL. C23XB BASTIDORES: 1 --1 - 2006-2007
TRIUMPH ROCKET 2300 III CLASSIC 140/98 CV, 103/72 KW 3CIL. C23XB BASTIDORES: SMTTLC6035 --SMTTLC6035 - 2007-2009
TRIUMPH ROCKET 2300 III ROADSTER ABS 148/98 CV, 109/72 KW 3CIL. C20 BASTIDORES: SMTTLC1235 --SMTTLC1235 - 2013-2018
TRIUMPH ROCKET 2300 III ROADSTER ABS 148/98 CV, 109/72 KW 3CIL. C23XB BASTIDORES: SMTTLC1235 --SMTTLC1235 - 2010-2012
TRIUMPH ROCKET 2300 III X ROADSTER ABS 148/98 CV, 109/72 KW 3CIL. C20 BASTIDORES: SMTTLC1235 --SMTTLC1235 - 2015-2016
TRIUMPH SPEED TRIPLE 955 EFI 120/98 CV, 88/72 KW 3CIL. 595N BASTIDORES: 566 - 141872-566 - 2002
TRIUMPH SPEED TRIPLE 955 EFI 120/98 CV, 88/72 KW 3CIL. 595N BASTIDORES: 566 - 186151-566 - 210444 2004
TRIUMPH SPEED TRIPLE 955 EFI 120/98 CV, 88/72 KW 3CIL. 595N BASTIDORES: 566 --566 - 186150 2003
TRIUMPH SPRINT 1050 ST 125/98 CV, 92/72 KW 3CIL. 215NA BASTIDORES: 1 - 208167-1 - 2005
TRIUMPH SPRINT 1050 ST 125/98 CV, 92/72 KW 3CIL. 215NA BASTIDORES: 1 --1 - 2006
TRIUMPH SPRINT 1050 ST 126 CV, 93 KW 3CIL. 215NA BASTIDORES: 4 --4 - 2007
TRIUMPH SPRINT 1050 ST 126 CV, 93 KW 3CIL. 215NA BASTIDORES: SMTTF6905J - 388247-SMTTF6905J - 440388 2009
TRIUMPH SPRINT 1050 ST 126 CV, 93 KW 3CIL. 215NA BASTIDORES: SMTTF6905J - 440389-SMTTF6905J - 2010
TRIUMPH SPRINT 1050 ST 126 CV, 93 KW 3CIL. 215NA BASTIDORES: SMTTF6905J --SMTTF6905J - 2007-2008
TRIUMPH SPRINT 1050 ST 98 CV, 72 KW 3CIL. 215NA BASTIDORES: 4 --4 - 2007
TRIUMPH SPRINT 1050 ST 98 CV, 72 KW 3CIL. 215NA BASTIDORES: SMTTF6905J - 440389-SMTTF6905J - 2010
TRIUMPH SPRINT 1050 ST 98 CV, 72 KW 3CIL. 215NA BASTIDORES: SMTTF6905J --SMTTF6905J - 2007
TRIUMPH SPRINT 1050 ST 98 CV, 72 KW 3CIL. 215NA BASTIDORES: SMTTF6905J --SMTTF6905J - 388246 2008
TRIUMPH SPRINT 1050 ST 98 CV, 72 KW 3CIL. 215NA BASTIDORES: SMTTF6905J --SMTTF6905J - 440388 2009
TRIUMPH SPRINT 1050 ST ABS 126 CV, 93 KW 3CIL. 215NA BASTIDORES: SMTTF6915J - 440389-SMTTF6915J - 2010
TRIUMPH SPRINT 1050 ST ABS 126 CV, 93 KW 3CIL. 215NA BASTIDORES: SMTTF6915J --SMTTF6915J - 2006-2008
TRIUMPH SPRINT 1050 ST ABS 126 CV, 93 KW 3CIL. 215NA BASTIDORES: SMTTF6915J --SMTTF6915J - 440388 2009
TRIUMPH SPRINT 1050 ST ABS 98 CV, 72 KW 3CIL. 215NA BASTIDORES: SMTTF6915J - 440389-SMTTF6915J - 2010
TRIUMPH SPRINT 1050 ST ABS 98 CV, 72 KW 3CIL. 215NA BASTIDORES: SMTTF6915J --SMTTF6915J - 2006-2008
TRIUMPH SPRINT 1050 ST ABS 98 CV, 72 KW 3CIL. 215NA BASTIDORES: SMTTF6915J --SMTTF6915J - 440388 2009
ZERO SR/F ABS 110 CV, 82 KW 0CIL. - BASTIDORES: --- 2020-2021
ZERO SR/F PREMIUM ABS 110 CV, 82 KW 0CIL. - BASTIDORES: --- 2020
ZERO SR/S ABS 110 CV, 82 KW 0CIL. - BASTIDORES: --- 2021
760.17.68
10 Items
Data sheet
- EXTERNAL DIAMETER
- 320MM
- CIRCLE MEASUREMENT
- 100 MM
- HOLE DIAMETER
- 10.5MM
- INSIDE DIAMETER
- 100 MM
- VERSION
- FLOATING
- QUANTITY OF HOLES
- 5
- STUFFED
- 14.5MM
- THICKNESS
- 4.5 MM
