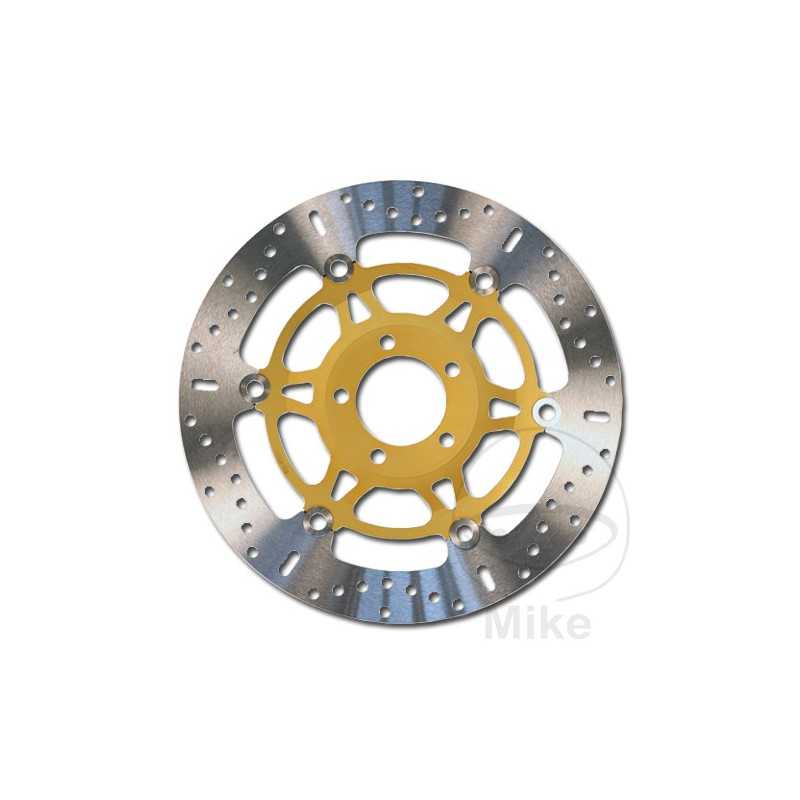

EBC Brake disc stainless steel X / XC 760.17.01

EBC X / XC series: fully floating brake discs for the front wheel

These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.

The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.

The new rotors are equipped with EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.

Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system prevents this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.

What is the SD system? It is the new square riveting system from EBC. This system completely prevents distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 299MM
INSIDE DIAMETER: 61.2MM
CIRCLE SIZE: 81.2 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
thickness: 4mm
FILLING: 12MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KAWASAKI ZZR 600 E 100/50/27 CV, 74/37/20 KW 4CIL. ZX600E 1 BASTIDORES: ZX600E henceforth00001-ZX600E henceforth20000 1993
KAWASAKI ZZR 600 E 100/50/34 CV, 74/37/25 KW 4CIL. ZX600E 2 BASTIDORES: ZX600E henceforth20001-ZX600E henceforth32000 1994
KAWASAKI ZZR 600 E 100/98/50/34 CV, 74/72/37/25 KW 4CIL. ZX600E 3 BASTIDORES: ZX600E henceforth32001-ZX600E henceforth38000 1995
KAWASAKI ZZR 600 E 34 CV, 25 KW 4CIL. ZX600EEA 11 BASTIDORES: ZX600EEA henceforth76001-ZX600EEA henceforth79000 2003
KAWASAKI ZZR 600 E 34 CV, 25 KW 4CIL. ZX600EEA 12H BASTIDORES: ZX600EEA henceforth79001-ZX600EEA henceforth81000 2004
KAWASAKI ZZR 600 E 34 CV, 25 KW 4CIL. ZX600EEA 13H BASTIDORES: ZX600EEA henceforth81001-ZX600EEA henceforth83000 2005
KAWASAKI ZZR 600 E 34 CV, 25 KW 4CIL. ZX600EEA 6F BASTIDORES: ZX600EEA henceforth83001-ZX600EEA-999999 2006
KAWASAKI ZZR 600 E 98 CV, 72 KW 4CIL. ZX600EEA 11 BASTIDORES: ZX600EEA henceforth76001-ZX600EEA henceforth79000 2003
KAWASAKI ZZR 600 E 98 CV, 72 KW 4CIL. ZX600EEA 12H BASTIDORES: ZX600EEA henceforth79001-ZX600EEA henceforth81000 2004
KAWASAKI ZZR 600 E 98 CV, 72 KW 4CIL. ZX600EEA 13H BASTIDORES: ZX600EEA henceforth81001-ZX600EEA henceforth83000 2005
KAWASAKI ZZR 600 E 98 CV, 72 KW 4CIL. ZX600EEA 6F BASTIDORES: ZX600EEA henceforth83001-ZX600EEA-999999 2006
KAWASAKI ZZR 600 E 98/50/34 CV, 72/37/25 KW 4CIL. ZX600E 4 BASTIDORES: ZX600E henceforth38001-ZX600E henceforth45000 1996
KAWASAKI ZZR 600 E 98/50/34 CV, 72/37/25 KW 4CIL. ZX600E 5 BASTIDORES: ZX600E henceforth45001-ZX600E henceforth50000 1997
KAWASAKI ZZR 600 E 98/50/34 CV, 72/37/25 KW 4CIL. ZX600E 6 BASTIDORES: ZX600E henceforth50001-ZX600E henceforth57000 1998
KAWASAKI ZZR 600 E 98/50/34 CV, 72/37/25 KW 4CIL. ZX600EEA 10 BASTIDORES: ZX600EEA henceforth72001-ZX600EEA henceforth76000 2002
KAWASAKI ZZR 600 E 98/50/34 CV, 72/37/25 KW 4CIL. ZX600EEA 7 BASTIDORES: ZX600EEA henceforth57001-ZX600EEA henceforth68000 1999-2000
KAWASAKI ZZR 600 E 98/50/34 CV, 72/37/25 KW 4CIL. ZX600EEA 9 BASTIDORES: ZX600EEA henceforth68001-ZX600EEA henceforth72000 2001
