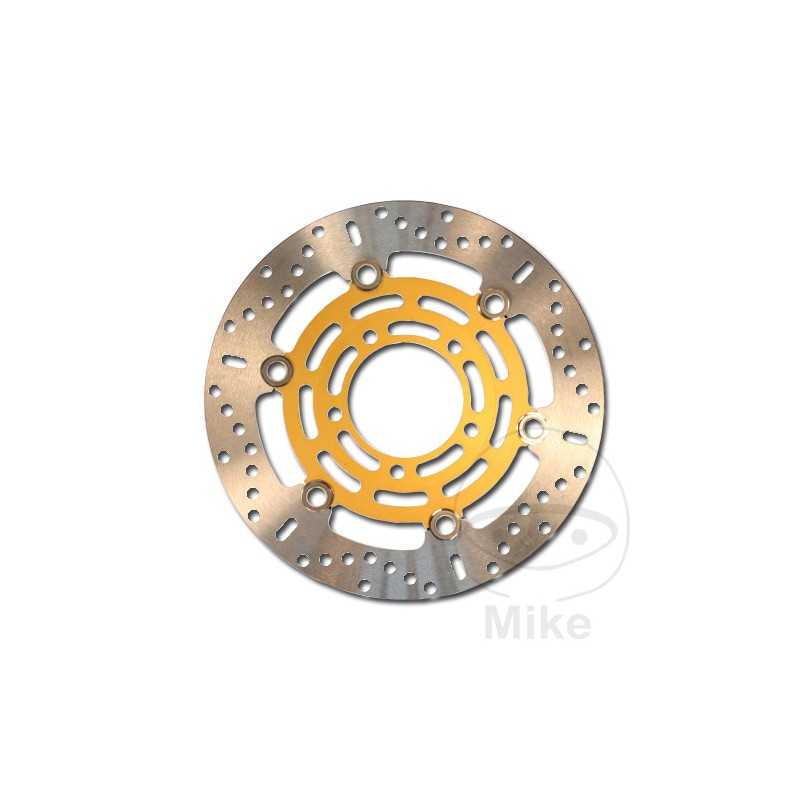

EBC Brake disc stainless steel X / XC 760.16.93
€200.34
Tax included
EBC X / XC series: fully floating brake discs for the front wheel
These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.
The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.
The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.
The new rotors are equipped with EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.
Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system prevents this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.
What is the SD system? It is the new square riveting system from EBC. This system completely prevents distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTER DIAMETER: 280MM
INSIDE DIAMETER: 80.4MM
CIRCLE SIZE: 100 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
THICKNESS: 6MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KAWASAKI ZX-6R 636 B NINJA 118 CV, 87 KW 4CIL. ZX636BBA 1H BASTIDORES: ZX636BBA henceforth00001-ZX636BBA henceforth23000 2003
KAWASAKI ZX-6R 636 B NINJA 118 CV, 87 KW 4CIL. ZX636BBA 2H BASTIDORES: ZX636BBA henceforth23001-ZX636BBA-999999 2004
KAWASAKI ZX-6R 636 B NINJA 34 CV, 25 KW 4CIL. ZX636BBA 1H BASTIDORES: ZX636BBA henceforth00001-ZX636BBA henceforth23000 2003
KAWASAKI ZX-6R 636 B NINJA 34 CV, 25 KW 4CIL. ZX636BBA 2H BASTIDORES: ZX636BBA henceforth23001-ZX636BBA-999999 2004
KAWASAKI ZX-6R 636 B NINJA 98 CV, 72 KW 4CIL. ZX636BBA 1H BASTIDORES: ZX636BBA henceforth00001-ZX636BBA henceforth23000 2003
KAWASAKI ZX-6R 636 B NINJA 98 CV, 72 KW 4CIL. ZX636BBA 2H BASTIDORES: ZX636BBA henceforth23001-ZX636BBA-999999 2004
KAWASAKI ZX-6RR 600 K NINJA 113 CV, 83 KW 4CIL. ZX600KKA 1H BASTIDORES: ZX600KKA henceforth00001-ZX600KKA-999999 2003
KAWASAKI ZX-6RR 600 M NINJA 117 CV, 86 KW 4CIL. ZX600KMA 1H BASTIDORES: ZX600KMA henceforth07001-ZX600KMA-999999 2004
These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.
The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.
The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.
The new rotors are equipped with EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.
Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system prevents this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.
What is the SD system? It is the new square riveting system from EBC. This system completely prevents distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTER DIAMETER: 280MM
INSIDE DIAMETER: 80.4MM
CIRCLE SIZE: 100 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
THICKNESS: 6MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KAWASAKI ZX-6R 636 B NINJA 118 CV, 87 KW 4CIL. ZX636BBA 1H BASTIDORES: ZX636BBA henceforth00001-ZX636BBA henceforth23000 2003
KAWASAKI ZX-6R 636 B NINJA 118 CV, 87 KW 4CIL. ZX636BBA 2H BASTIDORES: ZX636BBA henceforth23001-ZX636BBA-999999 2004
KAWASAKI ZX-6R 636 B NINJA 34 CV, 25 KW 4CIL. ZX636BBA 1H BASTIDORES: ZX636BBA henceforth00001-ZX636BBA henceforth23000 2003
KAWASAKI ZX-6R 636 B NINJA 34 CV, 25 KW 4CIL. ZX636BBA 2H BASTIDORES: ZX636BBA henceforth23001-ZX636BBA-999999 2004
KAWASAKI ZX-6R 636 B NINJA 98 CV, 72 KW 4CIL. ZX636BBA 1H BASTIDORES: ZX636BBA henceforth00001-ZX636BBA henceforth23000 2003
KAWASAKI ZX-6R 636 B NINJA 98 CV, 72 KW 4CIL. ZX636BBA 2H BASTIDORES: ZX636BBA henceforth23001-ZX636BBA-999999 2004
KAWASAKI ZX-6RR 600 K NINJA 113 CV, 83 KW 4CIL. ZX600KKA 1H BASTIDORES: ZX600KKA henceforth00001-ZX600KKA-999999 2003
KAWASAKI ZX-6RR 600 M NINJA 117 CV, 86 KW 4CIL. ZX600KMA 1H BASTIDORES: ZX600KMA henceforth07001-ZX600KMA-999999 2004
760.16.93
10 Items
Data sheet
- QUANTITY OF HOLES
- 5
- EXTERNAL DIAMETER
- 280 MM
- CIRCLE MEASUREMENT
- 100 MM
- HOLE DIAMETER
- 10.5MM
- INSIDE DIAMETER
- 100 MM
- VERSION
- FLOATING
- THICKNESS
- 6MM
