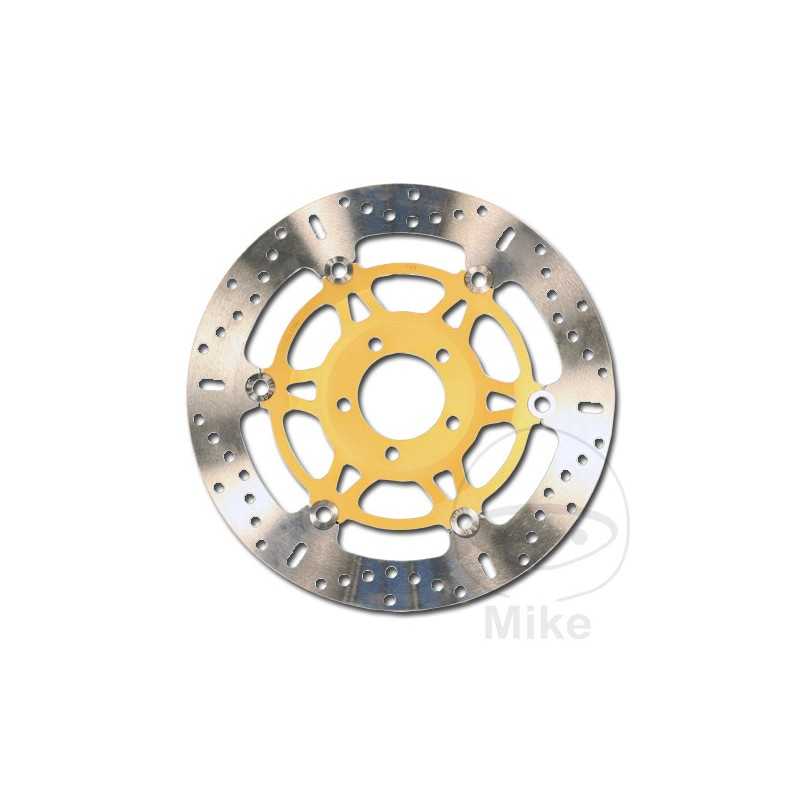

EBC Brake disc stainless steel X / XC 760.16.85
€200.34
€211.62
Save €11.28Tax included
EBC X / XC series: fully floating brake discs for the front wheel
These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.
The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.
The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.
The new rotors are equipped with EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.
Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system prevents this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.
What is the SD system? It is the new square riveting system from EBC. This system completely prevents distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 299MM
INSIDE DIAMETER: 61.2MM
CIRCLE SIZE: 81.2 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
THICKNESS: 4.5MM
FILLING: 13MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KAWASAKI Z 750 J 110 CV, 81 KW 4CIL. ZR750JJA 1H BASTIDORES: ZR750JJA henceforth00001-ZR750JJA henceforth25000 2004
KAWASAKI Z 750 J 110 CV, 81 KW 4CIL. ZR750JJA 2H BASTIDORES: ZR750JJA henceforth25001-ZR750JJA henceforth57000 2005
KAWASAKI Z 750 J 110 CV, 81 KW 4CIL. ZR750JJA 6F BASTIDORES: ZR750JJA henceforth57001-ZR750JJA-999999 2006
KAWASAKI Z 750 J 34 CV, 25 KW 4CIL. ZR750JJA 1H BASTIDORES: ZR750JJA henceforth00001-ZR750JJA henceforth25000 2004
KAWASAKI Z 750 J 34 CV, 25 KW 4CIL. ZR750JJA 2H BASTIDORES: ZR750JJA henceforth25001-ZR750JJA henceforth57000 2005
KAWASAKI Z 750 J 34 CV, 25 KW 4CIL. ZR750JJA 6F BASTIDORES: ZR750JJA henceforth57001-ZR750JJA-999999 2006
KAWASAKI Z 750 J 98 CV, 72 KW 4CIL. ZR750JJA 1H BASTIDORES: ZR750JJA henceforth00001-ZR750JJA henceforth25000 2004
KAWASAKI Z 750 J 98 CV, 72 KW 4CIL. ZR750JJA 2H BASTIDORES: ZR750JJA henceforth25001-ZR750JJA henceforth57000 2005
KAWASAKI Z 750 J 98 CV, 72 KW 4CIL. ZR750JJA 6F BASTIDORES: ZR750JJA henceforth57001-ZR750JJA-999999 2006
KAWASAKI Z 750 S 110 CV, 81 KW 4CIL. ZR750JKA K1H BASTIDORES: ZR750JKA henceforth25001-ZR750JKA henceforth57000 2005
KAWASAKI Z 750 S 110 CV, 81 KW 4CIL. ZR750JKA K6F BASTIDORES: ZR750JKA henceforth57001-ZR750JKA-999999 2006
KAWASAKI Z 750 S 34 CV, 25 KW 4CIL. ZR750JKA K1H BASTIDORES: ZR750JKA henceforth25001-ZR750JKA henceforth57000 2005
KAWASAKI Z 750 S 34 CV, 25 KW 4CIL. ZR750JKA K6F BASTIDORES: ZR750JKA henceforth57001-ZR750JKA-999999 2006
KAWASAKI Z 750 S 98 CV, 72 KW 4CIL. ZR750JKA K1H BASTIDORES: ZR750JKA henceforth25001-ZR750JKA henceforth57000 2005
KAWASAKI Z 750 S 98 CV, 72 KW 4CIL. ZR750JKA K6F BASTIDORES: ZR750JKA henceforth57001-ZR750JKA-999999 2006
KAWASAKI ZR-7 750 F 34 CV, 25 KW 4CIL. ZR750FFA 1 BASTIDORES: ZR750FFA henceforth00001-ZR750FFA henceforth50000 1999-2000
KAWASAKI ZR-7 750 F 34 CV, 25 KW 4CIL. ZR750FFA 3 BASTIDORES: ZR750FFA henceforth50001-ZR750FFA-100000 2001-2002
KAWASAKI ZR-7 750 F 34 CV, 25 KW 4CIL. ZR750FFA 5 BASTIDORES: ZR750FFA-100001-ZR750FFA-999999 2003-2004
KAWASAKI ZR-7 750 F 76 CV, 56 KW 4CIL. ZR750FFA 1 BASTIDORES: ZR750FFA henceforth00001-ZR750FFA henceforth50000 1999-2000
KAWASAKI ZR-7 750 F 76 CV, 56 KW 4CIL. ZR750FFA 3 BASTIDORES: ZR750FFA henceforth50001-ZR750FFA-100000 2001-2002
KAWASAKI ZR-7 750 F 76 CV, 56 KW 4CIL. ZR750FFA 5 BASTIDORES: ZR750FFA-100001-ZR750FFA-999999 2003-2004
KAWASAKI ZR-7 750 S 34 CV, 25 KW 4CIL. ZR750FHA H1 BASTIDORES: ZR750FHA henceforth50001-ZR750FHA-100000 2001-2002
KAWASAKI ZR-7 750 S 34 CV, 25 KW 4CIL. ZR750FHA H3 BASTIDORES: ZR750FHA-100001-ZR750FHA-999999 2003-2004
KAWASAKI ZR-7 750 S 76 CV, 56 KW 4CIL. ZR750FHA H1 BASTIDORES: ZR750FHA henceforth50001-ZR750FHA-100000 2001-2002
KAWASAKI ZR-7 750 S 76 CV, 56 KW 4CIL. ZR750FHA H3 BASTIDORES: ZR750FHA-100001-ZR750FHA-999999 2003-2004
KAWASAKI ZZR 600 D 100/50/27 CV, 74/37/20 KW 4CIL. ZX600D 1 BASTIDORES: ZX600D henceforth00001-ZX600D henceforth14000 1990
KAWASAKI ZZR 600 D 100/50/27 CV, 74/37/20 KW 4CIL. ZX600D 2 BASTIDORES: ZX600D henceforth14001-ZX600D henceforth28000 1991
KAWASAKI ZZR 600 D 100/50/27 CV, 74/37/20 KW 4CIL. ZX600D 2A BASTIDORES: ZX600D-600001-ZX600D-602500 1991
KAWASAKI ZZR 600 D 100/50/27 CV, 74/37/20 KW 4CIL. ZX600D 3 BASTIDORES: ZX600D-602501-- 1992
These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.
The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.
The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.
The new rotors are equipped with EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.
Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system prevents this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.
What is the SD system? It is the new square riveting system from EBC. This system completely prevents distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 299MM
INSIDE DIAMETER: 61.2MM
CIRCLE SIZE: 81.2 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
THICKNESS: 4.5MM
FILLING: 13MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KAWASAKI Z 750 J 110 CV, 81 KW 4CIL. ZR750JJA 1H BASTIDORES: ZR750JJA henceforth00001-ZR750JJA henceforth25000 2004
KAWASAKI Z 750 J 110 CV, 81 KW 4CIL. ZR750JJA 2H BASTIDORES: ZR750JJA henceforth25001-ZR750JJA henceforth57000 2005
KAWASAKI Z 750 J 110 CV, 81 KW 4CIL. ZR750JJA 6F BASTIDORES: ZR750JJA henceforth57001-ZR750JJA-999999 2006
KAWASAKI Z 750 J 34 CV, 25 KW 4CIL. ZR750JJA 1H BASTIDORES: ZR750JJA henceforth00001-ZR750JJA henceforth25000 2004
KAWASAKI Z 750 J 34 CV, 25 KW 4CIL. ZR750JJA 2H BASTIDORES: ZR750JJA henceforth25001-ZR750JJA henceforth57000 2005
KAWASAKI Z 750 J 34 CV, 25 KW 4CIL. ZR750JJA 6F BASTIDORES: ZR750JJA henceforth57001-ZR750JJA-999999 2006
KAWASAKI Z 750 J 98 CV, 72 KW 4CIL. ZR750JJA 1H BASTIDORES: ZR750JJA henceforth00001-ZR750JJA henceforth25000 2004
KAWASAKI Z 750 J 98 CV, 72 KW 4CIL. ZR750JJA 2H BASTIDORES: ZR750JJA henceforth25001-ZR750JJA henceforth57000 2005
KAWASAKI Z 750 J 98 CV, 72 KW 4CIL. ZR750JJA 6F BASTIDORES: ZR750JJA henceforth57001-ZR750JJA-999999 2006
KAWASAKI Z 750 S 110 CV, 81 KW 4CIL. ZR750JKA K1H BASTIDORES: ZR750JKA henceforth25001-ZR750JKA henceforth57000 2005
KAWASAKI Z 750 S 110 CV, 81 KW 4CIL. ZR750JKA K6F BASTIDORES: ZR750JKA henceforth57001-ZR750JKA-999999 2006
KAWASAKI Z 750 S 34 CV, 25 KW 4CIL. ZR750JKA K1H BASTIDORES: ZR750JKA henceforth25001-ZR750JKA henceforth57000 2005
KAWASAKI Z 750 S 34 CV, 25 KW 4CIL. ZR750JKA K6F BASTIDORES: ZR750JKA henceforth57001-ZR750JKA-999999 2006
KAWASAKI Z 750 S 98 CV, 72 KW 4CIL. ZR750JKA K1H BASTIDORES: ZR750JKA henceforth25001-ZR750JKA henceforth57000 2005
KAWASAKI Z 750 S 98 CV, 72 KW 4CIL. ZR750JKA K6F BASTIDORES: ZR750JKA henceforth57001-ZR750JKA-999999 2006
KAWASAKI ZR-7 750 F 34 CV, 25 KW 4CIL. ZR750FFA 1 BASTIDORES: ZR750FFA henceforth00001-ZR750FFA henceforth50000 1999-2000
KAWASAKI ZR-7 750 F 34 CV, 25 KW 4CIL. ZR750FFA 3 BASTIDORES: ZR750FFA henceforth50001-ZR750FFA-100000 2001-2002
KAWASAKI ZR-7 750 F 34 CV, 25 KW 4CIL. ZR750FFA 5 BASTIDORES: ZR750FFA-100001-ZR750FFA-999999 2003-2004
KAWASAKI ZR-7 750 F 76 CV, 56 KW 4CIL. ZR750FFA 1 BASTIDORES: ZR750FFA henceforth00001-ZR750FFA henceforth50000 1999-2000
KAWASAKI ZR-7 750 F 76 CV, 56 KW 4CIL. ZR750FFA 3 BASTIDORES: ZR750FFA henceforth50001-ZR750FFA-100000 2001-2002
KAWASAKI ZR-7 750 F 76 CV, 56 KW 4CIL. ZR750FFA 5 BASTIDORES: ZR750FFA-100001-ZR750FFA-999999 2003-2004
KAWASAKI ZR-7 750 S 34 CV, 25 KW 4CIL. ZR750FHA H1 BASTIDORES: ZR750FHA henceforth50001-ZR750FHA-100000 2001-2002
KAWASAKI ZR-7 750 S 34 CV, 25 KW 4CIL. ZR750FHA H3 BASTIDORES: ZR750FHA-100001-ZR750FHA-999999 2003-2004
KAWASAKI ZR-7 750 S 76 CV, 56 KW 4CIL. ZR750FHA H1 BASTIDORES: ZR750FHA henceforth50001-ZR750FHA-100000 2001-2002
KAWASAKI ZR-7 750 S 76 CV, 56 KW 4CIL. ZR750FHA H3 BASTIDORES: ZR750FHA-100001-ZR750FHA-999999 2003-2004
KAWASAKI ZZR 600 D 100/50/27 CV, 74/37/20 KW 4CIL. ZX600D 1 BASTIDORES: ZX600D henceforth00001-ZX600D henceforth14000 1990
KAWASAKI ZZR 600 D 100/50/27 CV, 74/37/20 KW 4CIL. ZX600D 2 BASTIDORES: ZX600D henceforth14001-ZX600D henceforth28000 1991
KAWASAKI ZZR 600 D 100/50/27 CV, 74/37/20 KW 4CIL. ZX600D 2A BASTIDORES: ZX600D-600001-ZX600D-602500 1991
KAWASAKI ZZR 600 D 100/50/27 CV, 74/37/20 KW 4CIL. ZX600D 3 BASTIDORES: ZX600D-602501-- 1992
760.16.85
10 Items
Data sheet
- VERSION
- FLOATING
- QUANTITY OF HOLES
- 5
- STUFFED
- 13 MM
- EXTERNAL DIAMETER
- 299 MM
- CIRCLE MEASUREMENT
- 81.2MM
- HOLE DIAMETER
- 10.5MM
- INSIDE DIAMETER
- 81.2MM
- THICKNESS
- 4.5 MM
