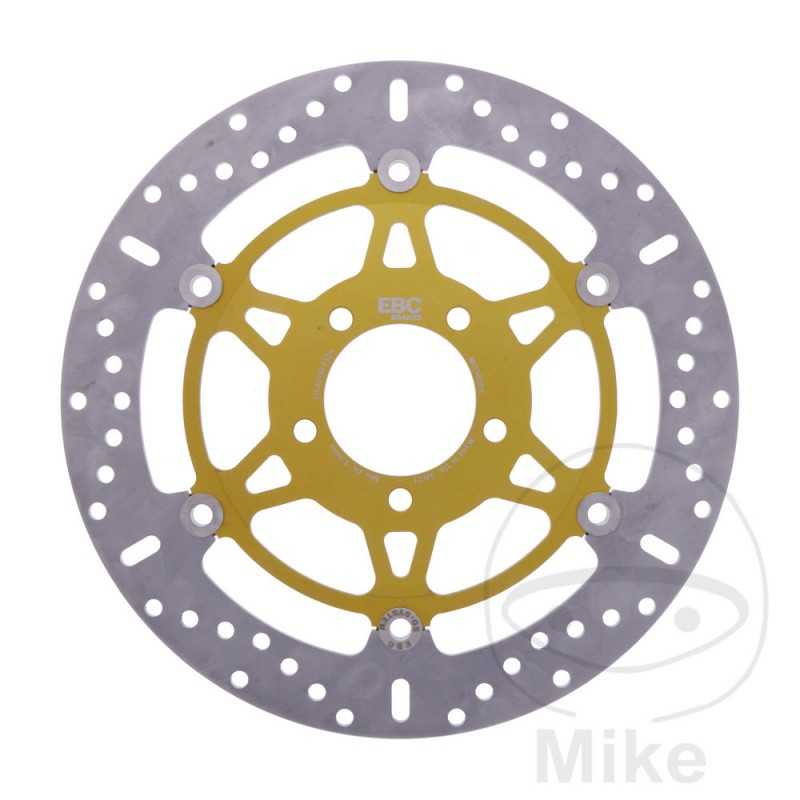

EBC Brake disc stainless steel X / XC 760.14.20

EBC X / XC series: fully floating brake discs for the front wheel

These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.

The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.

The new rotors are equipped with EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.

Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system prevents this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.

What is the SD system? It is the new square riveting system from EBC. This system completely prevents distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 310MM
INSIDE DIAMETER: 69.2MM
CIRCLE SIZE: 91 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KAWASAKI KLV 1000 A 98 CV, 72 KW 2CIL. WVBS 1H BASTIDORES: BS112200-100001-- 2004
KAWASAKI KLV 1000 A 98 CV, 72 KW 2CIL. WVBS 2H BASTIDORES: BS112200-100100-- 2005-2006
SUZUKI DL 1000 V-STROM 98 CV, 72 KW 2CIL. WVBS1111 K2 BASTIDORES: BS1111 henceforth0100001-BS1111 henceforth0108869 2002
SUZUKI DL 1000 V-STROM 98 CV, 72 KW 2CIL. WVBS1111 K3 BASTIDORES: BS1111 henceforth0108870-BS1111 henceforth0112372 2003
SUZUKI DL 1000 V-STROM 98 CV, 72 KW 2CIL. WVBS1111 K4 BASTIDORES: BS1111 henceforth0112373-BS1111 henceforth0115451 2004
SUZUKI DL 1000 V-STROM 98 CV, 72 KW 2CIL. WVBS1111 K5 BASTIDORES: BS1111 henceforth0115452-BS1111 henceforth0118459 2005
SUZUKI DL 1000 V-STROM 98 CV, 72 KW 2CIL. WVBS1111 K6 BASTIDORES: BS1111 henceforth0118460-BS1111 henceforth0121304 2006
SUZUKI DL 1000 V-STROM 98 CV, 72 KW 2CIL. WVBS1111 K7 BASTIDORES: BS1111 henceforth0121305-BS1111 henceforth0121305 2007
SUZUKI DL 1000 V-STROM 98 CV, 72 KW 2CIL. WVBS1111 K8 BASTIDORES: BS1111 henceforth0123038-BS1111 henceforth0123954 2008
SUZUKI DL 1000 V-STROM 98 CV, 72 KW 2CIL. WVBS1111 K9 BASTIDORES: BS1111 henceforth0123955-BS1111 henceforth0124193 2009
SUZUKI DL 1000 V-STROM 98 CV, 72 KW 2CIL. WVBS1111 L0 BASTIDORES: BS1111 henceforth0124194-- 2010
SUZUKI DL 650 U3 V-STROM 34 CV, 25 KW 2CIL. WVB12111 K4 BASTIDORES: B12111 henceforth0100001-B12111 henceforth0101112 2004
SUZUKI DL 650 U3 V-STROM 34 CV, 25 KW 2CIL. WVB12111 K5 BASTIDORES: B12111 henceforth0101113-B12111 henceforth0103152 2005
SUZUKI DL 650 U3 V-STROM 34 CV, 25 KW 2CIL. WVB12111 K6 BASTIDORES: B12111 henceforth0103153-B12111 henceforth0104194 2006
SUZUKI DL 650 V-STROM 67 CV, 49 KW 2CIL. WVB11111 K4 BASTIDORES: B11111 henceforth0100001-B11111 henceforth0111056 2004
SUZUKI DL 650 V-STROM 67 CV, 49 KW 2CIL. WVB11111 K5 BASTIDORES: B11111 henceforth0111057-B11111 henceforth0122610 2005
SUZUKI DL 650 V-STROM 67 CV, 49 KW 2CIL. WVB11111 K6 BASTIDORES: B11111 henceforth0122611-B11111 henceforth0129413 2006
SUZUKI SV 1000 120 CV, 88 KW 2CIL. WVBX1111 K3 BASTIDORES: BX1111 henceforth0100001-BX1111 henceforth0101467 2003
SUZUKI SV 1000 120 CV, 88 KW 2CIL. WVBX1111 K4 BASTIDORES: BX1111 henceforth0101468-- 2004
SUZUKI SV 1000 124 CV, 91 KW 2CIL. WVBX4311 K5 BASTIDORES: BX4311 henceforth0100001-BX4311 henceforth0100231 2005
SUZUKI SV 1000 S 120 CV, 88 KW 2CIL. WVBX1321 K3 BASTIDORES: BX1321 henceforth0100001-BX1321 henceforth0106109 2003
SUZUKI SV 1000 S 120 CV, 88 KW 2CIL. WVBX1321 K4 BASTIDORES: BX1321 henceforth0106110-- 2004
SUZUKI SV 1000 S 124 CV, 91 KW 2CIL. WVBX4121 K5 BASTIDORES: BX4121 henceforth0100001-BX4121 henceforth0100324 2005
SUZUKI SV 1000 S2 98 CV, 72 KW 2CIL. WVBX3221 K3 BASTIDORES: BX3221 henceforth0100001-BX3221 henceforth0102662 2003
SUZUKI SV 1000 S2 98 CV, 72 KW 2CIL. WVBX3221 K4 BASTIDORES: BX3221 henceforth0102663-- 2004
SUZUKI SV 1000 S2 98 CV, 72 KW 2CIL. WVBX6121 K5 BASTIDORES: BX6121 henceforth0100001-BX6121 henceforth0100095 2005
SUZUKI SV 1000 SZ 124 CV, 91 KW 2CIL. WVBX4121 K5 BASTIDORES: BX4121 henceforth0100140-- 2005
SUZUKI SV 1000 SZ2 98 CV, 72 KW 2CIL. WVBX6121 K5 BASTIDORES: BX6121 henceforth0100001-- 2005
SUZUKI SV 1000 U2 98 CV, 72 KW 2CIL. WVBX3111 K3 BASTIDORES: BX3111 henceforth0100001-BX3111 henceforth0101743 2003
SUZUKI SV 1000 U2 98 CV, 72 KW 2CIL. WVBX3111 K4 BASTIDORES: BX3111 henceforth0101744-- 2004
SUZUKI SV 1000 U2 98 CV, 72 KW 2CIL. WVBX5211 K5 BASTIDORES: BX5211 henceforth0100001-- 2005
