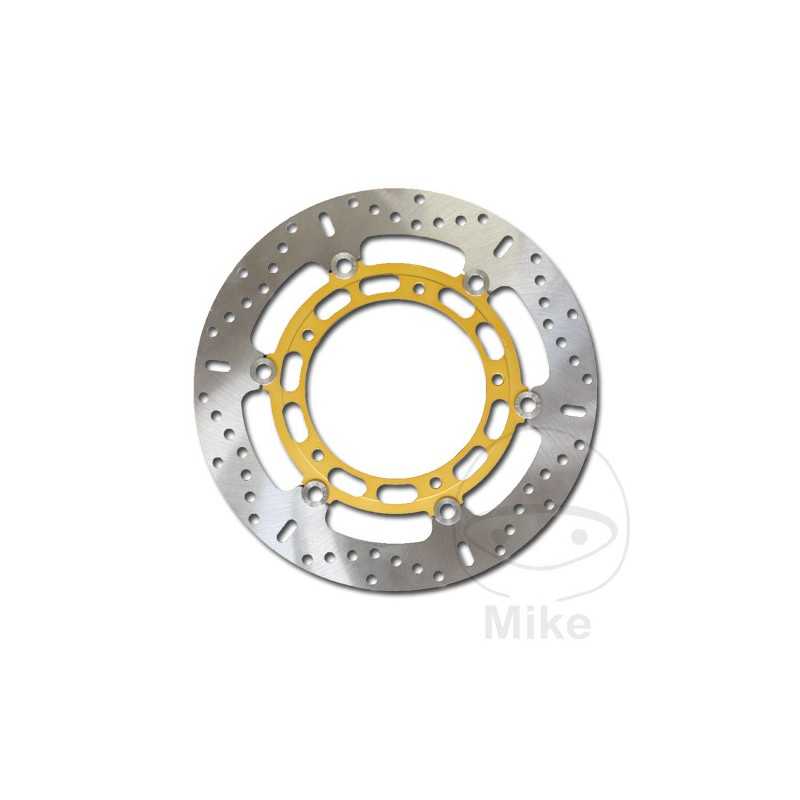

EBC X / XC series: fully floating brake discs for the front wheel These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides. The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased. The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs. The new rotors are equipped with EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint. Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system prevents this problem, which causes 100% of brake disc defects caused by disc distortion and vibration. What is the SD system? It is the new square riveting system from EBC. This system completely prevents distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect. OUTER DIAMETER: 298MM INSIDE DIAMETER: 132.2MM CIRCLE SIZE: 150 MM HOLES QUANTITY: 5 HOLE DIAMETER: 8.5 MM thickness: 5mm VERSION: FLOATING APPLICATIONS OF THIS PRODUCT: According to the data provided by the manufacturer, this article is compatible with the following brands, models and years: Yamaha FZ6 600 N 78 CV, 57 kw 4cil. RJ145 1B3D Bastidores: RJ145 henceforth00301-- 2007 Yamaha FZ6 600 N 98 CV, 72 kw 4cil. RJ074 1B31 Bastidores: RJ074 henceforth00301-- 2004 Yamaha FZ6 600 N 98 CV, 72 kw 4cil. RJ074 1B33 Bastidores: RJ074 henceforth17490-- 2005 Yamaha FZ6 600 N 98 CV, 72 kw 4cil. RJ074 1B37 Bastidores: RJ074 henceforth33829-- 2006 Yamaha FZ6 600 N 98 CV, 72 kw 4cil. RJ074 1B3B Bastidores: RJ074 henceforth33649-- 2006 Yamaha FZ6 600 NA ABS 78 CV, 57 kw 4cil. RJ14B 5S31 Bastidores: RJ14B henceforth00301-- 2007-2008 Yamaha FZ6 600 NS 98 CV, 72 kw 4cil. RJ074 1B35 Bastidores: RJ074 henceforth17345-- 2005 Yamaha FZ6 600 NS 98 CV, 72 kw 4cil. RJ074 1B39 Bastidores: RJ074 henceforth33749-- 2006 Yamaha FZ6 600 S Fazer 78 CV, 57 kw 4cil. RJ141 5VXL Bastidores: RJ141 henceforth00301-- 2007-2008 Yamaha FZ6 600 S Fazer 98 CV, 72 kw 4cil. RJ071 5VX1 Bastidores: RJ071 henceforth00301-- 2004 Yamaha FZ6 600 S Fazer 98 CV, 72 kw 4cil. RJ071 5VX6 Bastidores: RJ071 henceforth23824-- 2005 Yamaha FZ6 600 S Fazer 98 CV, 72 kw 4cil. RJ071 5VXB Bastidores: RJ071 henceforth47010-- 2006 Yamaha FZ6 600 SA Fazer ABS 78 CV, 57 kw 4cil. RJ148 4P53 Bastidores: RJ148 henceforth00301-- 2007-2008 Yamaha FZ6 600 SA Fazer ABS 98 CV, 72 kw 4cil. RJ076 4P51 Bastidores: RJ076 henceforth00301-- 2006 Yamaha FZ6 600 SA Fazer ABS 98 CV, 72 kw 4cil. RJ076 4P52 Bastidores: RJ076 henceforth00321-- 2006 Yamaha FZ6 S2 600 NAHG ABS 98 CV, 72 kw 4cil. RJ14D 5S41 Bastidores: RJ14D henceforth00301-- 2007 Yamaha FZ6 S2 600 NAHG ABS 98 CV, 72 kw 4cil. RJ14D 5S42 Bastidores: RJ14D henceforth00771-- 2008 Yamaha FZ6 S2 600 NAHG ABS 98 CV, 72 kw 4cil. RJ14D 5S43 Bastidores: RJ14D henceforth01637-- 2009-2010 Yamaha FZ6 S2 600 NAHG ABS 98 CV, 72 kw 4cil. RJ14D 5S44 Bastidores: RJ14D henceforth02084-- 2009-2010 Yamaha FZ6 S2 600 NHG 98 CV, 72 kw 4cil. RJ146 5S51 Bastidores: RJ146 henceforth01535-- 2007 Yamaha FZ6 S2 600 NHG 98 CV, 72 kw 4cil. RJ146 5S53 Bastidores: RJ146 henceforth09785-- 2008 Yamaha FZ6 S2 600 NHG 98 CV, 72 kw 4cil. RJ146 5S55 Bastidores: RJ146 henceforth21397-- 2009-2010 Yamaha FZ6 S2 600 NHG 98 CV, 72 kw 4cil. RJ146 5S57 Bastidores: RJ146 henceforth22624-- 2009-2010 Yamaha FZ6 S2 600 SAHG Fazer ABS 98 CV, 72 kw 4cil. RJ149 5S21 Bastidores: RJ149 henceforth01041-- 2007 Yamaha FZ6 S2 600 SAHG Fazer ABS 98 CV, 72 kw 4cil. RJ149 5S22 Bastidores: RJ149 henceforth03681-- 2008 Yamaha FZ6 S2 600 SAHG Fazer ABS 98 CV, 72 kw 4cil. RJ149 5S23 Bastidores: RJ149 henceforth07842-- 2009-2010 Yamaha FZ6 S2 600 SHG Fazer 98 CV, 72 kw 4cil. RJ142 4S81 Bastidores: RJ142 henceforth00301-- 2007 Yamaha FZ6 S2 600 SHG Fazer 98 CV, 72 kw 4cil. RJ142 4S86 Bastidores: RJ142 henceforth09416-- 2008 Yamaha FZ6 S2 600 SHG Fazer 98 CV, 72 kw 4cil. RJ142 4S8B Bastidores: RJ142 henceforth17397-- 2009 Yamaha MT03 660 H 45 CV, 33 kw 1cil. RM021 5YK1 Bastidores: RM021 henceforth00051-- 2006 Yamaha MT03 660 H 45 CV, 33 kw 1cil. RM024 5YK2 Bastidores: RM024 henceforth00051-- 2007 Yamaha MT03 660 H 45 CV, 33 kw 1cil. RM024 5YK5 Bastidores: RM024 henceforth08001-- 2008 Yamaha MT03 660 H 48 CV, 35 kw 1cil. RM024 5YK7 Bastidores: RM024 henceforth25153-- 2009-2010 Yamaha MT03 660 H 48 CV, 35 kw 1cil. RM027 5YK9 Bastidores: RM027 henceforth00001-- 2011 Yamaha MT03 660 H 48 CV, 35 kw 1cil. RM051 2BF1 Bastidores: RM051 henceforth00597-- 2012-2014 Yamaha MT03 660 N 34 CV, 25 kw 1cil. RM022 5YK3 Bastidores: RM022 henceforth00301-- 2006 Yamaha MT03 660 N 34 CV, 25 kw 1cil. RM025 5YK4 Bastidores: RM025 henceforth00301-- 2007 Yamaha MT03 660 N 34 CV, 25 kw 1cil. RM025 5YK6 Bastidores: RM025 henceforth00501-- 2008 Yamaha Tracer 9 900 GT MTT890-D ABS 119 CV, 87,5 kw 3cil. RN705 BAP1 Bastidores: RN705 henceforth00301-- 2021-2022 Yamaha Tracer 9 900 MTT890 ABS 119 CV, 87,5 kw 3cil. RN701 B5U1 Bastidores: RN701 henceforth00301-- 2021-2022 Yamaha XJ6 600 F Diversion 77,5 CV, 57 kw 4cil. RJ198 1CW1 Bastidores: RJ198 henceforth00301-- 2010 Yamaha XJ6 600 F Diversion 77,5 CV, 57 kw 4cil. RJ19L 1CW8 Bastidores: RJ19L henceforth00301-- 2011-2012 Yamaha XJ6 600 F Diversion 77,5 CV, 57 kw 4cil. RJ227 1CWG Bastidores: RJ227 henceforth00301-- 2013-2014 Yamaha XJ6 600 F Diversion 77,5 CV, 57 kw 4cil. RJ227 1CWN Bastidores: RJ227 henceforth00744-- 2014 Yamaha XJ6 600 F Diversion 77,5 CV, 57 kw 4cil. RJ227 1CWV Bastidores: RJ227 henceforth00973-- 2015 Yamaha XJ6 600 F Diversion 77,5 CV, 57 kw 4cil. RJ227 1CWW Bastidores: --- 2015 Yamaha XJ6 600 FA Diversion ABS 48 CV, 35 kw 4cil. - 1DG6 Bastidores: --- 2014 Yamaha XJ6 600 FA Diversion ABS 48 CV, 35 kw 4cil. - 1DG8 Bastidores: --- 2015 Yamaha XJ6 600 FA Diversion ABS 48 CV, 35 kw 4cil. - 1DGB Bastidores: --- 2016 Yamaha XJ6 600 FA Diversion ABS 48 CV, 35 kw 4cil. - 1DGD Bastidores: --- 2016 Yamaha XJ6 600 FA Diversion ABS 48 CV, 35 kw 4cil. RJ22H 1DG4 Bastidores: RJ22H henceforth00301-- 2013 Yamaha XJ6 600 FA Diversion ABS 77,5 CV, 57 kw 4cil. RJ199 1DG1 Bastidores: RJ199 henceforth00301-- 2010 Yamaha XJ6 600 FA Diversion ABS 77,5 CV, 57 kw 4cil. RJ19M 1DG2 Bastidores: RJ19M henceforth00301-- 2011-2012 Yamaha XJ6 600 FA Diversion ABS 77,5 CV, 57 kw 4cil. RJ228 1DG3 Bastidores: RJ228 henceforth00301-- 2013 Yamaha XJ6 600 FA Diversion ABS 77,5 CV, 57 kw 4cil. RJ228 1DG5 Bastidores: RJ228 henceforth00645-- 2014 Yamaha XJ6 600 FA Diversion ABS 77,5 CV, 57 kw 4cil. RJ228 1DG7 Bastidores: RJ228 henceforth00919-- 2015 Yamaha XJ6 600 FA Diversion ABS 77,5 CV, 57 kw 4cil. RJ228 1DGA Bastidores: RJ228 henceforth01001-- 2016 Yamaha XJ6 600 FA Diversion ABS 77,5 CV, 57 kw 4cil. RJ228 1DGC Bastidores: RJ228 henceforth00996-- 2016 Yamaha XJ6 600 N 34 CV, 25 kw 4cil. - 20S2 Bastidores: --- 2009 Yamaha XJ6 600 N 48 CV, 35 kw 4cil. - B612 Bastidores: --- 2015 Yamaha XJ6 600 N 48 CV, 35 kw 4cil. RJ221 20ST Bastidores: RJ221 henceforth03914-- 2014 Yamaha XJ6 600 N 48 CV, 35 kw 4cil. RJ226 20SJ Bastidores: RJ226 henceforth00301-- 2013 Yamaha XJ6 600 N 48 CV, 35 kw 4cil. RJ226 20SV Bastidores: RJ226 henceforth00309-- 2014 Yamaha XJ6 600 N 77,5 CV, 57 kw 4cil. RJ195 20S1 Bastidores: RJ195 henceforth00301-- 2009 Yamaha XJ6 600 N 77,5 CV, 57 kw 4cil. RJ195 20S5 Bastidores: RJ195 henceforth11164-- 2010 Yamaha XJ6 600 N 77,5 CV, 57 kw 4cil. RJ195 20SA Bastidores: RJ195 henceforth11244-- 2010 Yamaha XJ6 600 N 77,5 CV, 57 kw 4cil. RJ19G 20SB Bastidores: RJ19G henceforth00301-- 2011-2012 Yamaha XJ6 600 N 77,5 CV, 57 kw 4cil. RJ221 20SF Bastidores: RJ221 henceforth00301-- 2013 Yamaha XJ6 600 N 77,5 CV, 57 kw 4cil. RJ221 20SR Bastidores: RJ221 henceforth04108-- 2014 Yamaha XJ6 600 N 77,5 CV, 57 kw 4cil. RJ221 B611 Bastidores: RJ221 henceforth04628-- 2015 Yamaha XJ6 600 N 77,5 CV, 57 kw 4cil. RJ226 20SU Bastidores: RJ226 henceforth00308-- 2014 Yamaha XJ6 600 N SP 48 CV, 35 kw 4cil. - 20SM Bastidores: --- 2013 Yamaha XJ6 600 N SP 77,5 CV, 57 kw 4cil. RJ221 20SL Bastidores: RJ221 henceforth02397-- 2013 Yamaha XJ6 600 NA ABS 48 CV, 35 kw 4cil. - 36B8 Bastidores: --- 2013 Yamaha XJ6 600 NA ABS 48 CV, 35 kw 4cil. - 36BC Bastidores: --- 2014 Yamaha XJ6 600 NA ABS 48 CV, 35 kw 4cil. RJ22F 36B6 Bastidores: RJ22F henceforth00301-- 2013 Yamaha XJ6 600 NA ABS 48 CV, 35 kw 4cil. RJ22F 36BA Bastidores: RJ22F henceforth00337-- 2014 Yamaha XJ6 600 NA ABS 48 CV, 35 kw 4cil. RJ22F 36BE Bastidores: RJ22F henceforth00363-- 2015 Yamaha XJ6 600 NA ABS 77,5 CV, 57 kw 4cil. RJ196 36B1 Bastidores: RJ196 henceforth00301-- 2009 Yamaha XJ6 600 NA ABS 77,5 CV, 57 kw 4cil. RJ196 36B2 Bastidores: RJ196 henceforth02677-- 2010 Yamaha XJ6 600 NA ABS 77,5 CV, 57 kw 4cil. RJ196 36B3 Bastidores: RJ196 henceforth02688-- 2010 Yamaha XJ6 600 NA ABS 77,5 CV, 57 kw 4cil. RJ19H 36B4 Bastidores: RJ19H henceforth00301-- 2011-2012 Yamaha XJ6 600 NA ABS 77,5 CV, 57 kw 4cil. RJ224 36B5 Bastidores: RJ224 henceforth00301-- 2013 Yamaha XJ6 600 NA ABS 77,5 CV, 57 kw 4cil. RJ224 36B7 Bastidores: RJ224 henceforth01872-- 2013 Yamaha XJ6 600 NA ABS 77,5 CV, 57 kw 4cil. RJ224 36B9 Bastidores: RJ224 henceforth03474-- 2014 Yamaha XJ6 600 NA ABS 77,5 CV, 57 kw 4cil. RJ224 36BB Bastidores: RJ224 henceforth03351-- 2014 Yamaha XJ6 600 NA ABS 77,5 CV, 57 kw 4cil. RJ224 36BD Bastidores: RJ224 henceforth04433-- 2015 Yamaha XJ6 600 S Diversion 48 CV, 35 kw 4cil. - 36CB Bastidores: --- 2013 Yamaha XJ6 600 S Diversion 48 CV, 35 kw 4cil. - 36CE Bastidores: --- 2014 Yamaha XJ6 600 S Diversion 48 CV, 35 kw 4cil. - 36CH Bastidores: --- 2015 Yamaha XJ6 600 S Diversion 77,5 CV, 57 kw 4cil. RJ191 36C1 Bastidores: RJ191 henceforth00301-- 2009 Yamaha XJ6 600 S Diversion 77,5 CV, 57 kw 4cil. RJ191 36C4 Bastidores: RJ191 henceforth05683-- 2010 Yamaha XJ6 600 S Diversion 77,5 CV, 57 kw 4cil. RJ19B 36C6 Bastidores: RJ19B henceforth00301-- 2011-2012 Yamaha XJ6 600 S Diversion 77,5 CV, 57 kw 4cil. RJ225 36C9 Bastidores: RJ225 henceforth00301-- 2013 Yamaha XJ6 600 S Diversion 77,5 CV, 57 kw 4cil. RJ225 36CC Bastidores: RJ225 henceforth00695-- 2014 Yamaha XJ6 600 S Diversion 77,5 CV, 57 kw 4cil. RJ225 36CF Bastidores: RJ225 henceforth00912-- 2015 Yamaha XJ6 600 SA Diversion ABS 48 CV, 35 kw 4cil. - 36DA Bastidores: --- 2014 Yamaha XJ6 600 SA Diversion ABS 48 CV, 35 kw 4cil. - 36DD Bastidores: --- 2015 Yamaha XJ6 600 SA Diversion ABS 48 CV, 35 kw 4cil. - 36DG Bastidores: --- 2016 Yamaha XJ6 600 SA Diversion ABS 48 CV, 35 kw 4cil. - 36DK Bastidores: --- 2016 Yamaha XJ6 600 SA Diversion ABS 48 CV, 35 kw 4cil. RJ22G 36D7 Bastidores: RJ22G henceforth00301-- 2013 Yamaha XJ6 600 SA Diversion ABS 77,5 CV, 57 kw 4cil. - 36DE Bastidores: --- 2016 Yamaha XJ6 600 SA Diversion ABS 77,5 CV, 57 kw 4cil. - 36DH Bastidores: --- 2016 Yamaha XJ6 600 SA Diversion ABS 77,5 CV, 57 kw 4cil. RJ192 36D1 Bastidores: RJ192 henceforth00301-- 2009 Yamaha XJ6 600 SA Diversion ABS 77,5 CV, 57 kw 4cil. RJ192 36D2 Bastidores: RJ192 henceforth03369-- 2010 Yamaha XJ6 600 SA Diversion ABS 77,5 CV, 57 kw 4cil. RJ19D 36D3 Bastidores: RJ19D henceforth00301-- 2011-2012 Yamaha XJ6 600 SA Diversion ABS 77,5 CV, 57 kw 4cil. RJ229 36D5 Bastidores: RJ229- 000301-- 2013 Yamaha XJ6 600 SA Diversion ABS 77,5 CV, 57 kw 4cil. RJ229 36D8 Bastidores: RJ229 henceforth00646-- 2014 Yamaha XJ6 600 SA Diversion ABS 77,5 CV, 57 kw 4cil. RJ229 36DB Bastidores: RJ229 henceforth00965-- 2015 Yamaha YZF-R6 600 106 CV, 78 kw 4cil. RJ052 5SL2 Bastidores: RJ052 henceforth00301-- 2003 Yamaha YZF-R6 600 117 CV, 86 kw 4cil. RJ051 5SL1 Bastidores: RJ051 henceforth00301-- 2003 Yamaha YZF-R6 600 117 CV, 86 kw 4cil. RJ091 5SLB Bastidores: RJ091 henceforth00301-- 2004
Reference 760.11.31
In stock 10 Items
Data sheet
EXTERNAL DIAMETER 298 MM CIRCLE MEASUREMENT 150 MM HOLE DIAMETER 8.5 MM INSIDE DIAMETER 150 MM VERSION FLOATING QUANTITY OF HOLES 5 THICKNESS 5 MM
