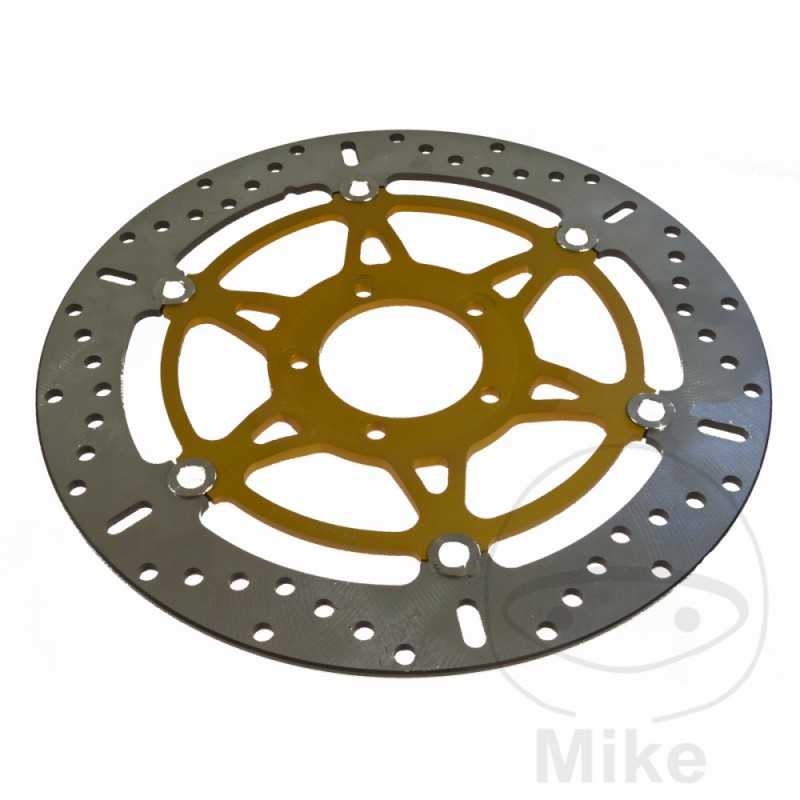

EBC X / XC series: fully floating brake discs for the front wheel These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides. The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased. The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs. The new rotors are equipped with EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint. Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system prevents this problem, which causes 100% of brake disc defects caused by disc distortion and vibration. What is the SD system? It is the new square riveting system from EBC. This system completely prevents distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect. OUTSIDE DIAMETER: 320MM INSIDE DIAMETER: 72.2MM CIRCLE SIZE: 90 MM HOLES QUANTITY: 5 HOLE DIAMETER: 8.5 MM THICKNESS: DMM FILLING: 10MM VERSION: FLOATING APPLICATIONS OF THIS PRODUCT: According to the data provided by the manufacturer, this article is compatible with the following brands, models and years: Ducati Diavel 1200 ABS 152 CV, 112 kw 2cil. G100AB/GC00AA/W1/WX/GD00FA Bastidores: --- 2018 Ducati Diavel 1200 ABS 152 CV, 112 kw 2cil. GC00AA/GD00FA Bastidores: --- 2017 Ducati Diavel 1200 ABS 162 CV, 119 kw 2cil. G100AA/AB/G101AB Bastidores: --- 2011 Ducati Diavel 1200 ABS 162 CV, 119 kw 2cil. G100AB/G101AB Bastidores: --- 2012 Ducati Diavel 1200 ABS 162 CV, 119 kw 2cil. G100AB/G101AB/G102JC Bastidores: --- 2013-2014 Ducati Diavel 1200 ABS 162 CV, 119 kw 2cil. G103AA/G104FA/G105JA Bastidores: --- 2015-2016 Ducati Diavel 1200 AMG ABS 162 CV, 119 kw 2cil. G100AB/G101AB/G102JA Bastidores: --- 2012-2013 Ducati Diavel 1200 Carbon ABS 152 CV, 112 kw 2cil. GC00AA/GD00FA Bastidores: --- 2017 Ducati Diavel 1200 Carbon ABS 152 CV, 112 kw 2cil. GC00AA/W1/W7/GD00FA Bastidores: --- 2018 Ducati Diavel 1200 Carbon ABS 162 CV, 119 kw 2cil. G100AA/AB/G101AB Bastidores: --- 2011 Ducati Diavel 1200 Carbon ABS 162 CV, 119 kw 2cil. G100AB/G101AB Bastidores: --- 2012 Ducati Diavel 1200 Carbon ABS 162 CV, 119 kw 2cil. G100AB/G101AB/G102JC Bastidores: --- 2013-2014 Ducati Diavel 1200 Carbon ABS 162 CV, 119 kw 2cil. G103AA/G104FA/G105JA Bastidores: --- 2015-2016 Ducati Diavel 1200 Cromo ABS 162 CV, 119 kw 2cil. G100AB/G101AB Bastidores: --- 2012-2013 Ducati Diavel 1200 Dark ABS 162 CV, 119 kw 2cil. G100AB/G101AB/G102JC Bastidores: --- 2013-2014 Ducati Diavel 1200 Diesel ABS 152 CV, 112 kw 2cil. GC00AA/GD00FA Bastidores: --- 2017-2018 Ducati Diavel 1200 Strada ABS 162 CV, 119 kw 2cil. G100AC/G101AC/G102JB Bastidores: --- 2014 Ducati Diavel 1200 Strada ABS 162 CV, 119 kw 2cil. G100AC/G102JB Bastidores: --- 2013 Ducati Diavel 1200 Titanium ABS 162 CV, 119 kw 2cil. G103AA/G104FA/G105JA Bastidores: --- 2015 Ducati Hypermotard 821 ABS 110 CV, 81 kw 2cil. B200AA/B201JA Bastidores: --- 2013-2015 Ducati Hypermotard 821 ABS 48 CV, 35 kw 2cil. B301AA/B300FA Bastidores: --- 2013-2015 Ducati Hypermotard 821 SP ABS 110 CV, 81 kw 2cil. B200AA/B201JA Bastidores: --- 2013-2015 Ducati Hypermotard 821 SP ABS 48 CV, 35 kw 2cil. B301AA/B300FA Bastidores: --- 2013-2015 Ducati Hypermotard 939 ABS 110 CV, 81 kw 2cil. BA00AA/BA01JA Bastidores: --- 2016-2018 Ducati Hypermotard 939 SP ABS 110 CV, 81 kw 2cil. BA00AA/BA01JA Bastidores: --- 2016-2018 Ducati Hypermotard 950 ABS 114 CV, 83 kw 2cil. 1B00AA/T7/BB00AA/3B35AA Bastidores: --- 2022 Ducati Hypermotard 950 ABS 114 CV, 83 kw 2cil. BAJDT6/BB00AA/BD35AA Bastidores: --- 2019 Ducati Hypermotard 950 ABS 114 CV, 83 kw 2cil. BB00AA/BB00W1/W3/BD35AA Bastidores: --- 2020 Ducati Hypermotard 950 ABS 114 CV, 83 kw 2cil. BB00AA/W5/BD35AA Bastidores: --- 2021 Ducati Hypermotard 950 ABS 48 CV, 35 kw 2cil. 1B00AA/T7/BB00AA/3B35AA Bastidores: --- 2022 Ducati Hypermotard 950 RVE ABS 114 CV, 83 kw 2cil. 1B00AA/BB01JA Bastidores: --- 2022 Ducati Hypermotard 950 RVE ABS 114 CV, 83 kw 2cil. 1B00AA/T0/T6/3B35AA/BB00AA Bastidores: --- 2022 Ducati Hypermotard 950 RVE ABS 114 CV, 83 kw 2cil. BB00AA/W3/W5/BD35AA Bastidores: --- 2021 Ducati Hypermotard 950 RVE ABS 48 CV, 35 kw 2cil. 1B00AA/BB01JA Bastidores: --- 2022 Ducati Hypermotard 950 RVE ABS 48 CV, 35 kw 2cil. 1B00AA/T0/T6/3B35AA/BB00AA Bastidores: --- 2022 Ducati Hypermotard 950 SP ABS 114 CV, 83 kw 2cil. BAJDTX/BB00AA/BD35AA/BB00W2/W4/W6/W9/WX Bastidores: --- 2020 Ducati Hypermotard 950 SP ABS 114 CV, 83 kw 2cil. BB00AA/BB00W1/W2/W5/W7/BD35AA/BAJDT6 Bastidores: --- 2019 Ducati Hyperstrada 821 ABS 110 CV, 81 kw 2cil. B200AA/B201JA Bastidores: --- 2013-2015 Ducati Hyperstrada 821 ABS 48 CV, 35 kw 2cil. B301AA/B300FA Bastidores: --- 2013-2015 Ducati Hyperstrada 939 ABS 113 CV, 83 kw 2cil. BA00AA/BA01JA Bastidores: --- 2016-2017 Ducati Monster 1100 95 CV, 70 kw 2cil. M502AA Bastidores: --- 2009 Ducati Monster 1100 95 CV, 70 kw 2cil. M502AA/M510AA Bastidores: --- 2010-2011 Ducati Monster 1100 ABS 95 CV, 70 kw 2cil. M505AA/M510AB Bastidores: --- 2010-2011 Ducati Monster 1100 Diesel ABS 100 CV, 73,5 kw 2cil. M511AA/JA Bastidores: --- 2013 Ducati Monster 1100 Evo ABS 100 CV, 73,5 kw 2cil. M511AA/JA Bastidores: --- 2012-2013 Ducati Monster 1100 Evo Anniversary ABS 100 CV, 73,5 kw 2cil. M511AA/JA Bastidores: --- 2013 Ducati Monster 1200 R ABS 152 CV, 112 kw 2cil. MA00AA/MA01JA Bastidores: --- 2019 Ducati Monster 1200 R ABS 152 CV, 112 kw 2cil. MA00AA/MA01JA/MB00FA Bastidores: --- 2017-2018 Ducati Monster 1200 R ABS 160 CV, 118 kw 2cil. MA00AA/MA01JA/MB00FA Bastidores: --- 2016 Ducati Monster 796 34 CV, 25 kw 2cil. M506AA/M507AA/M508AA Bastidores: --- 2011-2012 Ducati Monster 796 46 CV, 34 kw 2cil. M506AA/M507AA/M508AA Bastidores: --- 2011-2012 Ducati Monster 796 87 CV, 64 kw 2cil. M506AA/M507AA/M508AA Bastidores: --- 2011-2012 Ducati Monster 796 ABS 34 CV, 25 kw 2cil. M500AB/M503AB/M506AA/AB/M507AB/M508AB Bastidores: --- 2012 Ducati Monster 796 ABS 34 CV, 25 kw 2cil. M506AA/AB/M508AA/AB/M507AB Bastidores: --- 2011 Ducati Monster 796 ABS 34 CV, 25 kw 2cil. M506AB/M507AB/M508AB Bastidores: --- 2013 Ducati Monster 796 ABS 34 CV, 25 kw 2cil. M506AB/M508AB Bastidores: --- 2014 Ducati Monster 796 ABS 46 CV, 34 kw 2cil. M500AB/M503AB/M506AA/AB/M507AB/M508AB Bastidores: --- 2012 Ducati Monster 796 ABS 46 CV, 34 kw 2cil. M506AA/AB/M508AA/AB/M507AB Bastidores: --- 2011 Ducati Monster 796 ABS 46 CV, 34 kw 2cil. M506AB/M507AB/M508AB Bastidores: --- 2013 Ducati Monster 796 ABS 46 CV, 34 kw 2cil. M506AB/M508AB Bastidores: --- 2014 Ducati Monster 796 ABS 87 CV, 64 kw 2cil. M500AB/M503AB/M506AA/AB/M507AB/M508AB Bastidores: --- 2012 Ducati Monster 796 ABS 87 CV, 64 kw 2cil. M506AA/AB/M508AA/AB/M507AB Bastidores: --- 2011 Ducati Monster 796 ABS 87 CV, 64 kw 2cil. M506AB/M507AB/M508AB Bastidores: --- 2013 Ducati Monster 796 ABS 87 CV, 64 kw 2cil. M506AB/M508AB Bastidores: --- 2014 Ducati Monster 796 Anniversary ABS 34 CV, 25 kw 2cil. M506AB Bastidores: --- 2013 Ducati Monster 796 Anniversary ABS 46 CV, 34 kw 2cil. M506AB Bastidores: --- 2013 Ducati Monster 796 Anniversary ABS 87 CV, 64 kw 2cil. M506AB Bastidores: --- 2013 Ducati Monster 797 + Plus ABS 48 CV, 35 kw 2cil. ME35AA/MD00AA Bastidores: --- 2017-2019 Ducati Monster 797 + Plus ABS 73 CV, 54 kw 2cil. ME35AA/MD00AA Bastidores: --- 2017-2019 Ducati Monster 797 ABS 48 CV, 35 kw 2cil. ME35AA/MD00AA Bastidores: --- 2017-2021 Ducati Monster 797 ABS 73 CV, 54 kw 2cil. ME35AA/MD00AA Bastidores: --- 2017-2021 Ducati Monster 821 ABS 109 CV, 80 kw 2cil. MG35AA/MC00AA Bastidores: --- 2017 Ducati Monster 821 ABS 109 CV, 80 kw 2cil. MH00AA/MK35AA/MH00S1/4 Bastidores: --- 2018 Ducati Monster 821 ABS 109 CV, 80 kw 2cil. MH00AA/MK35AA/MK00ES/MH02ES Bastidores: --- 2021 Ducati Monster 821 ABS 109 CV, 80 kw 2cil. MH00AA/S3/S4/S6/S9/SX/MH02ES/MK00ES/MK35AA Bastidores: --- 2019 Ducati Monster 821 ABS 109 CV, 80 kw 2cil. MH00AA/S6/S8/MH02ES/MK00ES/MK35AA Bastidores: --- 2020 Ducati Monster 821 ABS 112 CV, 82 kw 2cil. M604AA/M605JA Bastidores: --- 2014-2016 Ducati Monster 821 ABS 48 CV, 35 kw 2cil. M701AA/M700FA Bastidores: --- 2014-2016 Ducati Monster 821 ABS 48 CV, 35 kw 2cil. MH00AA/MK35AA/MK00ES/MH02ES Bastidores: --- 2021 Ducati Monster 821 Dark ABS 109 CV, 80 kw 2cil. MH02ES/MK00ES Bastidores: --- 2020-2021 Ducati Monster 821 Dark ABS 112 CV, 82 kw 2cil. M604AA/M605JA Bastidores: --- 2014-2016 Ducati Monster 821 Dark ABS 48 CV, 35 kw 2cil. M701AA/M700FA Bastidores: --- 2014-2016 Ducati Monster 821 Stealth ABS 109 CV, 80 kw 2cil. MH00AA/MH02ES/MK00ES/MK35AA Bastidores: --- 2020 Ducati Monster 821 Stealth ABS 109 CV, 80 kw 2cil. MH00AA/MK35AA/MH02ES Bastidores: --- 2021 Ducati Monster 821 Stealth ABS 109 CV, 80 kw 2cil. MH00AA/S5/S9/MH02ES/MK00ES/MK35AA Bastidores: --- 2019 Ducati Monster 821 Stealth ABS 48 CV, 35 kw 2cil. MH00AA/MK35AA/MH02ES Bastidores: --- 2021 Ducati Monster 821 Stripe ABS 109 CV, 80 kw 2cil. MG35AA/MC00AA Bastidores: --- 2017 Ducati Monster 821 Stripe ABS 112 CV, 82 kw 2cil. M604AA/M605JA Bastidores: --- 2014-2016 Ducati Monster 821 Stripe ABS 48 CV, 35 kw 2cil. M701AA/M700FA Bastidores: --- 2014-2016 Ducati Monster 937 + ABS 111 CV, 81,6 kw 2cil. 1M00AA/T1/T2/T9/3M35AA Bastidores: --- 2021 Ducati Monster 937 + ABS 111 CV, 81,6 kw 2cil. 1M00AA/T5/T8/TX/3M35AA/4M00AA/T0/T5/6M35AA Bastidores: --- 2022 Ducati Monster 937 + ABS 48 CV, 35 kw 2cil. 1M00AA/T1/T2/T9/3M35AA Bastidores: --- 2021 Ducati Monster 937 + ABS 48 CV, 35 kw 2cil. 1M00AA/T5/T8/TX/3M35AA/4M00AA/T0/T5/6M35AA Bastidores: --- 2022 Ducati Monster 937 ABS 111 CV, 81,6 kw 2cil. 1M00AA/T2/T3/T6/M35AA Bastidores: --- 2021 Ducati Monster 937 ABS 111 CV, 81,6 kw 2cil. 3M35AA/1M00AA/T3/T0/4M00AA/6M35AA Bastidores: --- 2022 Ducati Monster 937 ABS 48 CV, 35 kw 2cil. 1M00AA/T2/T3/T6/M35AA Bastidores: --- 2021 Ducati Monster 937 ABS 48 CV, 35 kw 2cil. 3M35AA/1M00AA/T3/T0/4M00AA/6M35AA Bastidores: --- 2022 Ducati Multistrada 950 ABS 113 CV, 83 kw 2cil. AA05AA/AA06JA Bastidores: --- 2017 Ducati Multistrada 950 ABS 113 CV, 83 kw 2cil. AA05AA/T0/T2/T4 Bastidores: --- 2018 Ducati Multistrada 950 ABS 113 CV, 83 kw 2cil. AA07AA/AD00AA Bastidores: --- 2019 Ducati Multistrada 950 ABS 113 CV, 83 kw 2cil. AD00AA Bastidores: --- 2020 Ducati Multistrada 950 S ABS 113 CV, 83 kw 2cil. AD00AA Bastidores: --- 2020 Ducati Multistrada 950 S ABS 113 CV, 83 kw 2cil. AD00AA/T9 Bastidores: --- 2019 Ducati Multistrada 950 S SW Speichenrad ABS llanta de radios 113 CV, 83 kw 2cil. AA07AA/AD00AA Bastidores: --- 2019 Ducati Multistrada 950 S SW Speichenrad ABS llanta de radios 113 CV, 83 kw 2cil. AD00AA Bastidores: --- 2020 Ducati Multistrada 950 S Touring ABS 113 CV, 83 kw 2cil. AA07AA/AD00AA Bastidores: --- 2019 Ducati Multistrada 950 S Touring ABS 113 CV, 83 kw 2cil. AD00AA Bastidores: --- 2020 Ducati Multistrada 950 SW Speichenrad ABS llanta de radios 113 CV, 83 kw 2cil. AA05AA/T0/T3/T5 Bastidores: --- 2018 Ducati Multistrada 950 Touring ABS 113 CV, 83 kw 2cil. AA05AA Bastidores: --- 2017 Ducati Multistrada 950 Touring ABS 113 CV, 83 kw 2cil. AA05AA/T8 Bastidores: --- 2018 Ducati Scrambler 1100 Dark Pro ABS 86 CV, 63 kw 2cil. 1K00AA/P4/P9/PX/2K35AA Bastidores: --- 2022 Ducati Scrambler 1100 Dark Pro ABS 86 CV, 63 kw 2cil. 1K00AA/PX/2K35AA Bastidores: --- 2021 Ducati Scrambler 1100 Pro ABS 86 CV, 63 kw 2cil. - Bastidores: --- 2022 Ducati Scrambler 1100 Pro ABS 86 CV, 63 kw 2cil. 1K00AA Bastidores: --- 2021 Ducati Scrambler 1100 Sport Pro ABS 86 CV, 63 kw 2cil. 1K00AA Bastidores: --- 2022 Ducati Scrambler 1100 Sport Pro ABS 86 CV, 63 kw 2cil. 1K00AA/P2/P9/X/2K35AA Bastidores: --- 2021 Ducati Scrambler 1100 Tribute Pro ABS 86 CV, 63 kw 2cil. 1K00AA/P8/2K35AA Bastidores: --- 2022 Ducati Supersport 939 ABS 110 CV, 81 kw 2cil. VA00AA/VA01JA Bastidores: --- 2017 Ducati Supersport 939 ABS 110 CV, 81 kw 2cil. VA00AA/VA01JA/VC35AA Bastidores: --- 2018 Ducati Supersport 939 S ABS 110 CV, 81 kw 2cil. VA00AA/VA01JA Bastidores: --- 2017 Ducati Supersport 939 S ABS 110 CV, 81 kw 2cil. VA00AA/VA01JA/VC35AA Bastidores: --- 2018 Ducati Supersport 950 ABS 110 CV, 81 kw 2cil. 1V00AA/3V35AA Bastidores: --- 2021-2022 Ducati Supersport 950 ABS 110 CV, 81 kw 2cil. VA00AA/VA1JA/VC35AA Bastidores: --- 2019 Ducati Supersport 950 ABS 110 CV, 81 kw 2cil. VA00AA/VC35AA Bastidores: --- 2020 Ducati Supersport 950 ABS 48 CV, 35 kw 2cil. 1V00AA/3V35AA Bastidores: --- 2022 Ducati Supersport 950 S ABS 110 CV, 81 kw 2cil. 1V00AA/3V35AA Bastidores: --- 2021 Ducati Supersport 950 S ABS 110 CV, 81 kw 2cil. 1V00AA/S9/3V35AA Bastidores: --- 2022 Ducati Supersport 950 S ABS 110 CV, 81 kw 2cil. VA00AA/S2/S3/VA1JA/VC35AA Bastidores: --- 2019 Ducati Supersport 950 S ABS 110 CV, 81 kw 2cil. VA00AA/S3/VA01JA/VC35AA Bastidores: --- 2020 Ducati Supersport 950 S ABS 48 CV, 35 kw 2cil. 1V00AA/S9/3V35AA Bastidores: --- 2022 Ducati XDiavel 1260 ABS 152 CV, 112 kw 2cil. 13BKW4/GA00AA/GA01JA/GB00FA Bastidores: --- 2017 Ducati XDiavel 1260 ABS 152 CV, 112 kw 2cil. GA00AA/W5/W7/GA01JA/GB00FA Bastidores: --- 2020 Ducati XDiavel 1260 ABS 152 CV, 112 kw 2cil. GA00AA/W8/GB00FA Bastidores: --- 2019 Ducati XDiavel 1260 ABS 156 CV, 115 kw 2cil. GA00AA Bastidores: --- 2016 Ducati XDiavel 1260 ABS 156 CV, 115 kw 2cil. GA00AA/GA01JA Bastidores: --- 2016 Ducati XDiavel 1260 ABS 156 CV, 115 kw 2cil. GA00AA/W6/GA01JA/GB00FA Bastidores: --- 2018 Ducati XDiavel 1260 Black Star ABS 152 CV, 112 kw 2cil. 1G00AA/W0/W8/WX/1G02BG Bastidores: --- 2021 Ducati XDiavel 1260 Dark ABS 152 CV, 112 kw 2cil. 1G00AA/W0/1G02BG Bastidores: --- 2022 Ducati XDiavel 1260 Dark ABS 152 CV, 112 kw 2cil. 1G00AA/W0/W8/1G02BG Bastidores: --- 2021 Ducati XDiavel 1260 Nera ABS 152 CV, 112 kw 2cil. 1G00AA Bastidores: --- 2022 Ducati XDiavel 1260 S ABS 152 CV, 112 kw 2cil. 13BKW0/WX/GA00AA/GA01JA/GB00FA Bastidores: --- 2017 Ducati XDiavel 1260 S ABS 152 CV, 112 kw 2cil. 13BKW7/GA00AA/W3/W4/W6/W7/WX/GB00FA/GA01JA Bastidores: --- 2019 Ducati XDiavel 1260 S ABS 152 CV, 112 kw 2cil. 1G00AA/W5/W8/1G02BG Bastidores: --- 2021 Ducati XDiavel 1260 S ABS 152 CV, 112 kw 2cil. 1G00AA/W8/WX Bastidores: --- 2022 Ducati XDiavel 1260 S ABS 152 CV, 112 kw 2cil. GA00AA/W0/W9/GB00FA/GA01JA Bastidores: --- 2020 Ducati XDiavel 1260 S ABS 156 CV, 115 kw 2cil. 13BKW5/GA00AA/W0/W2/W7/W8/W9/GB00FA/GA01JA Bastidores: --- 2018 Ducati XDiavel 1260 S ABS 156 CV, 115 kw 2cil. GA00AA Bastidores: --- 2016 Ducati XDiavel 1260 S ABS 156 CV, 115 kw 2cil. GA00AA/GA01JA Bastidores: --- 2016
Reference 760.11.01
In stock 10 Items
Data sheet
INSIDE DIAMETER 90MM VERSION FLOATING QUANTITY OF HOLES 5 STUFFED 10 MM EXTERNAL DIAMETER 320MM CIRCLE MEASUREMENT 90MM HOLE DIAMETER 8.5 MM THICKNESS DMM
