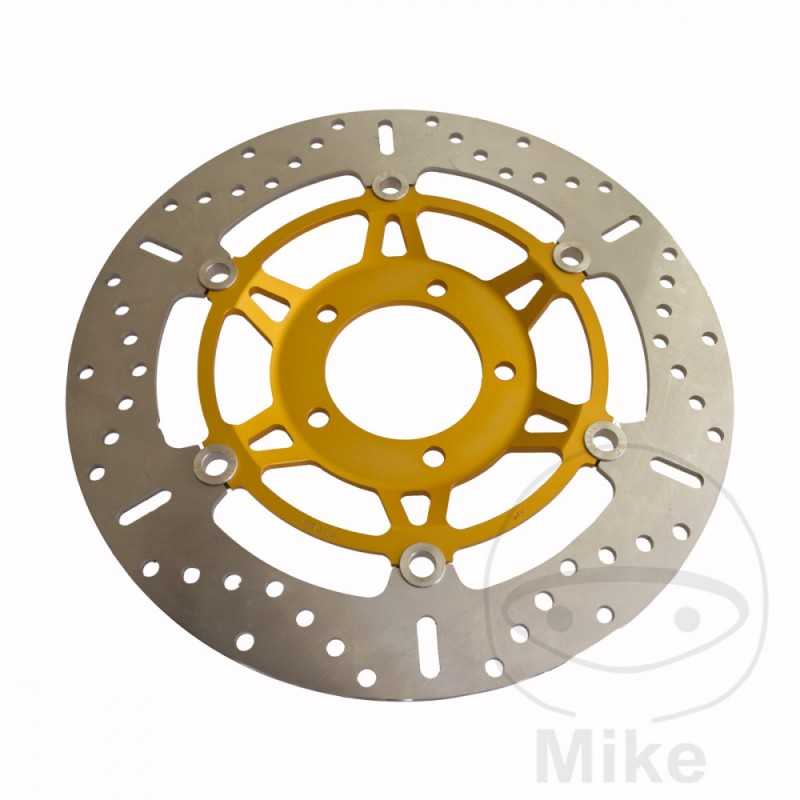

EBC Brake disc stainless steel X / XC 760.11.00

EBC X / XC series: fully floating brake discs for the front wheel

These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.

The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new ´´X´´ and ´´XC´´ series is reduced by 5-10% more thanks to the 6-rivet system with a light inner ring, which in turn is an improvement over discs conventional brake.

The new brake discs are equipped with EBC's unique and patented SD system, whose square rivets in the brake disc recesses under the heat generated during braking allow the outer and inner ring to expand without affecting the rivet connection.

Such deterioration occurs when the brake disc heats up due to heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem that causes 100% of brake disc defects caused by disc deformations and vibrations.

What is the SD system? This is EBC's new square rivet system. With this system, deformation of the brake disc is completely prevented, the service life of the brake disc is increased, and the durability of the braking effect is improved.
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 78.2MM
CIRCLE SIZE: 100 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
THICKNESS: 4.5MM
PADDING: 17.8MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Triumph Speed Triple 1050 130/98 CV, 96/72 kw 3cil. 515NJ Bastidores: 1 - 210445-1 - 2005
Triumph Speed Triple 1050 130/98 CV, 96/72 kw 3cil. 515NJ Bastidores: 1 --1 - 2006
Triumph Speed Triple 1050 132 CV, 97 kw 3cil. 515NJ Bastidores: 1 --1 - 333178 2007
Triumph Speed Triple 1050 98 CV, 72 kw 3cil. 515NJ Bastidores: 1 --1 - 333178 2007
Triumph Speed Triple 1050 R ABS 135/98 CV, 99/72 kw 3cil. 515NV Bastidores: SMTTPN135G --SMTTPN135G - 2012-2013
Triumph Tiger 1050 115/98 CV, 85/72 kw 3cil. 115NG Bastidores: SMTTG7455S --SMTTG7455S - 2007-2010
Triumph Tiger 1050 ABS 115/98 CV, 85/72 kw 3cil. 115NG Bastidores: SMTTG7465S --SMTTG7465S - 2007-2011
Triumph Tiger 1050 SE 115/98 CV, 85/72 kw 3cil. 115NG Bastidores: SMTTG7455S --SMTTG7455S - 2010-2012
Triumph Tiger 1050 SE ABS 115/98 CV, 85/72 kw 3cil. 115NG Bastidores: SMTTG7465S --SMTTG7465S - 2011-2013
Triumph Tiger 1050 Sport ABS 125 CV, 92 kw 3cil. 115NG Bastidores: SMTTG7475F --SMTTG7475F - 2013-2015
Triumph Tiger 1050 Sport ABS 125 CV, 92 kw 3cil. 115NG Bastidores: SMTTG7475F --SMTTG7475F - 750469 2016
Triumph Tiger 1050 Sport ABS 126 CV, 93 kw 3cil. NH01 Bastidores: 1 - 750470-1 - 2016
Triumph Tiger 1050 Sport ABS 126 CV, 93 kw 3cil. NH01 Bastidores: 1 --1 - 2017-2018
Triumph Tiger 1050 Sport ABS 126 CV, 93 kw 3cil. NH01A Bastidores: 1 --1 - 2018-2021
