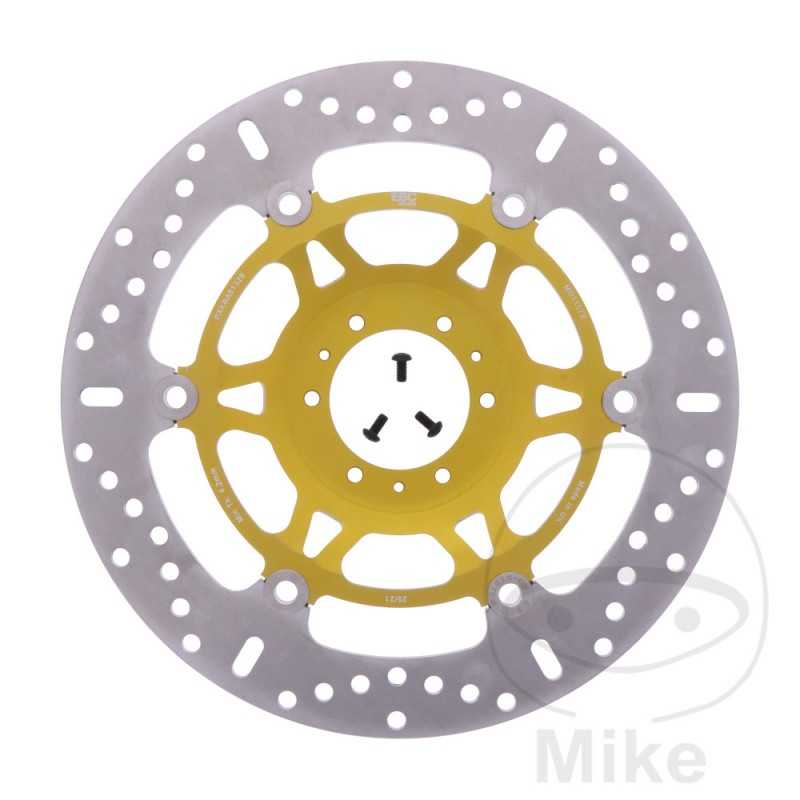

EBC Brake disc stainless steel X / XC 760.09.84

EBC X / XC series: fully floating brake discs for the front wheel

These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.

The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.

The new rotors are equipped with EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.

Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system prevents this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.

What is the SD system? It is the new square riveting system from EBC. This system completely prevents distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTER DIAMETER: 296MM
INSIDE DIAMETER: 62.2MM
CIRCLE SIZE: 78 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.3 MM
thickness: 5mm
PADDING: 17.5MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA VFR 800 109 CV, 80 KW 4CIL. RC46A 6 BASTIDORES: JH2 RC46A-6M800001-JH2 RC46A-6M999999 2006-2007
HONDA VFR 800 109 CV, 80 KW 4CIL. RC46A 8 BASTIDORES: JH2 RC46A-8K010001-- 2008
HONDA VFR 800 109 CV, 80 KW 4CIL. RC46A 8 BASTIDORES: JH2 RC46A-8M000001-- 2008
HONDA VFR 800 109 CV, 80 KW 4CIL. RC46A 9 BASTIDORES: --- 2009-2010
HONDA VFR 800 A ABS 109 CV, 80 KW 4CIL. RC46C 2 BASTIDORES: JH2 RC46C-2M400001-JH2 RC46C-2M499999 2002
HONDA VFR 800 A ABS 109 CV, 80 KW 4CIL. RC46C 3 BASTIDORES: JH2 RC46C-3M500001-JH2 RC46C-3M599999 2003
HONDA VFR 800 A ABS 109 CV, 80 KW 4CIL. RC46C 4 BASTIDORES: JH2 RC46C-4M600001-JH2 RC46C-4M699999 2004
HONDA VFR 800 A ABS 109 CV, 80 KW 4CIL. RC46C 5 BASTIDORES: JH2 RC46C-5M700001-- 2005
HONDA VFR 800 A ABS 109 CV, 80 KW 4CIL. RC46C 6 BASTIDORES: JH2 RC46C-6M800001-JH2 RC46C-6M899999 2006-2007
HONDA VFR 800 A ABS 109 CV, 80 KW 4CIL. RC46C 8 BASTIDORES: JH2 RC46C-8K010001-- 2008
HONDA VFR 800 A ABS 109 CV, 80 KW 4CIL. RC46C 8 BASTIDORES: JH2 RC46C-8M000001-- 2008
HONDA VFR 800 A ABS 109 CV, 80 KW 4CIL. RC46C 9 BASTIDORES: --- 2009-2013
HONDA VFR 800 X CROSSRUNNER ABS 102 CV, 75 KW 2CIL. RC60A B BASTIDORES: JH2 RC60A-BK000001-JH2 RC60A-BK099999 2011
HONDA VFR 800 X CROSSRUNNER ABS 102 CV, 75 KW 2CIL. RC60A C BASTIDORES: JH2 RC60A-CK100001-JH2 RC60A-CK199999 2012
HONDA VFR 800 X CROSSRUNNER ABS 102 CV, 75 KW 2CIL. RC60A D BASTIDORES: JH2 RC60A-DK200001-- 2013-2014
HONDA XL 1000 VA VARADERO ABS 94 CV, 69 KW 2CIL. SD02C 4 BASTIDORES: VTM SD02C henceforth4E500001-VTM SD02C henceforth4E599999 2004
HONDA XL 1000 VA VARADERO ABS 94 CV, 69 KW 2CIL. SD02C 5 BASTIDORES: VTM SD02C henceforth5E510001-- 2005
HONDA XL 1000 VA VARADERO ABS 94 CV, 69 KW 2CIL. SD02C 6 BASTIDORES: VTM SD02C henceforth6E810001-- 2006
HONDA XL 1000 VA VARADERO ABS 94 CV, 69 KW 2CIL. SD02C 7 BASTIDORES: VTM SD02C henceforth7E820001-VTM SD02C henceforth7E829999 2007
HONDA XL 1000 VA VARADERO ABS 94 CV, 69 KW 2CIL. SD02C 8 BASTIDORES: VTM SD02C henceforth8E830001-VTM SD02C henceforth8E839999 2008
HONDA XL 1000 VA VARADERO ABS 94 CV, 69 KW 2CIL. SD02C 9 BASTIDORES: VTM SD02C-9E840001-VTM SD02C-9E849999 2009
HONDA XL 1000 VA VARADERO ABS 94 CV, 69 KW 2CIL. SD02C A BASTIDORES: VTM SD02C-AE850001-- 2010
HONDA XL 1000 VA VARADERO ABS 94 CV, 69 KW 2CIL. SD02D 4 BASTIDORES: VTM SD02D henceforth4E000001-VTM SD02D henceforth4E099999 2004
HONDA XL 1000 VA VARADERO ABS 94 CV, 69 KW 2CIL. SD02D 5 BASTIDORES: VTM SD02D henceforth5E000001-- 2005
HONDA XL 1000 VA VARADERO ABS 94 CV, 69 KW 2CIL. SD02D 6 BASTIDORES: VTM SD02D henceforth6E000001-- 2006
HONDA XL 1000 VA VARADERO ABS 94 CV, 69 KW 2CIL. SD03B B BASTIDORES: ZDC SD03B-BF010001-- 2011-2013
