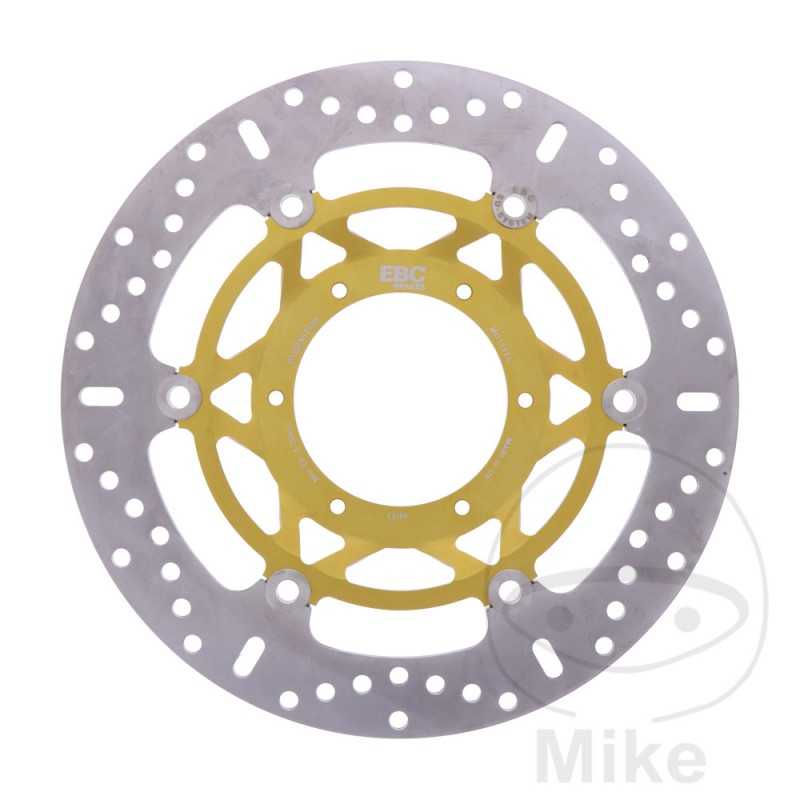

EBC Brake disc stainless steel X / XC 760.08.85

EBC X / XC series: fully floating brake discs for the front wheel

These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.

The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.

The new rotors are equipped with EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.

Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system prevents this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.

What is the SD system? It is the new square riveting system from EBC. This system completely prevents distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTER DIAMETER: 296MM
INSIDE DIAMETER: 94.2MM
CIRCLE SIZE: 110 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.3 MM
THICKNESS: 4.7MM
FILLING: 12.5MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CB 900 F HORNET 109 CV, 80 KW 4CIL. SC48B 2 BASTIDORES: JH2 SC48B-2M000001-JH2 SC48B-2M099999 2002
HONDA CB 900 F HORNET 109 CV, 80 KW 4CIL. SC48B 3 BASTIDORES: JH2 SC48B-3M100001-JH2 SC48B-3M199999 2003
HONDA CB 900 F HORNET 109 CV, 80 KW 4CIL. SC48B 4 BASTIDORES: JH2 SC48B-4M200001-JH2 SC48B-4M299999 2004
HONDA CB 900 F HORNET 109 CV, 80 KW 4CIL. SC48B 5 BASTIDORES: JH2 SC48B-5M300001-JH2 SC48B-5M399999 2005-2006
HONDA CBR 600 F 109 CV, 80 KW 4CIL. PC35F 1 BASTIDORES: JH2 PC35F-1M200001-JH2 PC35F-1M299999 2001
HONDA CBR 600 F 109 CV, 80 KW 4CIL. PC35F 2 BASTIDORES: JH2 PC35F-2M300001-JH2 PC35F-2M399999 2002
HONDA CBR 600 F 109 CV, 80 KW 4CIL. PC35F 3 BASTIDORES: JH2 PC35F-3M400001-JH2 PC35F-3M499999 2003
HONDA CBR 600 F 109 CV, 80 KW 4CIL. PC35F 4 BASTIDORES: JH2 PC35F-4M500001-- 2004
HONDA CBR 600 F 109 CV, 80 KW 4CIL. PC35F 5 BASTIDORES: JH2 PC35F-5M600001-JH2 PC35F-5M699999 2005
HONDA CBR 600 F 109 CV, 80 KW 4CIL. PC35F 6 BASTIDORES: JH2 PC35F-6M700001-- 2006-2007
HONDA CBR 600 F 34 CV, 25 KW 4CIL. PC35D 1 BASTIDORES: JH2 PC35D-1M200001-JH2 PC35D-1M299999 2001
HONDA CBR 600 F 34 CV, 25 KW 4CIL. PC35D 2 BASTIDORES: JH2 PC35D-2M300001-JH2 PC35D-2M399999 2002
HONDA CBR 600 F 34 CV, 25 KW 4CIL. PC35D 3 BASTIDORES: JH2 PC35D-3M400001-JH2 PC35D-3M499999 2003
HONDA CBR 600 FR ROSSI 109 CV, 80 KW 4CIL. PC35H 1 BASTIDORES: JH2 PC35H-1M250001-JH2 PC35H-1M299999 2001
HONDA CBR 600 FR ROSSI 109 CV, 80 KW 4CIL. PC35H 2 BASTIDORES: JH2 PC35H-2M310001-JH2 PC35H-2M319999 2002
HONDA CBR 600 FS SPORT 109 CV, 80 KW 4CIL. PC35H 1 BASTIDORES: JH2 PC35H-1M200001-JH2 PC35H-1M249999 2001
HONDA CBR 600 FS SPORT 109 CV, 80 KW 4CIL. PC35H 2 BASTIDORES: JH2 PC35H-2M300001-JH2 PC35H-2M309999 2002
HONDA VTX 1800 C 107/97 CV, 79/71 KW 2CIL. SC46A 2 BASTIDORES: 1HF SC46A-2A000001-1HF SC46A-2A099999 2001-2002
HONDA VTX 1800 C 107/97 CV, 79/71 KW 2CIL. SC46A 3 BASTIDORES: 1HF SC46A-3A100001-1HF SC46A-3A199999 2003
HONDA VTX 1800 C 107/97 CV, 79/71 KW 2CIL. SC46A 4 BASTIDORES: 1HF SC46A-4A200001-1HF SC46A-4A299999 2004
HONDA VTX 1800 C1 107/97 CV, 79/71 KW 2CIL. SC46A 5 BASTIDORES: 1HF SC46A-5A300001-1HF SC46A-5A399999 2005-2006
